SINOMACH CHANGLIN YZK12HD road roller parts catalog 11

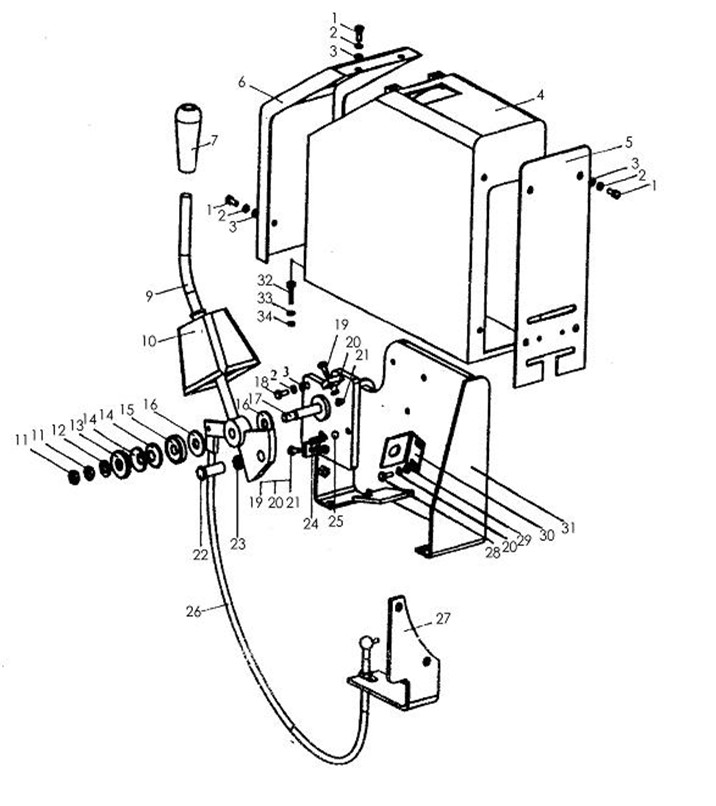

YZ14HD.19.10 操纵系统 Operating System
YZ14HD.19.10 操纵系统 Operating System
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
1 |
B-G057830-00137 |
螺栓M8x16ZnD |
Bolt |
8 |
|
2 |
B-G000930-00017 |
垫圈8 |
Washer |
10 |
|
3 |
B-G000950-00019 |
垫圈8 |
Washer |
8 |
|
4 |
YZ14H.19.1.3 |
操纵盒 |
Control box |
1 |
|
5 |
YZ14H.19.1-2 |
后盖板 |
Rear cover board |
1 |
|
6 |
YZ14HD.19.10.1 |
前盖板 |
Front cover board |
1 |
|
7 |
YZ18F.15-7 |
换向手柄 |
Control hand lever |
1 |
|
9 |
YZ14HD.19.10.2.1 |
操纵杆 |
Control bar |
1 |
|
10 |
YZ14H.19.1-1 |
防尘罩 |
Dust cap |
1 |
|
11 |
B-G061730-00004 |
螺母M12x1.5ZnD |
Nut |
2 |
|
12 |
B-G020490-00003 |
垫圈12 |
Washer |
1 |
|
13 |
YZ14H.19.1.2-4 |
压板 |
Plate |
1 |
|
14 |
B-G019720-00004 |
蝶簧31.5×16.3×1.75×2.45 |
Papilionaceous spring |
1 |
|
15 |
YZ14H.19.1.2-3 |
压板 |
Plate |
1 |
|
16 |
YZ14H.19.1.2-2 |
垫圈 |
Washer |
2 |
|
17 |
YZ14HD.19.10.2.2 |
板 |
Plate |
1 |
|
18 |
B-G057830-00143 |
螺栓M8x25ZnD |
Bolt |
3 |
|
19 |
B-G057830-00132 |
螺栓M6x25ZnD |
Bolt |
2 |
|
20 |
B-G000930-00015 |
垫圈6 |
Washer |
8 |
|
21 |
B-G000410-00017 |
螺母M6ZnD |
Nut |
2 |
|
22 |
YZ14H.19.1.2-5 |
螺栓 |
Bolt |
1 |
|
23 |
B-G061730-00017 |
螺母M16x1.5ZnD |
Nut |
1 |
|
24 |
YZ14H.19.1.2-6 |
弹簧 |
Spring |
1 |
|
25 |
B-G003080-00004 |
钢球5.0000-G100-b |
Ball |
1 |
|
26 |
YZ14HD.19.10. 5 |
软轴 |
Flexible shaft |
1 |
|
27 |
YZ14HD.19.10. 4 |
支架 |
Support |
1 |
|
28 |
B-G057830-00130 |
螺栓M6x16ZnD |
Bolt |
2 |
|
29 |
B-G00097B-00021 |
垫圈6 ZnD |
Washer |
2 |
YZ14HD.19.10 操纵系统 Operating System
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
30 |
YZ14H.19.1. 2-1 |
支架 |
Support seat |
1 |
|
31 |
YZ14HD.19.10. 3 |
支架 |
Support |
1 |
|
32 |
B-G057820-00016 |
螺栓M10x55ZnD |
Bolt |
8 |
|
33 |
B-G000930-00001 |
垫圈10 |
Washer |
8 |
|
34 |
B-G000950-00002 |
垫圈10ZnD |
Washer |
8 |
