SINOMACH CHANGLIN ZL60H wheel loader parts catalog 04
Z60F.6.1

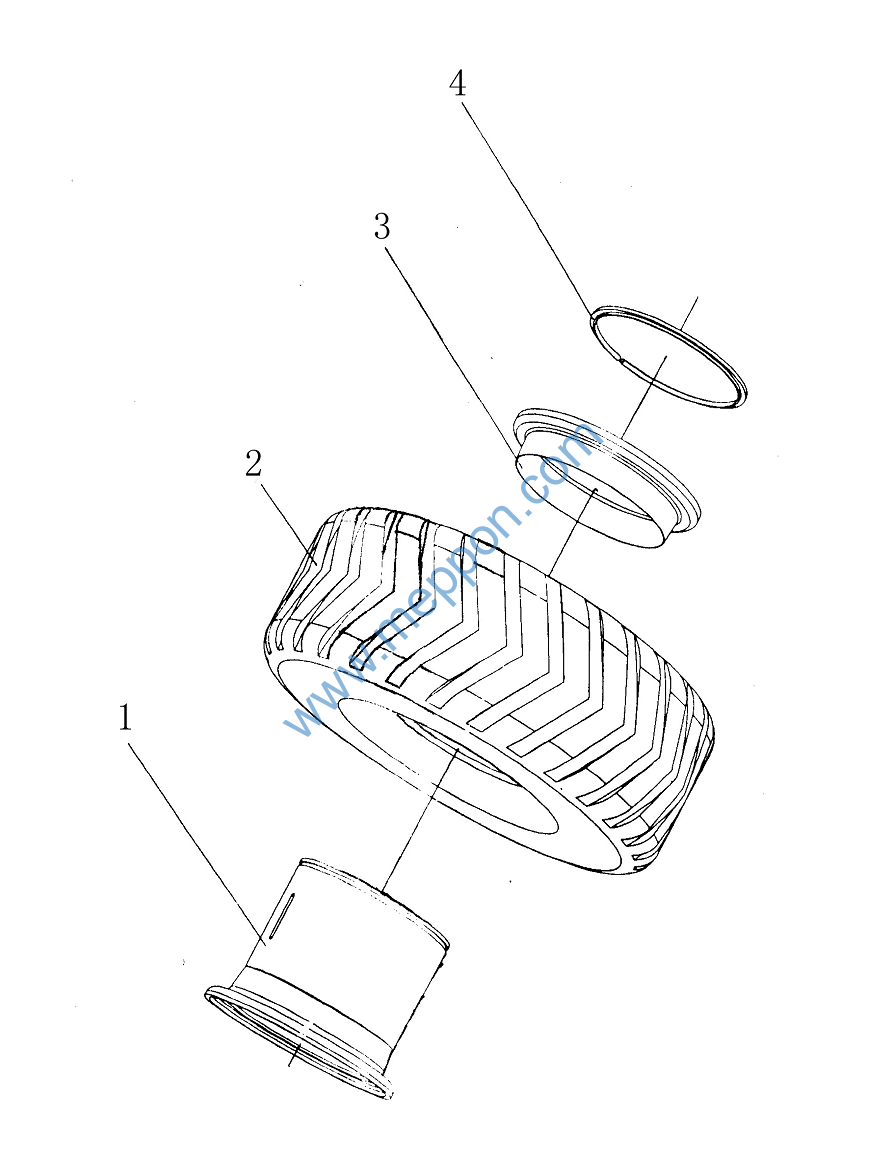

车 轮 Wheel Ass’y
Z60F.6.1
车 轮 Wheel Ass’y
|
序号 No. |
零 Part No. |
名
Part Name |
数量 Q’ty |
|
1 |
Z60F.6.1-1 |
轮辋体—轮辐组件 Rim-spoke ass‘y |
1 |
|
2 |
W-14-00013 |
轮胎23.5-25-16PR L-3 Tire |
1 |
|
3 |
Z60F.6.1-3 |
挡座圈 Snap ring |
1 |
|
4 |
Z60F.6.1-2 |
锁圈 Lock ring |
1 |

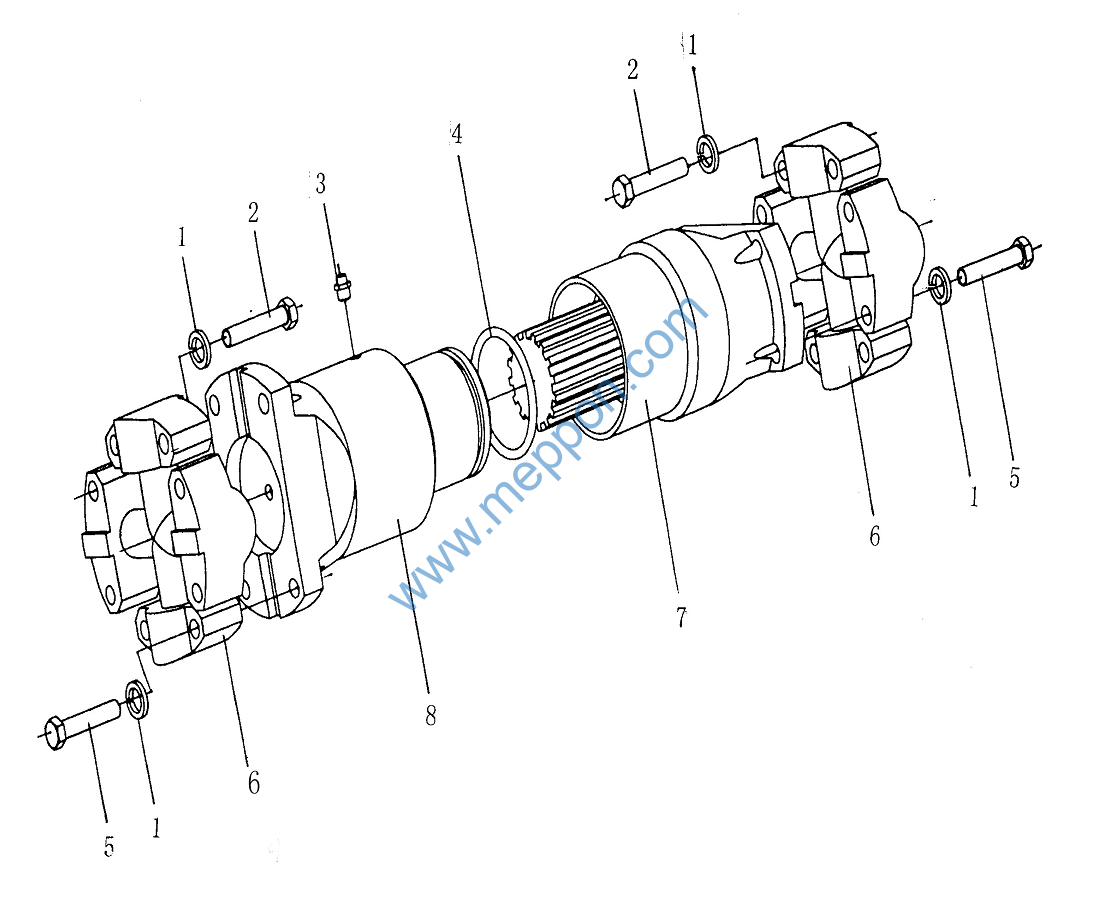

Z60F.7A 后传动轴 Rear Drive Shaft
Z60F.7A 后传动轴 Rear Drive Shaft
|
序号 No. |
零 Part No. |
名
Part Name |
数量 Q‘ty |
|
1 |
Z60F.5-5 |
垫圈 Washer |
8 |
|
2 |
Z60F.5-1 |
螺栓 Bolt |
4 |
|
3 |
B-J07940A-00001 |
油杯M10×1 Crease fitting |
1 |
|
4 |
B-Q020710-00105 |
O形圈90×5.7 O-ring |
1 |
|
5 |
Y2-20VNF-2A |
螺栓 Bolt |
8 |
|
6 |
2V7153 |
万向节总成 Cross shaft ass‘y |
1 |
|
7 |
1A14003-3 |
防尘套 Sleeve |
1 |
|
花键轴叉 Spline shaft |
1 |
||
|
8 |
花键轴 Sppine shaft |
1 |
|
|
85Z.01.3.2-2 |
防尘盖 Dust cover |
1 |
|
|
9 |
万向节总成 Cross shaft ass‘y |
1 |
|
|
|

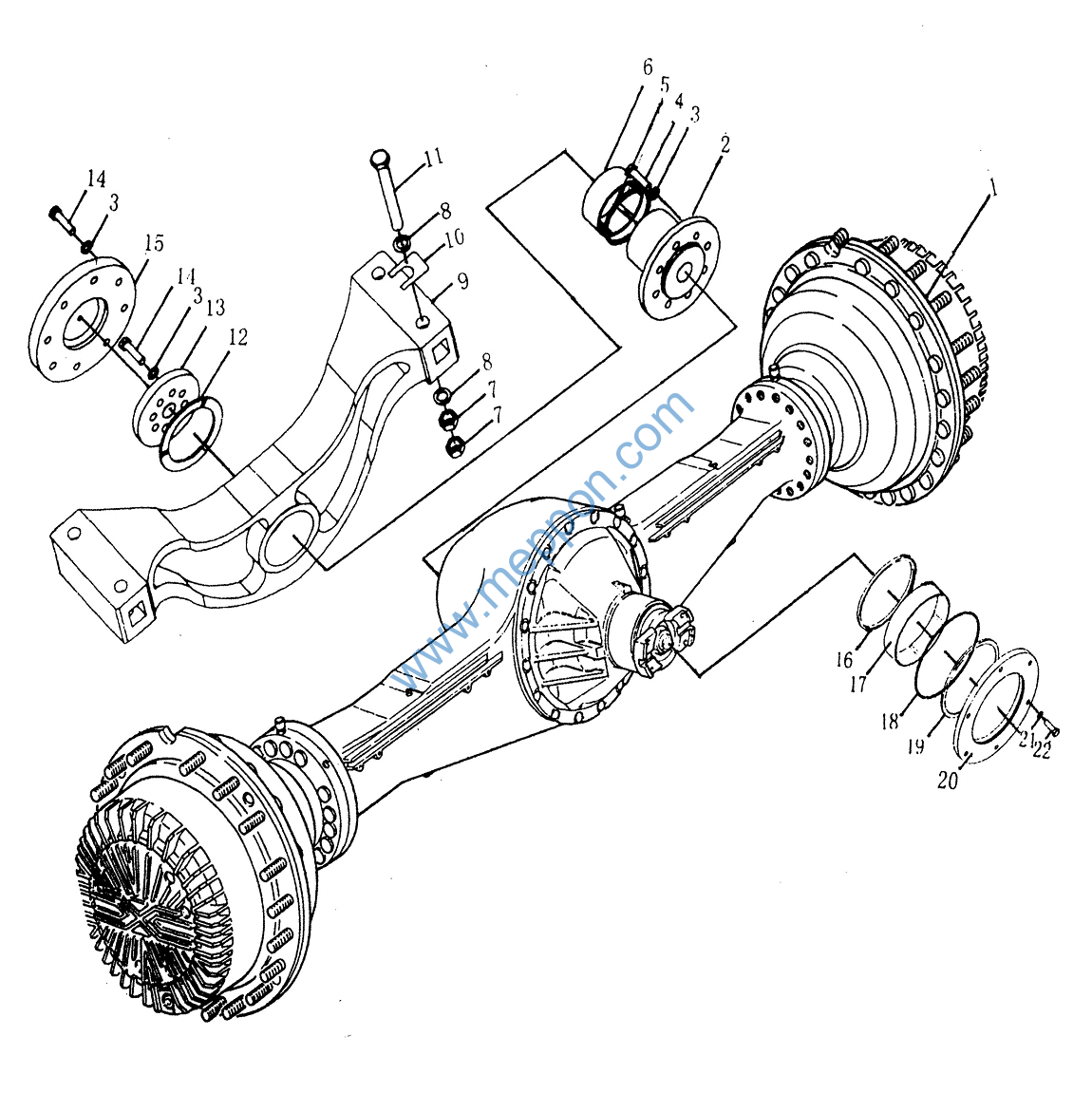

Z60F.8 后 桥 Rear Axle
Z60H.8 后 桥 Rear Axle
|
序号 No. |
零 Part No. |
名
Part Name |
数量Q’ty |
|
1 |
W-03-00010 |
后桥|3.28694.3 Rear axle |
1 |
|
2 |
Z60F.8-6 |
后桥支撑 Rear axle support |
1 |
|
3 |
B-Q020490-00007 |
垫圈16 Washer |
24 |
|
4 |
B-G057860-00080 |
螺栓M16×1.5×40-10.9ZnD Bolt |
8 |
|
5 |
B-Q020790-00001 |
YQ型密封圈d120 Yx-ring |
1 |
|
6 |
Z60F.8-5A |
后衬套 Rear bushing |
1 |
|
7 |
B-G061710-00020 |
螺母 M27×2-10ZnD Nut |
8 |
|
8 |
B-Q020490-00017 |
垫圈27 Washer |
8 |
|
9 |
Z60F.8-1 |
摆架 Walking beam |
1 |
|
10 |
Z60F.8-11 |
调整垫 Spacer |
1组 |
|
11 |
B-G057850-00044 |
螺栓M27×2×220-10.9ZnD Bolt |
4 |
|
12 |
Z60F.8-4A |
止推垫 Thrust spacer |
2 |
|
13 |
Z60F.8-3 |
止推板 Thrust Plate |
1 |
|
14 |
B-G057820-00082 |
螺栓M16×60-10.9ZnD Bolt |
16 |
|
15 |
Z60F.8-2 |
盖板 Cover |
1 |
|
16 |
Z60F.8-7 |
密封圈 Ring |
1 |
|
17 |
Z60F.8-8A |
前衬套 Front bushing |
1 |
|
18 |
B-Q020520-00001 |
O形圈229.3×5.7 O-ring |
1 |
|
19 |
Z60F.8-10 |
密封圈 Ring |
1 |
|
20 |
Z60F.8-9 |
前座圈 Front seat ring |
1 |
|
21 |
B-Q020490-00003 |
垫圈12 Washer |
6 |
|
22 |
B-G057830-00040 |
螺栓M12×40-10.9ZnD Blot |
6 |
