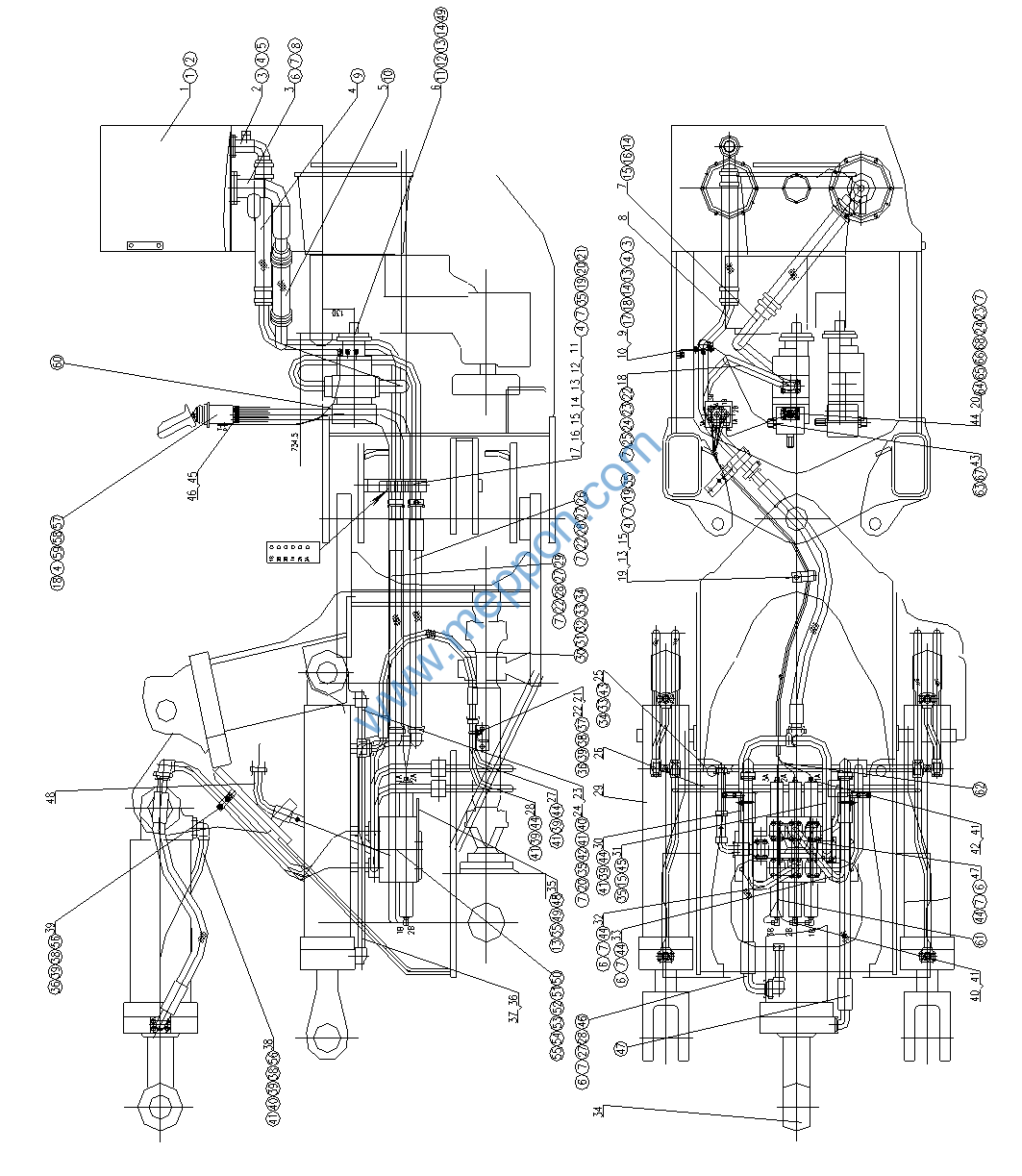

序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

1

Z60H.14.1

油箱

Hydraulic tank

1

2

Z60H.14.2

油箱回油管

Tube

1

3

Z60H.14.3

油箱出油管

Tube

1

4

Z60H.14-1

低压胶管

Hose

1

5

Z60F.14-13

低压胶管

Hose

1

6

Z60H.10-3

纸垫

Gasket

1

7

Z60H.14.4

油泵进油管

Tube

1

8

Z60H.14.5

油管

Tube

1

9

Z60F.14-2

板

Plate

1

10

Z60F.14-3

油管夹

Tube clip

1

11

Z60F.14-4

板

Plate

1

12

Z60F.14-5

板

Plate

1

13

Z60F.14-6

板

Plate

2

14

Z60F.14-7

油管夹

Tube clip

2

15

Z60F.14-8

油管夹

Tube clip

4

16

Z60F.14-9

套管

Bushing

2

17

Z60F.14-10

套管

Bushing

4

18

Z60H.14.6

油泵出油管

Tube

1

19

Z60F.14-12

板

Plate

2

20

Z60H.14.16

先导泵出油管

Tube

1

21

Z60F.14.10

支板

Plate

1

22

Z60F.14.11

支板

Plate

1

23

Z60F.14.14

油管

Tube

1

24

Z60F.14.15

油管

Tube

1

25

Z60H.14.7

油管

Tube

1

26

Z60H.14.8

油管

Tube

1

27

Z60H.14.9

油管

Tube

1

28

Z60H.14.10

油管

Tube

1

29

Z60F.14.20

动臂油缸

Lift arm cylinder

2

30

Z60H.14B.1

多路阀进油管

Tube

1

31

Z60H.14.12

多路阀回油管

Tube

1

序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

32

Z60H.14.13

油管

Tube

1

33

Z60H.14.14

油管

Tube

1

34

Z60F.14.22

转斗油缸

Dump cylinder

1

35

Z50G.14-11

连接板

Plate

1

36

Z60F.14.18

油管

Tube

1

37

Z60F.14.19

油管

Tube

1

38

Z60F.14.21

油管

Tube

1

39

Z50G.14-14

板

Plate

2

40

Z60H.14.15

接头

Joint

3

41

Z50G.14-12

O形圈

O-ring

6

42

Z60H.14-2

接头

Joint

3

43

Z60H.14-3

接头

Joint

1

44

Z60H.14-4

阀座

Seat

1

45

Z60H.14B-1

接头

Joint

8

46

Z50G.14A-2

O形圈

O-ring

8

47

Z50G.14A-6

盖板

Plate

2

48

Z60H.14B.2

软管总成

Hose

1

以下件为图中带○的序号 Following is serial number in the chart with ○

1

B-G057830-00073

螺栓M16x40ZnD

Bolt

4

2

B-Q020490-00007

垫圈16

Washer

4

3

B-G057830-00131

螺栓M6x20ZnD

Bolt

6

4

B-G000930-00015

垫圈6

Washer

14

5

B-Q020710-00082

O形圈60×3.1

O-ring

1

6

B-G057830-00009

螺栓M10X30-10.9ZnD

Bolt

36

7

B-G000930-00001

垫圈10

Washer

80

8

B-Q020710-00009

O形圈110X3.1

O-ring

1

9

B-J088700-00018

喉箍d70

Clamp

4

10

B-J088700-00020

喉箍d90

Clamp

4

11

W-01-00090

油泵P257-G80367ZCA6/P124-G20NIG

Gear pump

1

12

B-G008980-00014

螺柱M12×35-10.9ZnD

Bolt

4

序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

13

B-G00097B-00004

垫圈12

Washer

10

14

B-G000930-00003

垫圈12

Washer

10

15

B-G057830-00033

螺栓M12X30-10.9ZnD

Bolt

8

16

B-Q020710-00085

O形圈65×3.1

O-ring

1

17

B-G057830-00030

螺栓M12X25ZnD

Bolt

3

18

B-G061700-00034

螺母M6ZnD

Nut

6

19

B-G057820-00158

螺栓M6x60ZnD

Bolt

4

20

B-G057830-00034

螺栓M12x30ZnD

Bolt

4

21

B-G057820-00001

螺栓M10x100ZnD

Bolt

2

22

B-G057830-00011

螺栓M10X35-10.9ZnD

Bolt

20

23

B-J010000-00002

螺塞M14X1.5

Plug

2

24

B-J010020-00003

垫圈14

Washer

2

25

B-Q020710-00072

O形圈50×3.5

O-ring

1

26

W-16-00511

软管总成|F7711515202020-1200

Hose

1

27

W-15-00108

O形圈|2-222N552-90

O-ring

8

28

B-Q020140-00003

分离式法兰A44.1/21

Flange

16

29

W-16-00510

软管总成|F4811515202020-1200

Hose

1

30

W-16-00509

软管总成|F4611519121212-1050

Hose

4

31

B-Q020140-00001

分离式法兰A32.6/35

Flange

16

32

W-15-00107

O形圈|2-214N552-90

O-ring

8

33

B-G057830-00145

螺栓M8X30-10.9ZnD

Bolt

40

34

B-G000930-00017

垫圈8

Washer

40

35

B-Q020490-00003

垫圈12

Washer

13

36

B-G057830-00006

螺栓M10X25ZnD

Bolt

8

37

B-Q020120-00003

U形管夹A28

U-clip

4

38

B-G061760-00001

螺母M10X1.25ZnD

Nut

16

39

B-Q020490-00001

垫圈10

Washer

38

40

B-Q020710-00065

O形圈41×3.5

O-ring

5

41

B-G057820-00017

螺栓M10X60-10.9ZnD

Bolt

24

42

B-G057820-00014

螺栓M10x50-10.9ZnD

Bolt

8

43

B-Q020710-00057

O形圈36×3.5

O-ring

2

序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

44

B-Q020710-00071

O形圈48×3.5

O-ring

7

45

B-Q020710-00077

O形圈54×3.5

O-ring

1

46

W-16-00139

软管总成|F7711519202020-980

Hose

1

47

W-16-00138

软管总成|F7711519202020-1150

Hose

1

48

B-G057830-00043

螺栓M12x45ZnD

Bolt

4

49

B-G061700-00007

螺母M12ZnD

Nut

8

50

W-07-00169

多路换向阀|7130-C79

Control valve

1

51

B-G057820-00072

螺栓M16x115-10.9ZnD

Bolt

2

52

B-Q020490-00007

垫圈16

Washer

3

53

B-G061700-00014

螺母M16ZnD

Nut

3

54

B-G000930-00006

垫圈16

Washer

3

55

B-G057820-00091

螺栓M16x80-10.9ZnD

Bolt

1

56

B-Q020120-00004

U形管夹A34

U-clip

3

57

W-07-00170

先导阀|606-1021-1213

Precursor valve

1

58

B-Q020490-00021

垫圈6

Washer

4

59

B-G057830-00132

螺栓M6x25ZnD

Bolt

4

60

W-16-00606

软管总成|F481CACF101005-1100

Hose

1

61

W-16-00279

软管总成|F481CACA101005-3200

Hose

3

62

W-16-00278

软管总成|F481CACA101005-2700

Hose

3

63

W-16-00284

软管总成|F481CACF151508-800

Hose

1

64

W-07-00111

溢流阀|RVDA-10-N-S-0-501

Valve

1

65

W-16-00605

软管总成|F481CACF101005-1300

Hose

1

66

B-G057820-00194

螺栓M10x80ZnD

Bolt

4

67

B-J010020-00007

垫圈22

Washer

1

68

B-Q020710-00050

O形圈32×3.1

O-ring

2

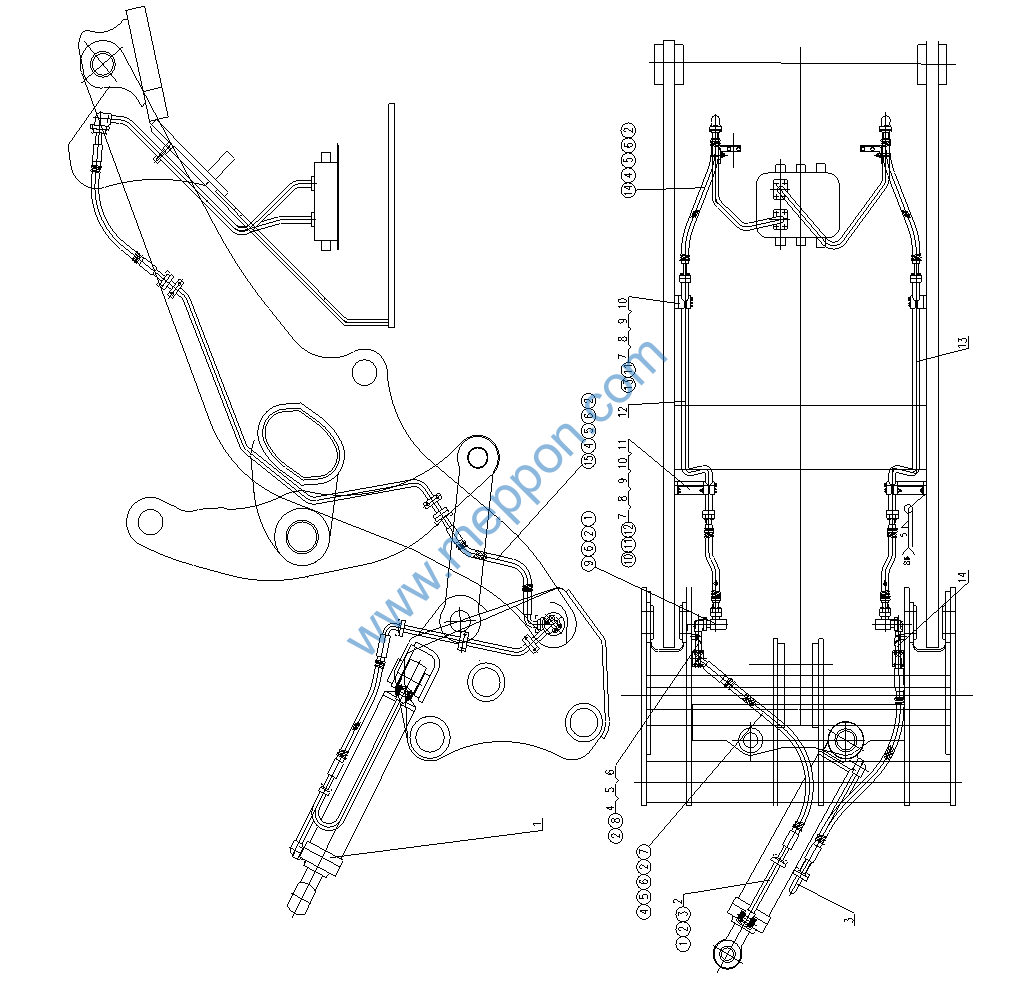

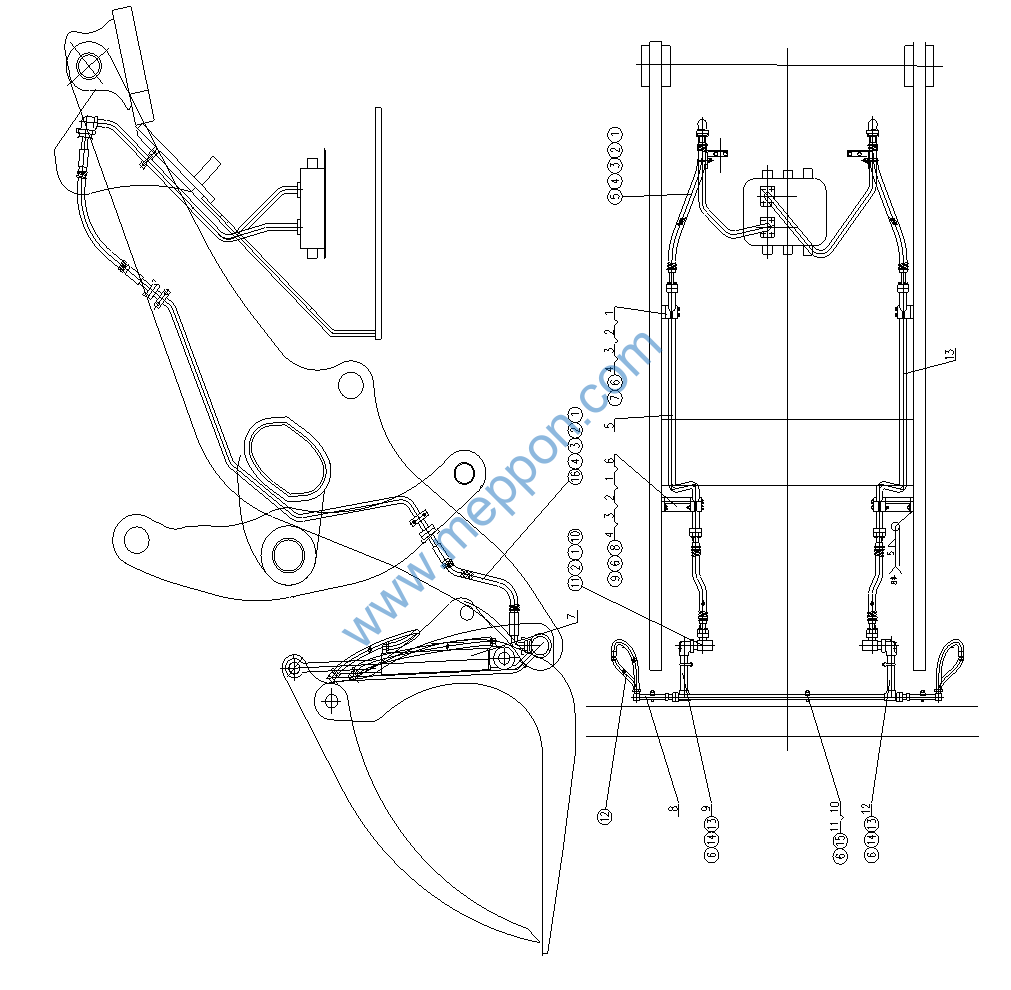

序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

1

Z50B.14A-1

板

Plate

4

2

Z50B.14A-2

衬套

Bushing

8

3

Z50B.14A-3

橡胶压板

Plate

8

4

Z50B.14A-7

座

Seat

4

5

Z60F.G1.2.5

油管

Tube

1

6

Z50B.14A.9

支架

Support plate

2

7

Z60F.G2.3.1

夹爪油缸

Clamp cylinder

2

8

Z60F.G2.3.4

油管

Tube

4

9

Z60F.G2.3.2

油管

Tube

1

10

Z40E.14A-4

垫块

Seat

3

11

Z40E.14A-5

压板

plate

3

12

Z60F.G2.3.3

油管

Tube

1

13

Z60F.G1.2.9

油管

Tube

1

以下件为图中带○的序号 Following is serial number in the chart with ○

1

B-G000930-00017

垫圈8

Washer

8

2

B-G057830-00145

螺栓M8X30-10.9ZnD

Bolt

56

3

B-Q020140-00001

分离式法兰A32.6/35

Flange

12

4

B-Q020710-00049

O形圈31X3.5

O-ring

6

5

B-Q020560-00001

软管总成19-1000

Hose ass’y

2

6

B-Q020490-00001

垫圈10

Washer

19

7

B-G057820-00023

螺栓M10x70ZnD

Bolt

4

8

B-G057830-00006

螺栓M10X25ZnD

Bolt

4

9

B-G057820-00024

螺栓M10x75ZnD

Bolt

4

10

B-Q020710-00057

O形圈36X3.5

O-ring

2

11

W-15-00059

旋转接头|ZF-17

Eddy Joint

2

12

B-Q020290-00007

软管总成16-700

Hose ass’y

4

13

B-Q020120-00003

U形管夹A28

U-clip

2

14

B-G061760-00001

螺母M10X1.25ZnD

Nut

4

15

B-G057820-00016

螺栓M10x55ZnD

Bolt

3

16

B-Q020540-00004

软管总成19-650

Hose ass’y

2
