SINOMACH CHANGLIN ZL60H wheel loader parts catalog 12
|
|

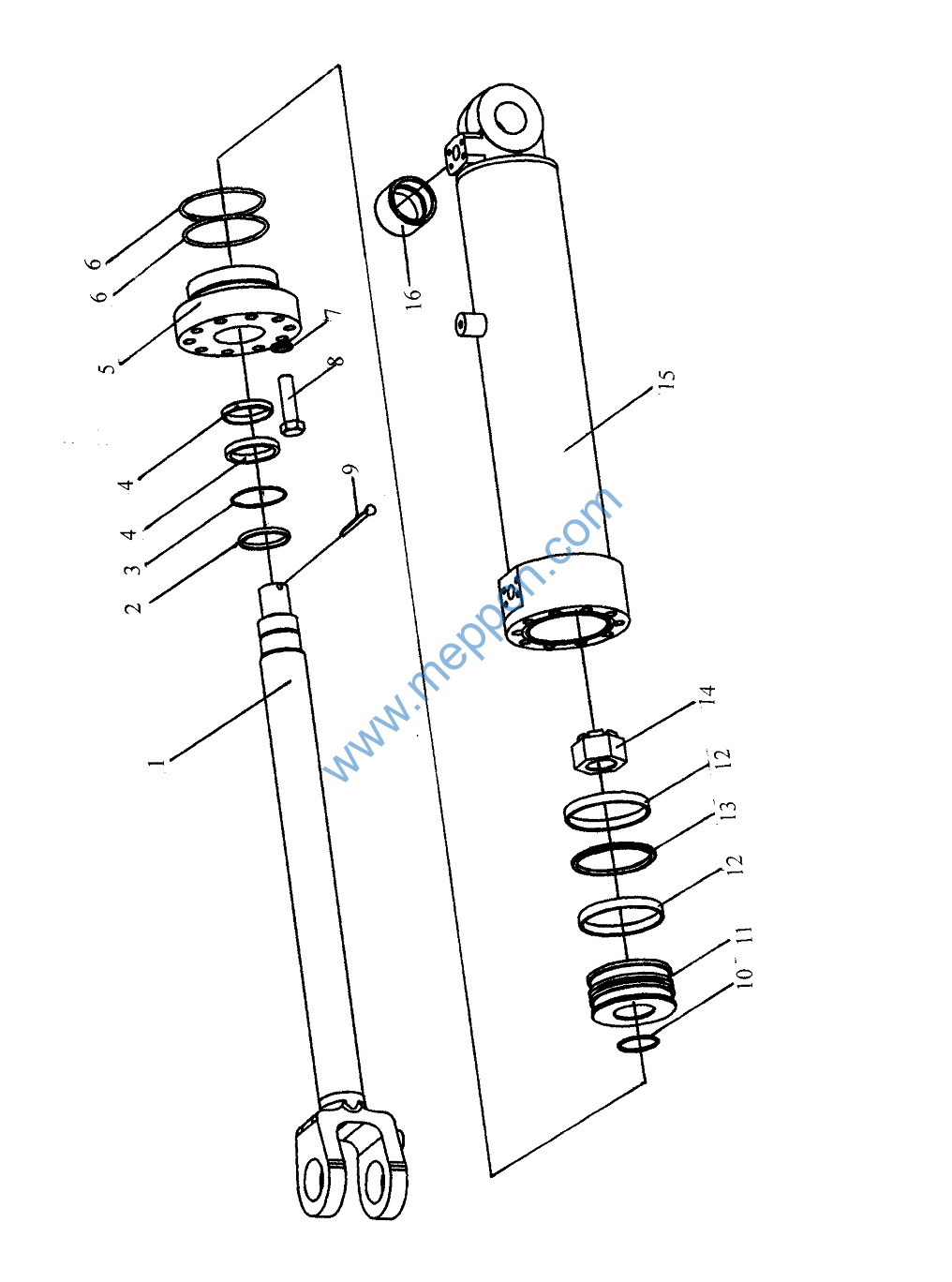

Z60F.14.20 动臂油缸 Lift Arm Cylinder
Z60F.14.20 动臂油缸 Lift Arm Cylinder
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
|
1 |
Z60F.14.20.1 |
活塞杆 Piston rod |
1 |
|
2 |
HS3300900-01-200 |
防尘圈FC90 Dust ring |
1 |
|
3 |
B-Q020710-00002 |
O形圈100×5.7 O-ring |
1 |
|
4 |
HS2310900-03-200 |
轴用Ky密封圈90×7.5 Seal ring |
2 |
|
5 |
Z50B.14.10-1 |
缸头 Cylinder head |
1 |
|
6 |
B-Q020710-00108 |
O形圈160×5.7 O-ring |
2 |
|
7 |
B-G000930-00006 |
垫圈 16 Washer |
12 |
|
8 |
GB/T5785-1986 |
螺栓M16×1.5×80 Bolt |
12 |
|
9 |
Z50B.14.10-6 |
止动钢丝圈 Ring |
1 |
|
10 |
B-Q020710-00087 |
O形圈65×3.1 O-ring |
1 |
|
11 |
Z50B.14.10A-2 |
活塞 Piston |
1 |
|
12 |
Z50B.14.10-3 |
支承环 Back-up ring |
2 |
|
13 |
HK1501600-05-55N |
格来圈 1800 Seal ring |
1 |
|
14 |
Z50B.14.10A-3 |
锁紧螺母 Nut |
1 |
|
15 |
Z60F.14.20.2 |
缸体 Cylinder body |
1 |
|
16 |
Z60F.14.20-2 |
轴套 Bushing |
1
|

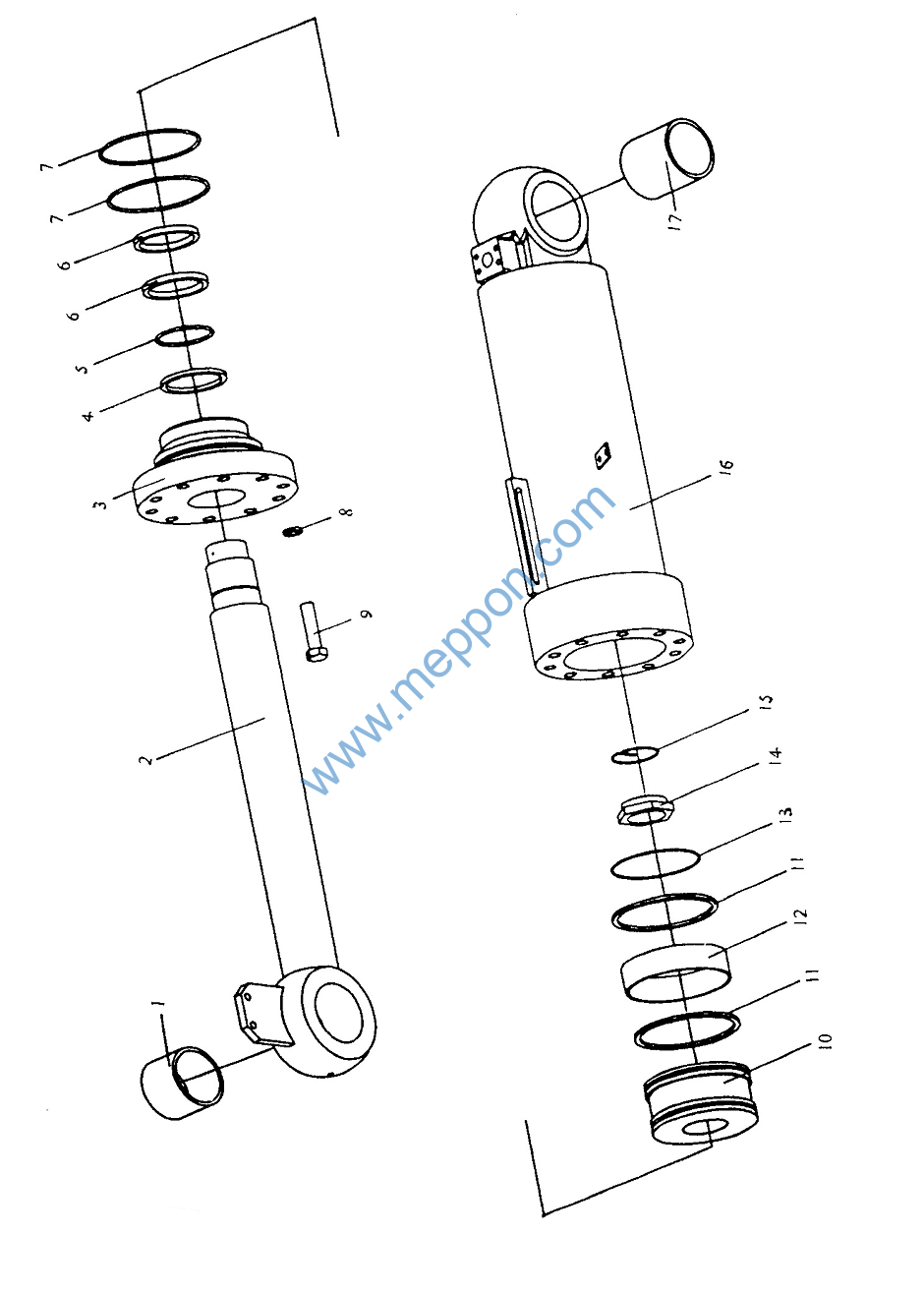

Z60F.14.22 转斗油缸 Dump Cylinder
Z60F.14.22 转斗油缸 Dump Cylinder
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
|
|
1 |
Z60F.14.22-7 |
轴套 |
Bushing |
1 |
|
2 |
Z60F.14.22.1 |
活塞杆 |
Piston rod |
1 |
|
3 |
ZZ60F.14.22-1 |
缸头 |
Cylinder head |
1 |
|
4 |
HA330.1100-01-200 |
防尘圈110 |
Dust ring |
1 |
|
5 |
O形圈120×5.7 |
O-ring |
1 |
|
|
6 |
HS230.1100-03-200 |
槽形密封圈110 |
Seal ring |
2 |
|
7 |
B-Q020710-00123 |
O形圈210×5.7 |
O-ring |
2 |
|
8 |
B-G000930-00010 |
垫圈 24 |
Washer |
10 |
|
9 |
B-G057850-00062 |
螺栓M24×2×100 |
Bolt |
10 |
|
10 |
Z60F.14.22-3 |
活塞 |
Piston |
1 |
|
11 |
HK1502100-05-55N |
格来圈 210 |
Seal ring |
2 |
|
12 |
Z60F.14.22-2 |
支承环 |
Back-up ring |
1 |
|
13 |
B-Q020710-00103 |
O形圈90×3.1 |
O-ring |
1 |
|
14 |
Z60F.14.22-4 |
螺母 |
Nut |
1 |
|
15 |
Z60F.14.22-5 |
止动钢丝圈 |
Ring |
1 |
|
16 17
|
Z60F.14.22.2 Z60F.14.22-8 |
缸体 轴套 |
Cylinder body Bushing |
1 1 |

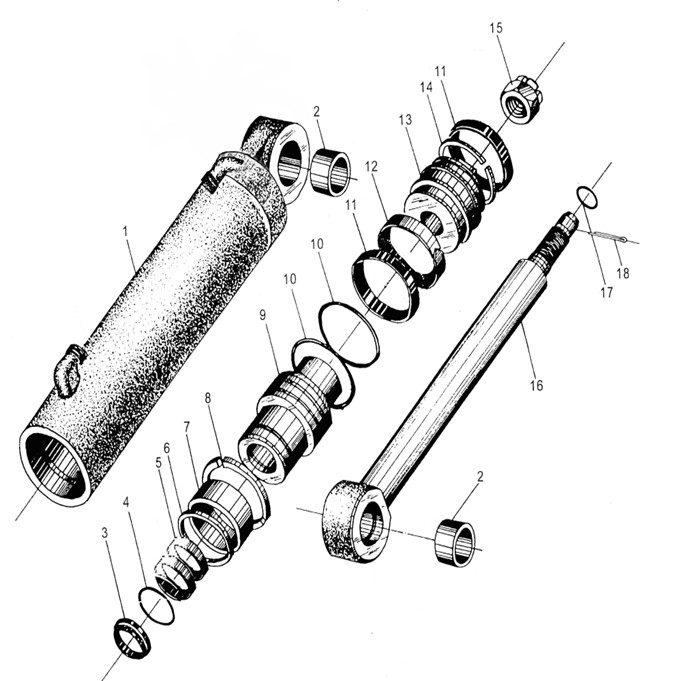

Z60F.G2.3.1 夹爪油缸 Gripping Jaw Cylinder
Z60F.G2.3.1 夹爪油缸 Gripping Jaw Cylinder
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
||
|
1 |
Z60F.G2.3.1-2 |
缸体 |
Cylinder body |
1 |
|
|
2 |
Z60F.G2.3.1-4 |
轴套 |
Bushing |
2 |
|
|
3 |
B-G10708C-00011 |
防尘圈55 |
Dust ring |
1 |
|
|
4 |
B-Q020710-00082 |
O型圈60×3.1 |
O-ring |
1 |
|
|
5 |
B-G10708A-00008 |
轴用KY圈55x70x11 |
Seal ring |
2 |
|
|
6 |
B-G00893A-00001 |
轴用档圈100 |
Seal ring |
1 |
|
|
7 |
Z30.14.1-10 |
挡环 |
Seal ring |
1 |
|
|
8 |
Z30.14.1-9 |
卡键 |
Seal ring |
1 |
|
|
9 |
Z30.14.1-8 |
导向套 |
Cylinder head |
1 |
|
|
10 |
GB1235-76 |
O型圈110×5.7 |
O-ring |
2 |
|
|
11 |
SJM05-1-110 |
孔用KY圈110x90x15 |
Seal ring |
2 |
|
|
12 |
支撑环110x3x15 |
Support ring |
1 |
||
|
13 |
Z30.14.1-6 |
活塞 |
Piston |
1 |
|
|
14 |
W-15-00073 |
格莱圈110×6.3 |
Seal ring |
1 |
|
|
15 |
GB58-76 |
锁紧螺母 |
Nut |
1 |
|
|
16 |
Z60F.G.2.3.1-3 |
活塞杆 |
Piston rod |
1 |
|
|
17 |
B-Q020710-00126 |
O型圈40×3.1 |
O-ring |
1 |
|
|
18 |
GB91-76 |
开口销 6×70 |
Pin |
1 |
|

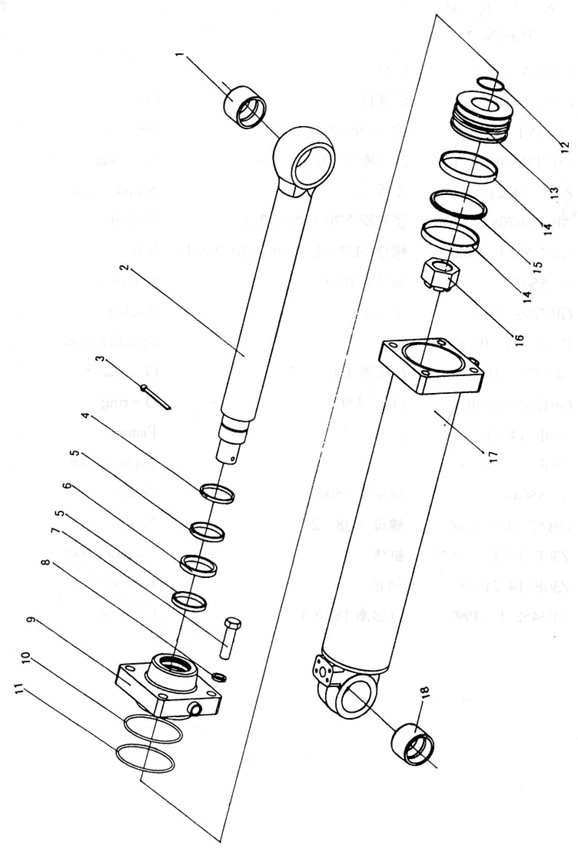

Z60F.G1.2.4 侧卸油缸 Side discharge cylinder
Z60F.G1.2.4 侧卸油缸 Side discharge cylinder
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
||
|
1 |
Z60F.G1.2.4-3 |
轴套 |
Bushing |
1 |
|
|
2 |
Z60F.G1.2.4-1 |
活塞杆 |
Piston rod |
1 |
|
|
3 |
Z30E.14.20-6 |
止动钢丝 |
Seal ring |
1 |
|
|
4 |
B-G10708C-00012 |
防尘圈70 |
Dust ring |
1 |
|
|
5 |
B-G10708A-00009 |
轴用KY圈70x85x11 |
Seal ring |
1 |
|
|
6 |
B-Q020710-00093 |
O形圈75×3.1 |
O-ring |
1 |
|
|
7 |
B-G057850-00039 |
螺栓M24x2x80-10.9 |
Bolt |
4 |
|
|
8 |
B-G000930-00010 |
垫圈 24 |
Washer |
4 |
|
|
9 |
Z30E.14.20-2 |
缸头 |
Cylinder head |
1 |
|
|
10 |
B-Q020710-00020 |
O型圈150×5.7 |
O-ring |
1 |
|
|
11 |
B-Q020710-00012 |
O型圈125×5.7 |
O-ring |
2 |
|
|
12 |
B-Q020710-00100 |
O型圈80×5.7 |
O-ring |
1 |
|
|
13 |
Z30E.14.20-4 |
活塞 |
Piston |
1 |
|
|
14 |
Z30E.14.20-3 |
支撑环 |
Support ring |
1 |
|
|
15 |
W-15-00074 |
格莱圈1250 |
Seal ring |
1 |
|
|
16 |
Z30E.14.20-5 |
锁紧螺母 |
Nut |
1 |
|
|
17 |
Z60F.G1.2.4-2 |
缸体 |
Cylinder body |
1 |
|
|
18 |
Z60F.G1.2.4-4 |
缸底轴套 |
Bushing |
1 |
|
