序号

No.

零 件 代 号

Part No.

名 称

Part Name

数量

Q’ty

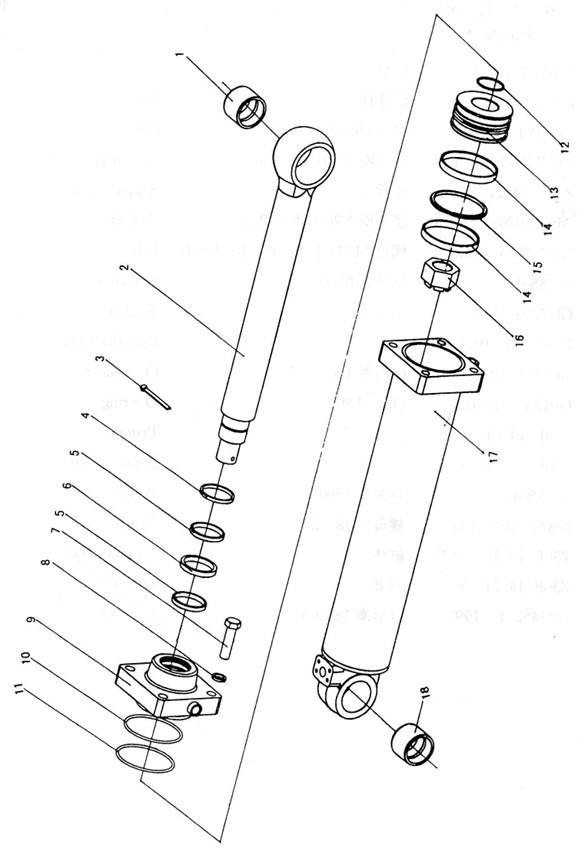

1

Z60F.G1.2.4-3

轴套

Bushing

1

2

Z60F.G1.2.4-1

活塞杆

Piston rod

1

3

Z30E.14.20-6

止动钢丝

Seal ring

1

4

B-G10708C-00012

防尘圈70

Dust ring

1

5

B-G10708A-00009

轴用KY圈70x85x11

Seal ring

1

6

B-Q020710-00093

O形圈75×3.1

O-ring

1

7

B-G057850-00039

螺栓M24x2x80-10.9

Bolt

4

8

B-G000930-00010

垫圈 24

Washer

4

9

Z30E.14.20-2

缸头

Cylinder head

1

10

B-Q020710-00020

O型圈150×5.7

O-ring

1

11

B-Q020710-00012

O型圈125×5.7

O-ring

2

12

B-Q020710-00100

O型圈80×5.7

O-ring

1

13

Z30E.14.20-4

活塞

Piston

1

14

Z30E.14.20-3

支撑环

Support ring

1

15

W-15-00074

格莱圈1250

Seal ring

1

16

Z30E.14.20-5

锁紧螺母

Nut

1

17

Z60F.G1.2.4-2

缸体

Cylinder body

1

18

Z60F.G1.2.4-4

缸底轴套

Bushing

1

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q‘ty

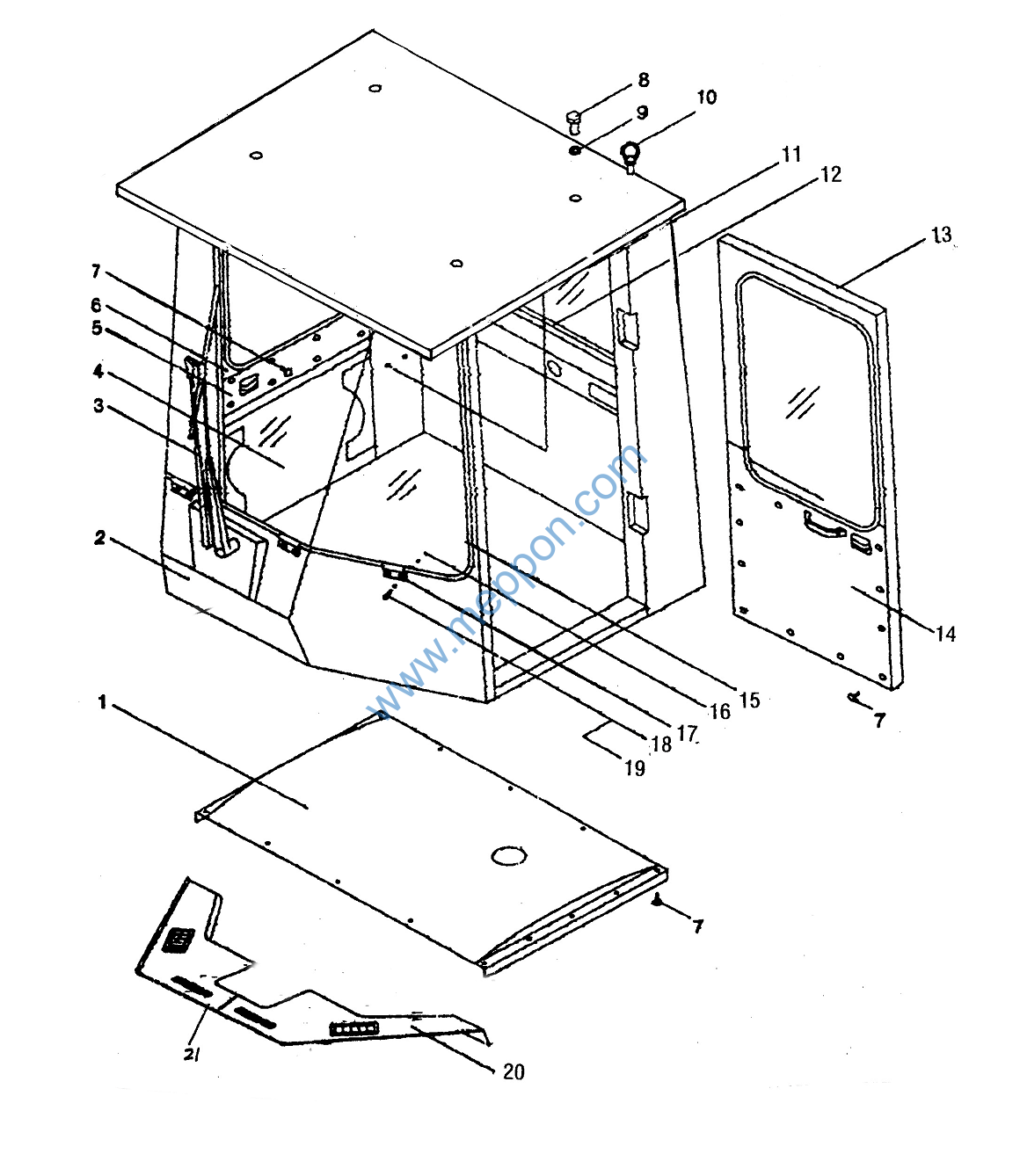

1

Z50G.16B.6

顶板

Plate

1

2

Z50H.16B.3.1

驾驶室骨架

Cab

1

3

雨刮器

Wiper

1

4

Z50E.16F.4-2

玻璃(前)

Front glass

1

5

Z50H.16.1.3.2

右门护板

Plate,R.H

1

6

Z50H.16.1.3

小门

Door,R.H

1

7

Z40E.16.6

塑扣

Plastic button

35

8

Z50E.16F.4.5

螺塞

Plug

4

9

B-J010020-00004

垫圈 16

Washer

4

10

B-G008250-00005

螺钉M16

Srew

4

11

Z30.16.4E-12

玻璃(后)

Rear glass

1

12

Z30.16.4E-11

密封嵌条(后)

Rear seal stripe

1

13

Z50H.16.1.2

左门

Door,L.H

1

14

Z50H.16.1.2.2

左门护板

Plate,L.H

1

15

Z50E.16F.4-5

密封嵌条(前)

Front seal stripe

1

16

Z50E.16F.4-4

玻璃(侧)

Side Glass

2

17

Z50E.16F.4-6

板

Plate

4

18

B-G057830-00164

螺栓M5×20ZnD

Bolt

8

19

B-G008590-00006

垫圈 5

Washer

8

20

Z40E.16F.5

左前面板

Plate

1

21

Z40E.16F.7

右前面板

Plate

1

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q‘ty

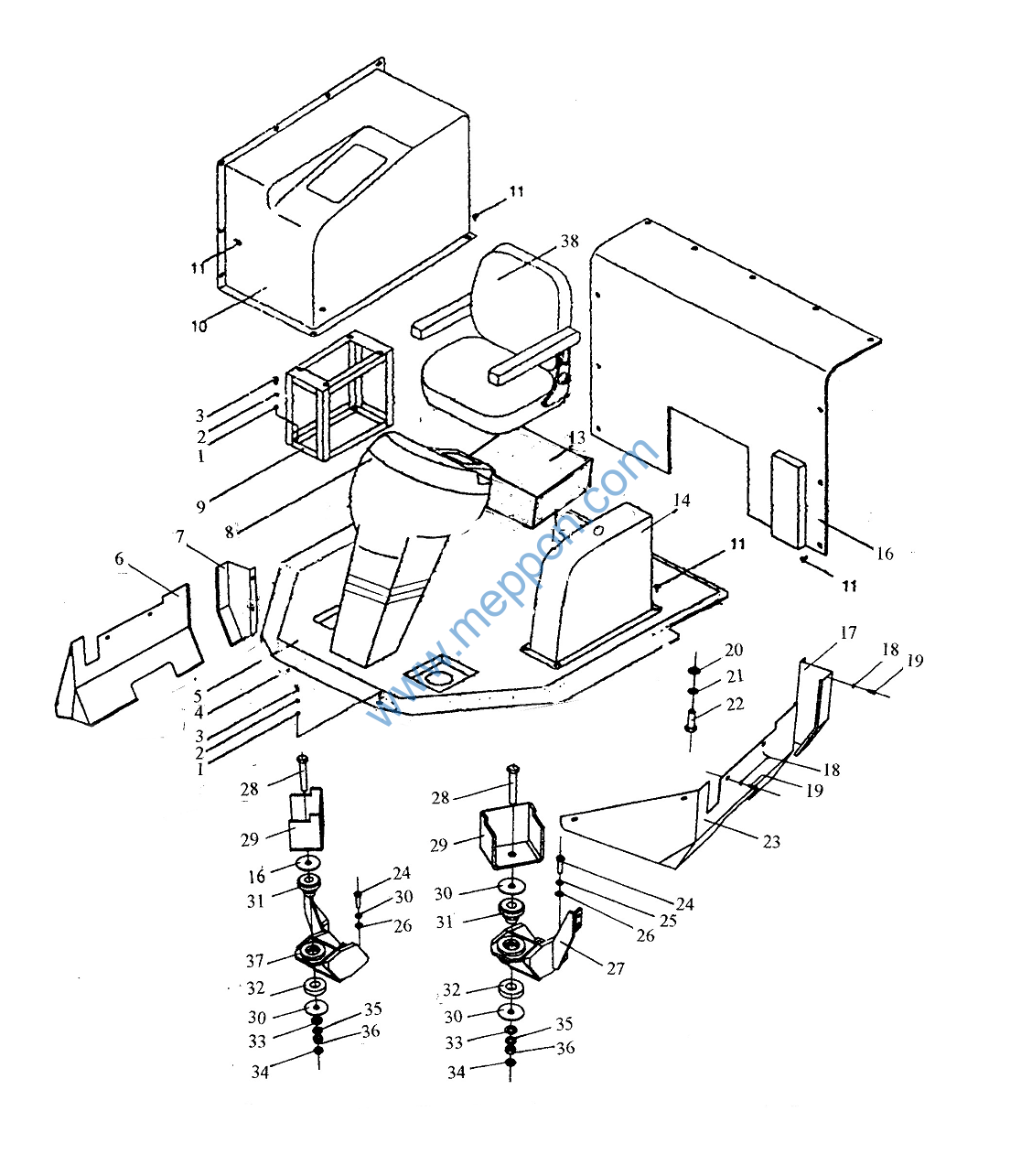

1

B-G00097B-00004

垫圈12ZnD

Washer

16

2

B-G000930-00003

垫圈12

Washer

16

3

B-G057830-00037

螺栓M12×35ZnD

Bolt

16

4

Z60H.16.1

底板架

Bottom support

1

5

Z60F.16C-1

底板垫

Bottom washer

1

6

Z60F.16B.5

右盖板

Plate

1

7

Z60F.16B.10

右后盖板

Plate

1

8

Z60F.16C.3

可调仪表立柱

Instrument post

1

9

Z50G.16.4

先导阀支架

Support

1

10

Z40E.16F.19

操纵箱

Cover

1

11

Z40E.16F.6

塑扣

Plastic button

24

13

ZZ40H.16.5

配风盒

Box

1

14

Z60F.16B.13

制动箱

Brake cover

1

15

Z40E.16F-8

密封条

Seal stripe

1

16

Z40H.16.6

后板

Plate

1

17

Z60F.16B.9

左后盖板

Plate

1

18

B-G00097B-00023

垫圈8ZnD

Washer

60

19

B-G057830-00139

螺栓M8×20ZnD

Bolt

46

20

B-G00097B-00014

垫圈24ZnD

Washer

4

21

B-G000930-00010

垫圈24

Washer

4

22

B-G057830-00116

螺栓M24×65ZnD

Bolt

4

23

Z60F.16B.4

左盖板

late

1

24

B-G057830-00082

螺栓M16×60ZnD

Bolt

8

25

B-G000930-00006

垫圈16

Washer

8

26

B-G00097B-00008

垫圈16ZnD

Washer

8

27

Z60F.16B.2

左前支架

Support

1

28

GB/T5785-1986

螺栓M22×1.5×140ZnD

Bolt

4

29

Z40E.16F.1.1

板

Plate

2

30

Z30.1-10

垫圈

Washer

8

31

Z30.1.2.1

缓冲座

Support

4

32

Z30.1.2-1

缓冲橡胶垫

Rubber washer

4

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q‘ty

33

B-G00097B-00012

垫圈 22ZnD Washer

4

34

B-G061730-00011

螺母M22×1.5ZnD Nut

4

35

B-G000930-00009

垫圈22 Washer

4

36

B-G061710-00017

螺母M22×1.5-10ZnD Nut

4

37

Z60F.16B.3

右前支架 Support

1

38

W-09-00050

座椅SG4 Shock seat

1

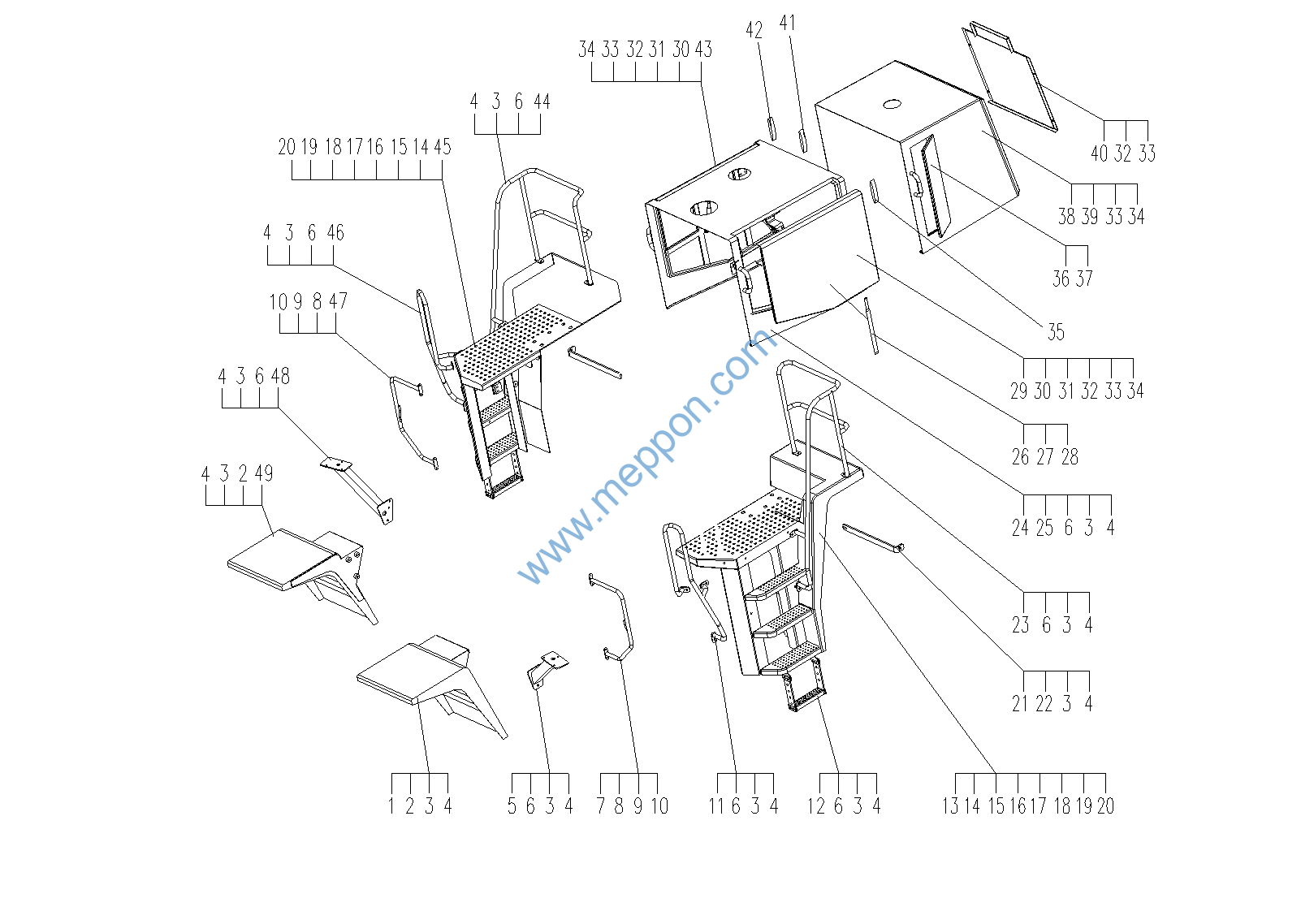

Z60H.17 车身及附件 Vehicle Body and Accessory
