SINOMACH CHANGLIN ZL50F-5 wheel loader parts catalog 06
Z50F.10 液压转向系统 Hydraulic Steering System
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
Z50E.10.1 Z50E.10B.1 Z30.10.1-1 Z50E.10B.3 Z50E.10B-1 Z50E.10B.2 Z50E.10B.4 Z50B.10A-3 Z50E.10B.5 Z50F.10.3 Z50F.10-1 Z50B.10-5 Z50B.10.13 Z50B.10A.5 Z50E.10B-2 Z50E.10B-3 Z50F.10.4 Z50F.10.5 Z20E.10B.6 Z50E.10N-1 |
转向盘组件 Steering plate ass‘y 转向器回油管 Oil tube 接头螺栓 Bolt 油管 Oil tube 接头体 Joint 油管 Oil tube 转向器进油管 Oil tube 座 Seat 右转向油缸 Right steering cylinder 油泵进油管 Oil tube 波纹管 Hose 螺栓 Bolt 软管总成 Hose ass’y 软管总成 Hose ass’y 接头体 Joint 接头体 Joint 软管总成 Hose ass’y 软管总成 Hose ass’y 左转向油缸 Left steering cylinder 螺栓 Bolt |
1 1 2 1 2 1 1 2 1 1 1 2 1 1 1 1 1 1 1 1 |
Z50F.10 液压转向系统 Hydraulic Steering System
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
① ② ③ ④
⑤ ⑥ ⑦ ⑧ ⑨ ⑩ |
B-J010020-00007 B-J010020-00006 B-Q020710-00039 W-19-00020
B-J010020-00001 B-Q020710-00028 W-07-00065 B-G057820-00003 B-G000930-00001 B-Q020750-00025 W-01-00033 B-G057830-00034 B-G000930-00003 B-Q020710-00077 B-J088700-00018 B-Q020750-00073 B-Q020710-00050 B-Q020750-00064 B-J010020-00002 B-Q020710-00006 B-Q020750-00050 B-J010020-00011 B-Q020140-00003 B-Q020710-00066 B-G057830-00011 B-G020140-00002 B-G020710-00060 |
垫圈 22 Washer 垫圈 20 Washer O形圈 24×2.4 O-ring 转向器阀块总成 BZZ5-E1000+FKB-3020 & valve ass’y 垫圈 10 Washer O形圈 20×2.4 O-ring 优先阀 YXL-F250L-N7 Demand valve 螺栓 M10×110 ZnD Bolt 垫圈 10 Washer 胶管接头 16Ⅱ-1000 Hose joint 双联泵（左旋）CBGj2063/1016-XF Pump 螺栓 M12×30 ZnD Bolt 垫圈 12 Washer O形圈 54×3.5 O-ring 喉箍 d70 Clamp 胶管接头 25I-3500 Hose joint O形圈 32×3.1 O-ring 胶管接头 25I-2200 Hose joint 垫圈 12 Washer O形圈 11×1.9 O-ring 胶管接头 19Ⅱ-500 Hose joint 垫圈 33 Washer 分离式法兰 Aφ44.1/21 Flange O形圈 44×3.5 O-ring 螺栓 M10×35-10.9 ZnD Bolt 分离式法兰 Aφ38.9/35 Flange O形圈 38×3.5 O-ring |
2 4 4 1
1 8 1 2 18 4 1 4 4 1 4 1 4 1 5 2 1 1 6 3 16 2 1 |

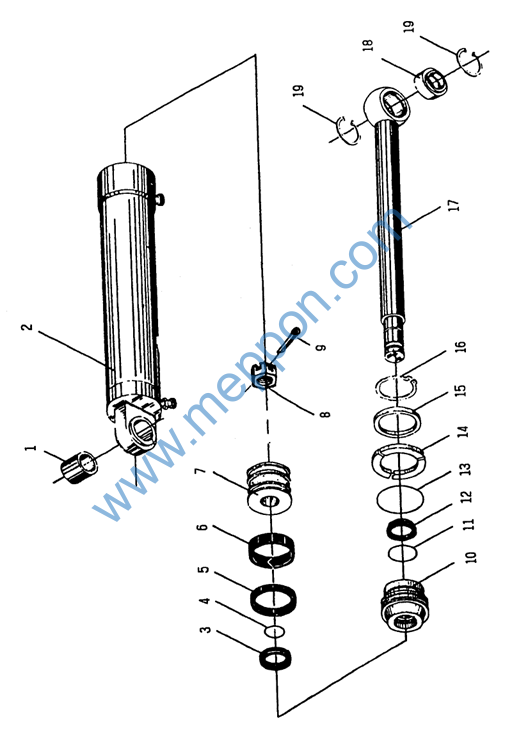

Z50E.10B.5 右转向油缸 Right Steering Cylinder
Z50E.10B.6 左转向油缸 Left Steering Cylinder
Z50E.10B.5 右转向油缸 Right steering Cylinder
Z50E.10B.6 左转向油缸 Left Steering Cylinder
|
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
|
1 2
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
Z50E.10N.3-2 Z50E.10B.5.1 Z50E.10B.6.1 B-G10708A-00003 B-Q020710-00057 W-15-00067 Z50B.10.12A-4 Z50B.10.12A-5 B-G094570-00004 B-G000910-00053 Z50B.10.12A-1 B-Q020710-00072 B-G10708C-00009 B-Q020710-00105 Z15.14.10-5 Z15.14.10-6 B-G00894A-00022 Z50E.10N.3-1 B-G091630-00003 B-G00893A-00010 |
衬套 Bushing 缸体 Cylinder body 缸体 Cylinder body 密封圈 Y45×60×12.5 Seal ring O形圈 36×3.5 O-ring 格莱圈 0900S-55044 Seal ring 支承环 90×15×3 Support ring 活塞 Piston 螺母 M36×2 Nut 销 5×60 ZnD Cotter pin 导向套 Guide sleeve O形圈 50×3.1 O-ring 防尘圈 FC45×53×5 Block ring O形圈 95×5.7 O-ring 卡键 Block key 挡圈 Snap ring 挡圈 80 Snap ring 活塞杆 Piston rod 关节轴承 GE40ES Joint bearing 挡圈 62 Snap ring
|
1 1 1 2 1 1 2 1 1 1 1 1 1 2 1 1 1 1 1 2 |

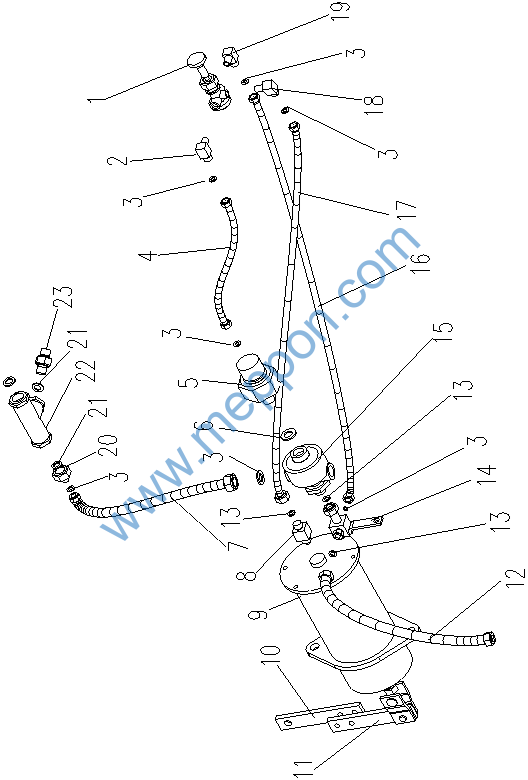

Z50F.11 紧急制动系统 Emergency Brake System
Z50F.11 紧急制动系统 Emergency Brake System
|
序号 Index |
零 Part No. |
名 Description |
数量 Q‘ty |
|
|
1 |
W-18-00015 |
手控制动阀|QZ50-3526002 |
Break valve |
1 |
|
2 |
Z40E.11-1 |
直角接头 |
Joint |
1 |
|
3 |
B-Q020710-00098 |
0形圈8×1.9 |
O-ring |
6 |
|
4 |
W-13-00005 |
气管|DH/G12x1.25（L=1400） |
Rubber pipe |
1 |
|
5 |
Z40E.11-3 |
接头 |
Joint |
1 |
|
6 |
B-J010020-00007 |
垫圈22 |
Whsher |
8 |
|
7 |
W-13-00011 |
气管|DH/G18（L=350） |
Rubber pipe |
1 |
|
8 |
Z40E.11-6 |
接头 |
Joint |
1 |
|
9 |
W-18-00033 |
制动气室|CL50 |
Brake chamer |
1 |
|
10 |
Z40E.11-8 |
板 |
Plate |
1 |
|
11 |
Z50F.11-1 |
板 |
Plate |
1 |
|
12 |
W-13-00030 |
气管|DH/G12x1.25（L=800） |
Rubber pipe |
1 |
|
13 |
B-Q020710-00018 |
0形圈14×2.4 |
O-ring |
7 |
|
14 |
Z40E.11.2 |
三通接头 |
Joint |
1 |
|
15 |
W-18-00011 |
气控截止阀|QZ50-3516001 |
Stope valve |
1 |
|
16 |
W-13-00003 |
气管|DH/G12x1.25（L=1000） |
Rubber pipe |
1 |
|
17 |
W-13-00002 |
气管|DH/G18（L=1000） |
Rubber pipe |
1 |
|
18 |
Z40E.11-3 |
直角接头 |
Joint |
1 |
|
19 |
Z40E.11-2 |
直角接头 |
Joint |
1 |
|
20 |
Z40E.11-4 |
接头 |
Joint |
1 |
|
21 |
Z30E.11-8 |
紫铜垫 |
Copper washer |
3 |
|
22 |
W-18-00011 |
气控截止阀|QZ50-3516001 |
Stope valve |
1 |
|
23 |
Z40E.11-5 |
接头 |
Joint |
1 |
