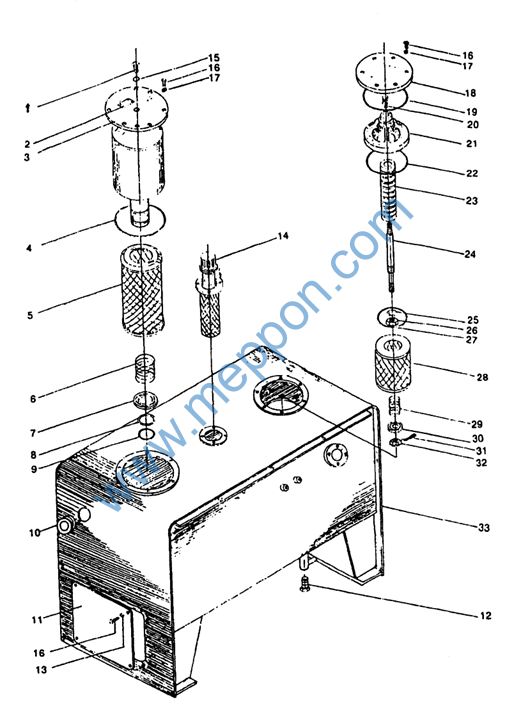

序号

No.

零件代号

Part No.

名 称

Part Name

数量

Q’ty

B-Q020120-00003

U形管夹A28

U-clip

8

B-G061760-00001

螺母M10x1.25ZnD

Nut

22

B-Q020490-00001

垫圈10

Washer

46

B-G057820-00014

螺栓M10x50-10.9ZnD

Bolt

8

B-G061700-00007

螺母M12ZnD

Nut

7

B-Q020490-00003

垫圈12

Washer

9

B-G057830-00016

螺栓M12x45ZnD

Bolt

4

B-G00097B-00004

垫圈12 ZnD

Washer

4

W-07-00083

多路换向阀|D32II-YL20

Valve

1

B-G057820-00033

螺栓M12x150-10.9ZnD

Bolt

1

B-G057820-00035

螺栓M12x170-10.9ZnD

Bolt

2

B-Q020160-00003

软管总成31.5-1100

Hose ass’y

1

B-Q020160-00007

软管总成31.5-1250

Hose ass’y

2

B-Q020120-00004

U形管夹A34

U-clip

3

B-G057820-00043

螺栓M12x55ZnD

Bolt

2

B-Q020710-00057

O形圈36×3.5

O-ring

2

B-J010000-00002

螺塞M14x1.5

Plug

1

B-J009990-00003

螺栓M14x1.5×35

Bolt

7

B-J009990-00005

螺栓M18x1.5×38

Bolt

1

B-J010020-00005

垫圈18

Washer

2

B-G061700-00003

螺母M10ZnD

Nut

6

B-G057830-00003

螺栓M10x20ZnD

Bolt

9

W-07-00055

先导阀|DJS2-UX/UU

Precursor valve

1

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Z50E.34F.1.1

B-G10708C-00014

B-G010710-00002

B-G10708A-00010

Z50B.14.10B-1

B-Q020710-00108

B-G000930-00006

B-G057850-00021

B-Q020710-00085

Z50B.14.10B-2

Z50B.14.10B-4

W-15-00076

Z50B.14.10B-3

Z50B.14.10-6

Z50B.14.10B.2

Z50B.14.10-7

活塞杆                    Piston rod

防尘圈 FC90×110×6    Dust ring

O形圈 100×5.7            O-ring

密封圈 Y90×105×12.5    Seal ring

缸头                    Cylinder head

O形圈 160×5.7            O-ring

垫圈 16                Washer

螺栓 M16×1.5×55ZnD    Bolt

O形圈 65×3.1            O-ring

活塞                    Piston

支承环                    Back-up ring

格莱圈 1600/S-55044     O-ring

螺母                    Nut

止动钢丝圈                Stop-wire ring

缸体                    Cylinder body

轴套                    Bushing

1

1

1

2

1

6

12

12

1

1

2

1

1

1

1

1

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

W-15-00077

B-Q03452A-00018

Z50B.14.18A-5

Z50B.14.18A-4

Z50B.14.18A-6

Z50B.14.18A-7

Z50E.34F.2.1

Z50B.14.18A-1A

Z50E.14U.1.1

B-G10708C-00013

Z50B.14.18A-2

B-G10708A-00011

W-15-00083

Z50B.14.18B-1

B-Q03452A-00004

Z50B.14.18A-8A

B-G057850-00040

B-G000930-00010

B-Q020710-00031

B-G057850-00037

Z50B.13.13

格莱圈 1000/S-55044    Ring

O形圈 90×5.3            O-ring

活塞                 Piston

支承环                    Back-up ring

锁紧螺母                Lock nut

止动钢丝圈                Stop-wire ring

缸体                    Cylinder body

轴套                    Bushing

活塞杆                    Piston ring

防尘圈 FC90×100×6    Dust ring

支承环                    Back-up ring

密封圈Y90×110×16        Seal ring

斯特封 0900/S-55013    Seal

缸头                    Cylinger head

O形圈 170×5.3            O-ring

轴套                    Bushing

螺栓M24×2×90 10.9 ZnD    Bolt

垫圈 24                Washer

O形圈 205×5.7         O-ring

螺栓M24×2×105-10.9ZnD Bolt

防尘圈 Dust seal

1

1

1

4

1

1

1

1

1

1

1

2

1

1

1

1

8

10

1

2

2
