SINOMACH CHANGLIN 936X wheel loader parts catalog 21
左转向油缸 Right Steering Cylinder
|
序号 No. |
零件代号 Part No. |
版本 Ver. |
名称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-G00893A-00006 |
1 |
挡圈47 |
Snap ring |
2 |
00005- |
|
|
2 |
B-G091630-00001 |
1 |
关节轴承GE30ES-2RS |
Joint bearing |
1 |
00005- |
|
|
3 |
936.10.1-1 |
1 |
活塞杆 |
Piston rod |
1 |
00005- |
|
|
4 |
B-G000910-00046 |
1 |
销5×40 |
Cotter pin |
1 |
00005- |
|
|
5 |
B-G057820-00079 |
1 |
螺栓M16x55ZnD |
Bolt |
4 |
00005- |
|
|
6 |
B-G000930-00006 |
1 |
垫圈16 |
Washer |
4 |
00005- |
|
|
7 |
936.10.1.1 |
1 |
缸头 |
Cylinder |
1 |
00005- |
|
|
8 |
B-G10708C-00008 |
1 |
防尘圈FC40x48x5 |
Block ring |
1 |
00005- |
|
|
9 |
B-Q020710-00067 |
1 |
0形圈45×3.1 |
O-ring |
1 |
00005- |
|
|
10 |
B-G10708A-0000（2）5 |
1 |
密封圈Y40x50x8 |
Lock ring |
1 |
00005- |
|
|
11 |
Z30E.10R.1-6A |
1 |
支承环 |
Support ring |
2 |
00005- |
|
|
12 |
B-Q020710-00103 |
1 |
0形圈90×3.1 |
O-ring |
1 |
00005- |
|
|
13 |
B-Q020710-00092 |
1 |
0形圈70×5.7 |
O-ring |
1 |
00005- |
|
|
14 |
B-Q020710-00046 |
1 |
0形圈30×3.1 |
O-ring |
1 |
00005- |
|
|
15 |
936.10.1-2 |
1 |
活塞 |
Piston |
1 |
00005- |
|
|
16 |
W-15-00069 |
1 |
格莱圈0700|S-55044 |
Lock ring |
1 |
00005- |
|
|
17 |
Z30E.10.1-3 |
1 |
支承环 |
Support ring |
2 |
00005- |
|
|
18 |
B-Q020430-00004 |
1 |
螺母M27x1.5ZnD |
Nut |
1 |
00005- |
|
|
19 |
936.10.1.2 |
1 |
缸体 |
Cylinder body |
1 |
00005- |
|
|
20 |
Z30E.10.1-5 |
1 |
衬套 |
Bush |
1 |
00005- |
|

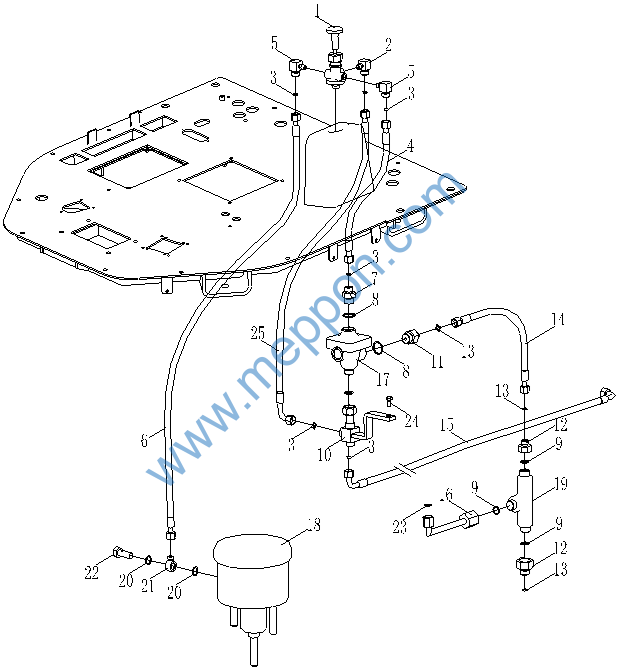

十一、紧急制动系统
Emergency Brake System
紧急制动系统 Emergency Brake System
9
紧急制动系统 Emergency Brake System
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
W-18-00015 |
手动制动阀QZ50-3526002 |
Control valve |
1 |
00005- |
||
|
2 |
Z30E.11-4 |
直角接头 |
Joint |
1 |
00005- |
||
|
3 |
B-Q020710-00018 |
O形圈14×2.4 |
O-ring |
8 |
00005- |
||
|
4 |
W-13-00111 |
气管|DH/G90x18x1.5(L=750) |
Pipe |
1 |
00005- |
||
|
5 |
Z30E.11-3 |
直角接头 |
Joint |
2 |
00005- |
||
|
6 |
W-13-00066 |
气管 |DH/G90x18x1.5(L=1100) |
Pipe |
1 |
00005- |
||
|
7 |
Z30.9.3-1 |
接头 |
Joint |
1 |
00005- |
||
|
8 |
B-J010020-00007 |
垫圈22 |
Washer |
2 |
00005- |
||
|
9 |
Z30E.11-8 |
紫铜垫 |
Copper pad |
4 |
00005- |
||
|
10 |
936.11.1B |
固定接头 |
Joint |
1 |
00005- |
||
|
11 |
Z30E.11-5 |
接头 |
Joint |
1 |
00005- |
||
|
12 |
Z30E.11-2 |
接头 |
Joint |
2 |
00005- |
||
|
13 |
B-Q020710-00006 |
O形圈11×1.9 |
O-ring |
2 |
00005- |
||
|
14 |
W-13-00120 |
气管|DH/G90x16x1.5(L=500) |
Pipe |
1 |
00005- |
||
|
15 |
W-13-00119 |
气管|DH/G2x90x18x1.5(L=2600) |
Pipe |
1 |
00005- |
||
|
16 |
Z50E.11L.4 |
直角接头 |
Joint |
1 |
00005- |
||
|
17 |
W-18-00011 |
气控截止阀QZ50-3516001 |
Valve |
1 |
00005- |
||
|
18 |
W-18-00025 |
驻车制动气室|CL30-3507002 |
Brake cylinder |
1 |
00005- |
||
|
19 |
W-18-00087 |
双向换通阀 |JN560（CLA）-3527002 |
Valve |
1 |
00005- |
||
|
20 |
B-J010020-00002 |
垫圈12 |
Washer |
2 |
00005- |
||
|
21 |
936.11-1 |
接头 |
Joint |
1 |
00005- |
||
|
22 |
936.11-2 |
铰接螺栓 |
Bolt |
1 |
00005- |
||
|
23 |
B-J010020-00005 |
垫圈8 |
Washer |
1 |
00005- |
||
|
24 |
B-G057830-00155 |
螺栓M10X22ZnD |
Bolt |
1 |
00005- |
||
|
25 |
W-13-00088 |
气管|DH/G90x18x1.5(L=600) |
Pipe |
1 |
00005- |
||
