识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-61-1

1

A210204000357

8

螺钉M10×60GB70.1 10.9级

Screw

2-61-2

2

A210401000001

11

垫圈

False

2-61-3

3

A210405000011

11

垫圈

False

2-61-4

4

12316797

1

安装法兰

Flange

2-61-5

5

B221701000089

1

联轴器

Coupling, shaft

2-61-6

6

A210111000225

4

螺栓M16×55GB5783 12.9级

Bolt

2-61-7

7

10185746

1

螺栓

Bolt

2-61-8

8

10185743

2

垫板

Plate

2-61-9

9

B229900005494

4

减震垫

Cushion

2-61-10

10

10185744

1

螺栓

Bolt

2-61-11

11

A820301021297

2

螺栓

Bolt

2-61-12

12

11459681

4

上碗垫

Coaster, bowl

2-61-13

13

B229900005493

4

减震垫

Cushion

2-61-14

14

A210491000144

8

垫圈

Washer

2-61-15

15

A820204000534

4

螺母

Nut

2-61-16

16

10251081

4

下碗扣

Coaster, Bowl

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

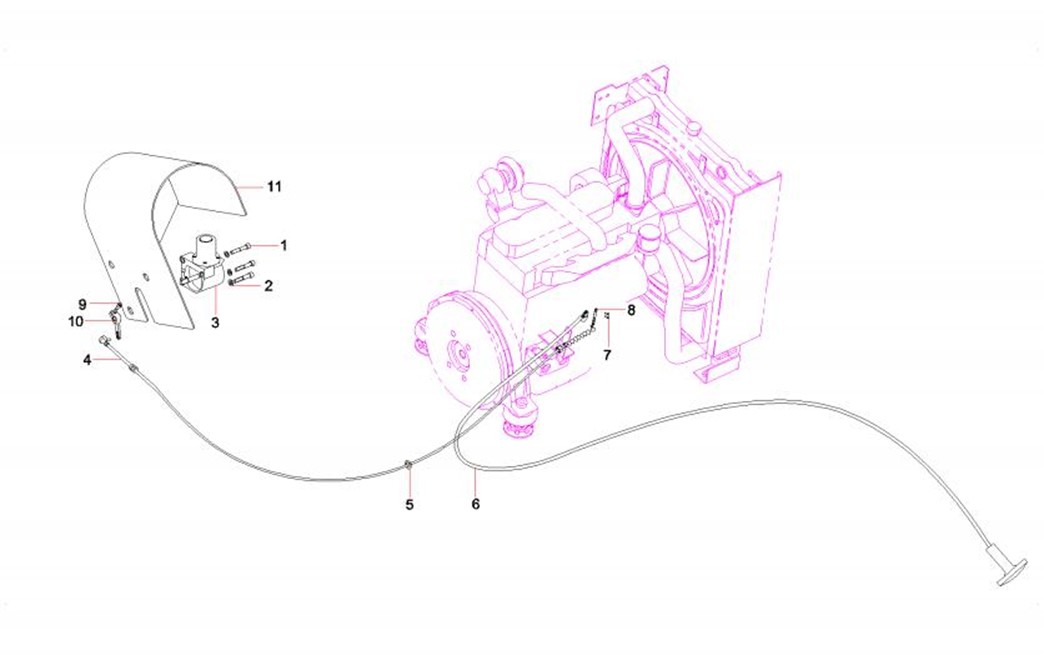

2-63-1

1

A210204000012

3

螺钉

Screw

2-63-2

2

A210405000011

3

垫圈

False

2-63-3

3

60099069

1

步进电机

Motor,throttle

2-63-4

4

60142852

1

推拉软轴

throttle guy assembly

2-63-5

5

11322508

1

油门马达拉线护孔环

Grommet

2-63-6

6

60142855

1

熄火软轴

manual flameout control cable

2-63-7

7

A210111000079

2

螺栓

Bolt

2-63-8

8

A820101026713

1

油门拐臂

Lever, throttle

2-63-9

9

A210204000147

1

螺钉

Screw

2-63-10

10

11626828

1

油门电机拐臂

Arm, throttle motor

2-63-11

11

12620670

1

防水罩

Waterproof Cover SY155.1.3.2.1

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

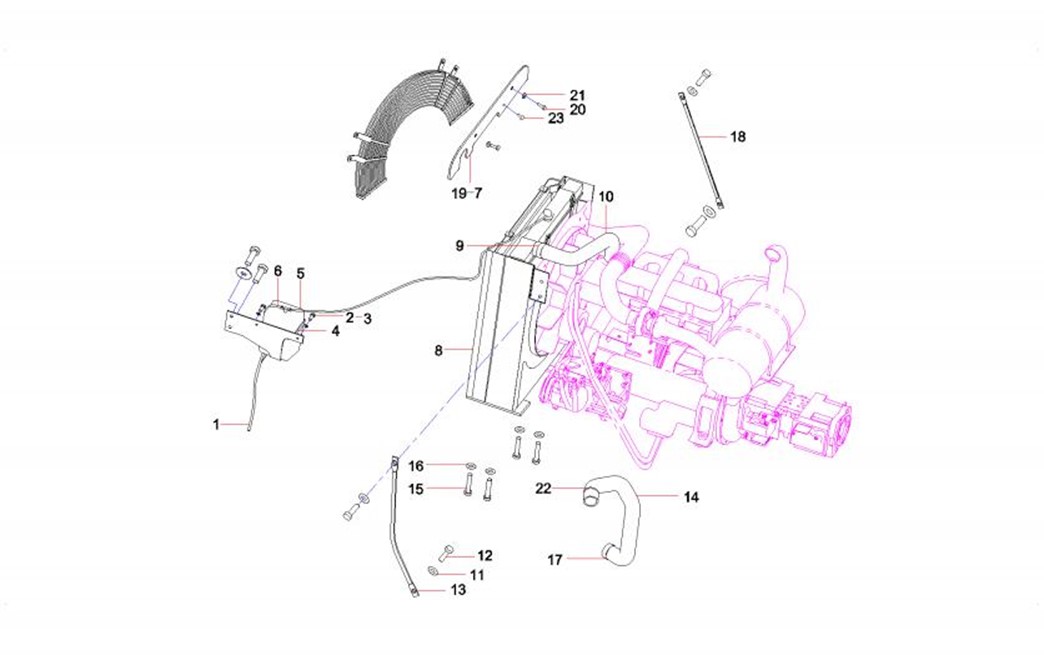

2-65-1

1

A820606030367

2

软管

Hose

2-65-2

2

A210204000147

2

螺钉

Screw

2-65-3

3

A210404000005

2

垫圈

False

2-65-4

4

A810102099060

1

支架

Bracket

2-65-5

5

A229900001590

1

储液箱

Tank GP, reserve

2-65-6

6

A229900001345

3

软管环箍

Hoop, hose

2-65-7

7

11813955

1

密封条

Strip, sealing

2-65-8

8

60155376

1

散热器

Radiator

2-65-9

9

60097976

2

双钢丝式环箍φ56- φ62 进口

Clamp

2-65-10

10

A820606030947

1

进水胶管

Hose, water inlet

2-65-11

11

A210404000008

4

垫圈

Washer16GB96.1

2-65-12

12

A210111000263

4

螺栓

Bolt

2-65-13

13

A820301017359

1

水箱支架

Brace

2-65-14

14

A820606030948

1

回水胶管

Pipe, water return

2-65-15

15

A210111000202

4

螺栓

Bolt

2-65-16

16

A210404000004

8

垫圈

False

2-65-17

17

60001972

1

T型抱箍

Clamp, T-type

2-65-18

18

10144629

1

水箱前支撑

Brace

2-65-19

19

12873948

1

顶部挡板

top baffleSY130.1.3.3.8

2-65-20

20

A210111000018

2

螺栓

Bolt

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-67-21

21

A210404000003

2

垫圈

Washer

2-67-22

22

60135749

1

T型抱箍

Clamp, T-type

2-67-23

23

11961759

4

扣钉

Pintle

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

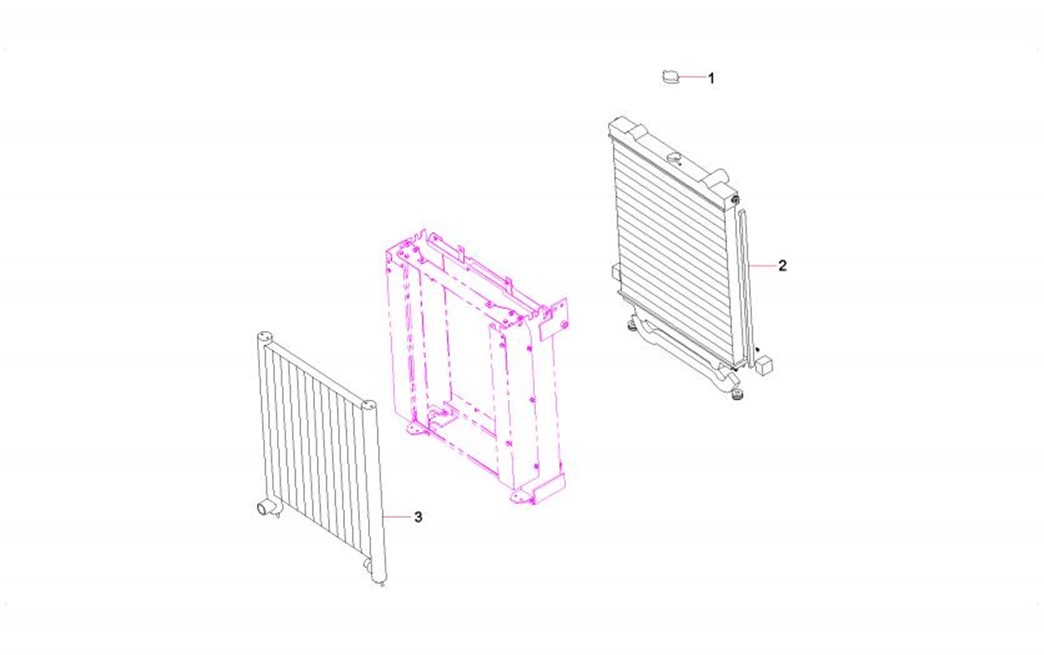

2-69-1

1

60077849

1

加水口盖

Cap, filler

2-69-2

2

60182265

1

散热器

radiator

2-69-3

3

60182261

1

散热器

radiator

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

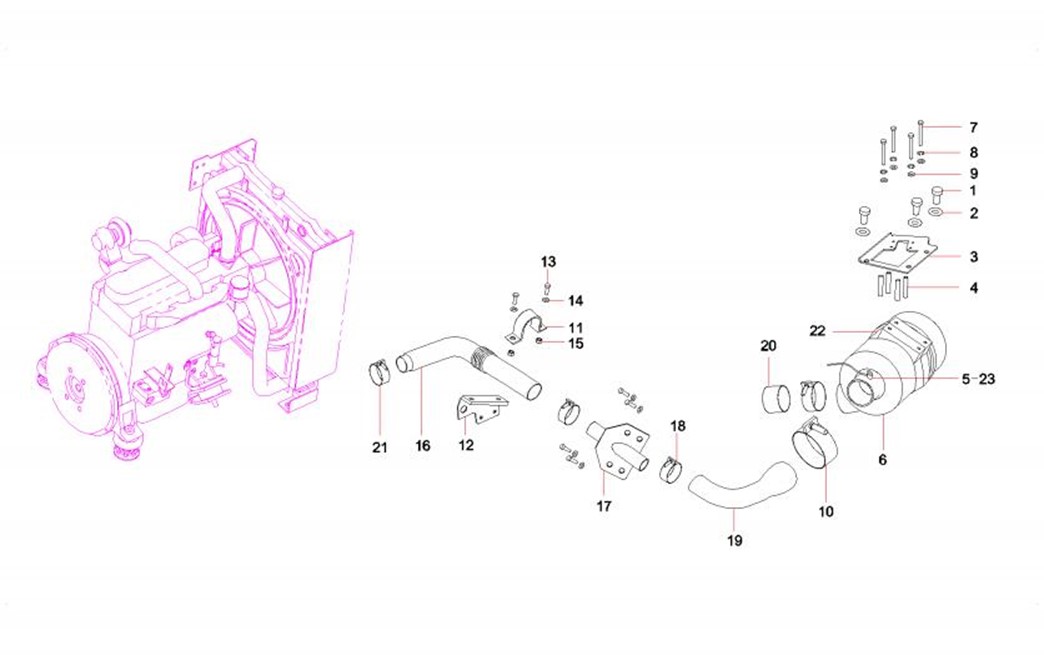

2-71-1

1

A210111000101

7

螺栓M12×25GB5783 10.9级

Bolt

2-71-2

2

A210405000001

7

垫圈

Washer

2-71-3

3

A820101346097

1

安装板

Plate, Mounting

2-71-4

4

A820301017514

4

安装套

Sleeve, spacer

2-71-5

5

B229900003909

1

空滤传感器接头

Connector, sensor, air cleaner

2-71-6

6

B222100000458

1

空滤器总成

Air cleaner

2-71-7

7

A210110000367

4

螺栓M8×110(GB5782) 10.9级

Bolt

2-71-8

8

A210405000007

4

垫圈

False

2-71-9

9

A210401000017

4

垫圈

False

2-71-10

10

A229900002222

2

T型抱箍

Anchor ear, T-type

2-71-11

11

A820101346724

1

卡箍

Clip

2-71-12

12

A810102072219

1

导管支架

Bracket

2-71-13

13

A210210000017

2

螺钉

Screw

2-71-14

14

A210405000006

2

垫圈

Washer

2-71-15

15

A210307000016

2

螺母

Nut

2-71-16

16

10072576

1

长进气管

Hose, air inlet

2-71-17

17

10177031

1

联接管

Tube, connection

2-71-18

18

B229900001059

2

T型抱箍

Anchor ear, T-type

2-71-19

19

10072577

1

短进气管

Hose, air inlet

2-71-20

20

10177023

1

滤网

Strainer
