SANY SY135C9 SY135C9I2K EXCAVATOR parts catalog 17
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-169-61 |
61 |
60113830 |
1 |
调节杆螺帽 |
Nut |
|
2-169-62 |
62 |
60113912 |
1 |
喷油泵调节器调整联杆螺钉螺母 |
Nut |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

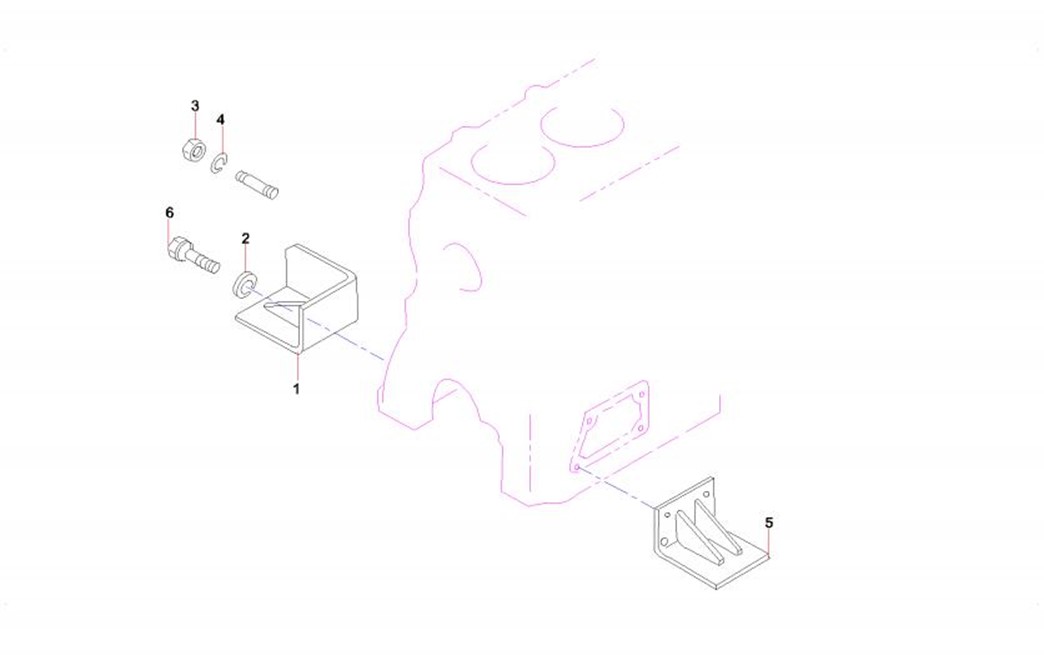

2-171-1 |
1 |
60010403 |
1 |
风扇端左边支座 |
Bracket, front, RH |
|
2-171-2 |
2 |
B229900004628 |
7 |
垫圈 |
Washer |
|
2-171-3 |
3 |
B229900004819 |
1 |
螺母 |
Nut |
|
2-171-4 |
4 |
B229900004611 |
1 |
垫圈 |
Washer |
|
2-171-5 |
5 |
60010402 |
1 |
风扇端右边支座 |
Bracket, front, LH |
|
2-171-6 |
6 |
60113828 |
7 |
地脚螺栓 |
Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

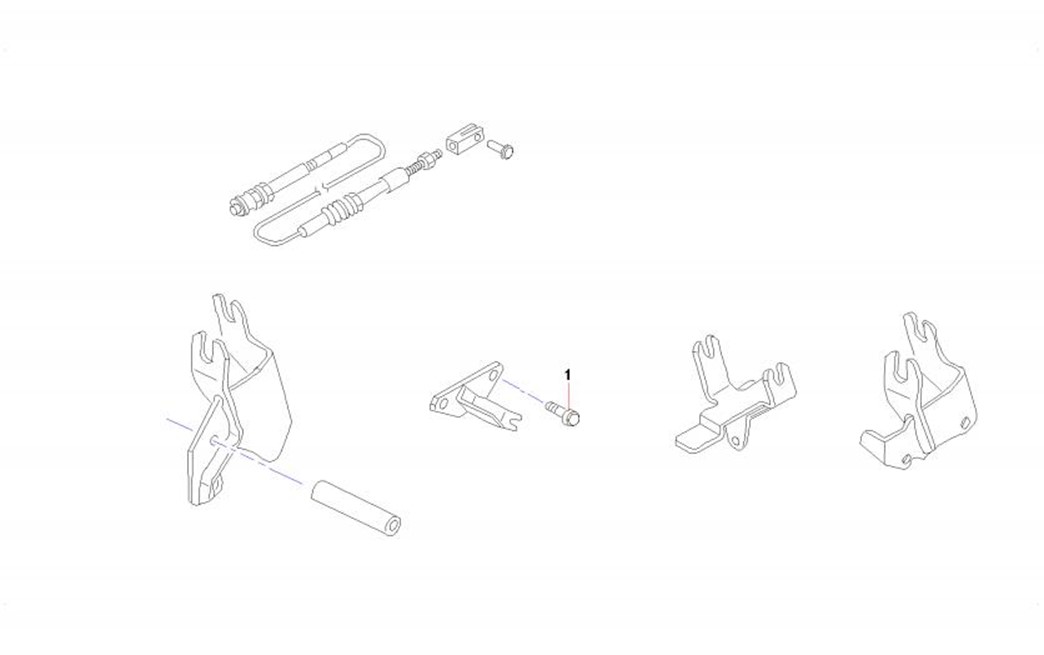

2-173-1 |
1 |
B229900004880 |
1 |
螺栓 |
Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

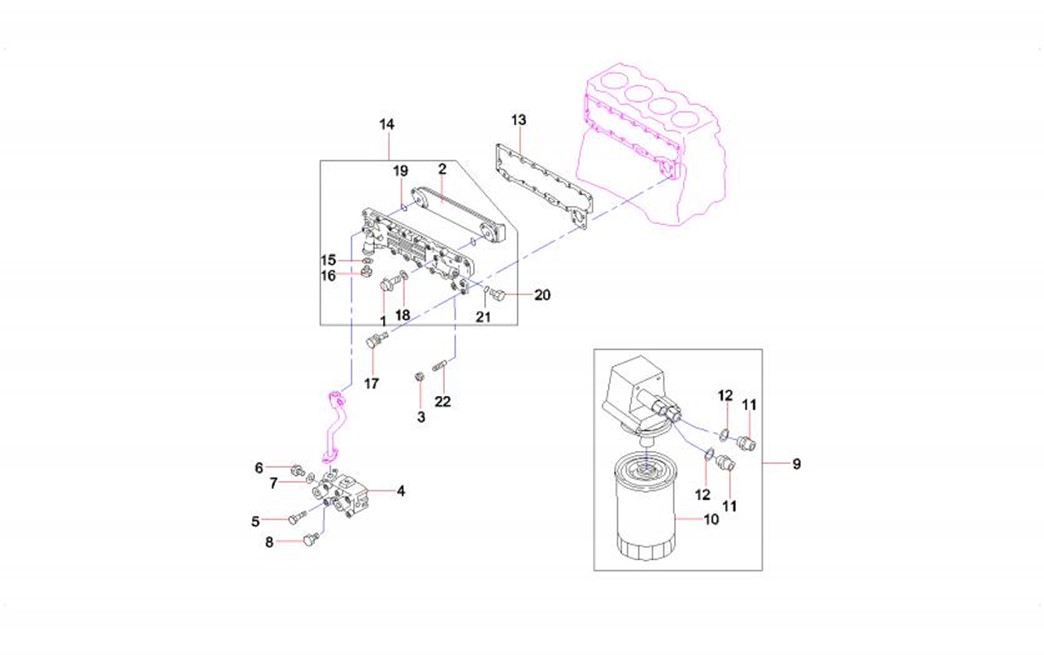

2-175-1 |
1 |
B229900004870 |
4 |
螺栓 |
Bolt |
|
2-175-2 |
2 |
60009105 |
1 |
冷却器芯 |
Core, cooler, engine oil |
|
2-175-3 |
3 |
B229900004796 |
2 |
螺母 |
Nut |
|
2-175-4 |
4 |
60007942 |
1 |
座 |
Housing |
|
2-175-5 |
5 |
60007922 |
4 |
螺栓 |
Bolt |
|
2-175-6 |
6 |
B229900004674 |
1 |
堵头 |
Plug |
|
2-175-7 |
7 |
B229900004572 |
1 |
垫片 |
Shim |
|
2-175-8 |
8 |
B220401001132 |
1 |
阀 |
Valve |
|
2-175-9 |
9 |
B222100000398 |
1 |
机油滤清器 |
Filter, engine oil |
|
2-175-10 |
10 |
B222100000488 |
1 |
机油滤清器 |
Filter, engine oil |
|
2-175-11 |
11 |
A820205000942 |
2 |
接头 |
Connector |
|
2-175-12 |
12 |
B230101000356 |
2 |
O形圈 |
O-ring |
|
2-175-13 |
13 |
60113907 |
1 |
密封垫 |
Seal, ring |
|
2-175-14 |
14 |
60009104 |
1 |
机油冷却器总成 |
Cooler GP, engine oil |
|
2-175-15 |
15 |
60113960 |
1 |
油冷却器密封垫 |
Gasket |
|
2-175-16 |
16 |
60113799 |
1 |
旁通阀总成 |
Valve GP, bypass |
|
2-175-17 |
17 |
60003580 |
6 |
螺栓 |
Bolt |
|
2-175-18 |
18 |
60113956 |
4 |
油冷器螺栓垫片 |
Shim |
|
2-175-19 |
19 |
60113905 |
2 |
密封垫 |
Gasket |
|
2-175-20 |
20 |
60113957 |
1 |
油冷却器壳体塞 |
Plug |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-177-21 |
21 |
60113958 |
1 |
油冷却器壳体塞垫片 |
Shim |
|
2-177-22 |
22 |
60113959 |
2 |
油冷却器螺柱 |
Stud |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

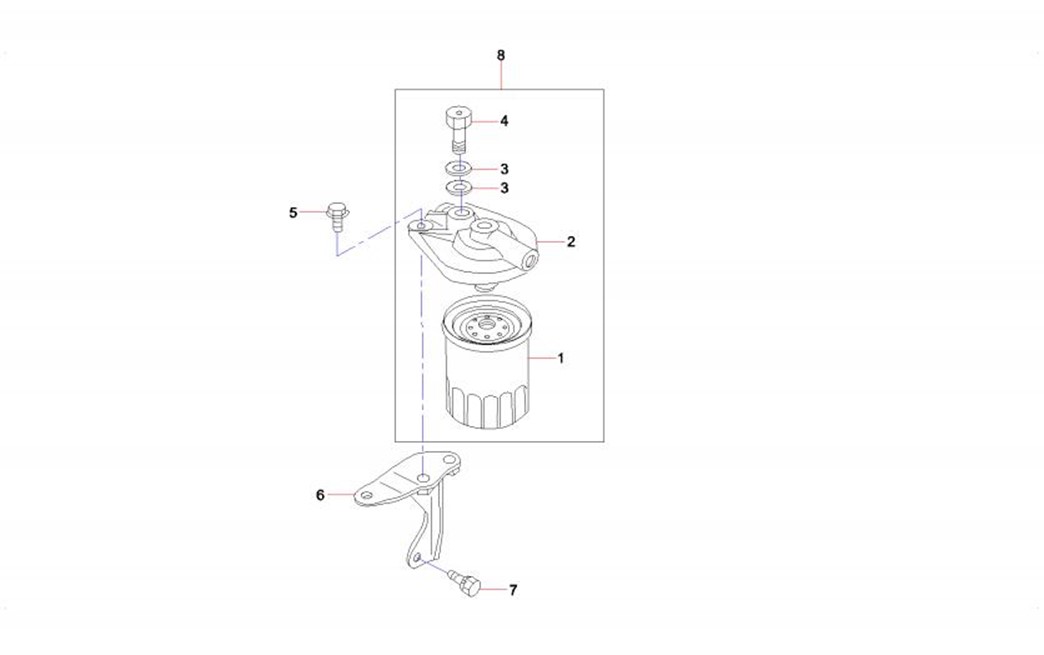

2-179-1 |
1 |
B222100000453 |
1 |
柴油滤清器 |
Filter, fuel |
|
2-179-2 |
2 |
B222100000655 |
1 |
滤清器座 |
Base |
|
2-179-3 |
3 |
B229900002619 |
2 |
垫圈 |
Shim |
|
2-179-4 |
4 |
B229900003209 |
1 |
柴油滤芯器放油螺栓 |
Bolt, Oil Drain |
|
2-179-5 |
5 |
60113885 |
2 |
螺栓 |
Bolt |
|
2-179-6 |
6 |
60113943 |
1 |
燃油滤清器支架 |
Bracket, fuel filter |
|
2-179-7 |
7 |
60113882 |
2 |
螺栓 |
Bolt |
|
2-179-8 |
8 |
60113821 |
1 |
燃油滤清器总成 |
Filter GP, fuel |
