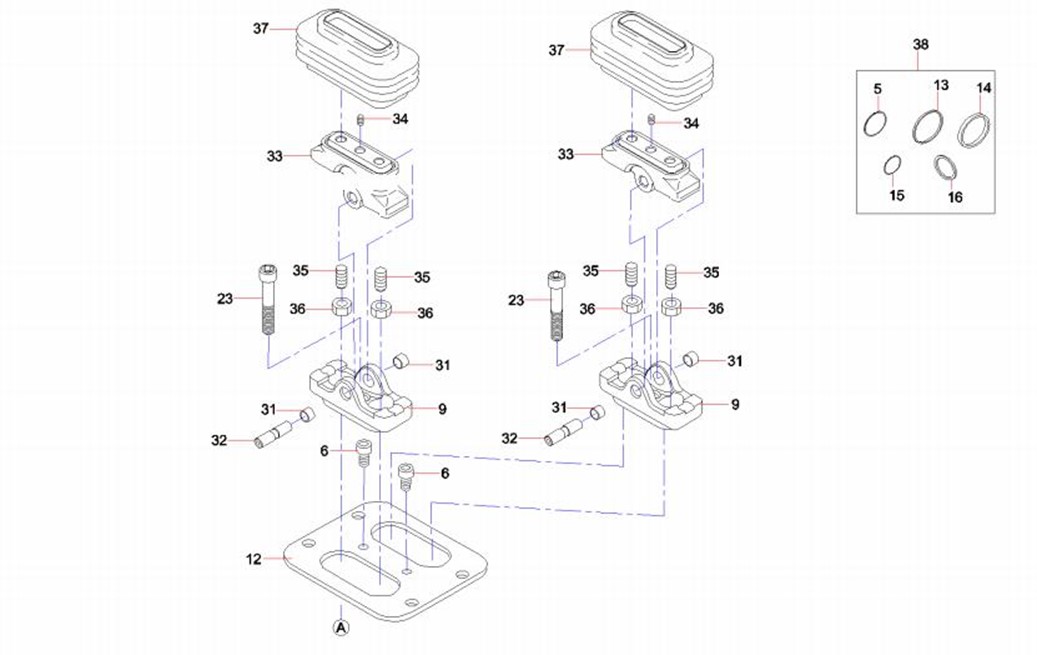

IC

INDEX

PART NUMBER

QTY

PART NAME

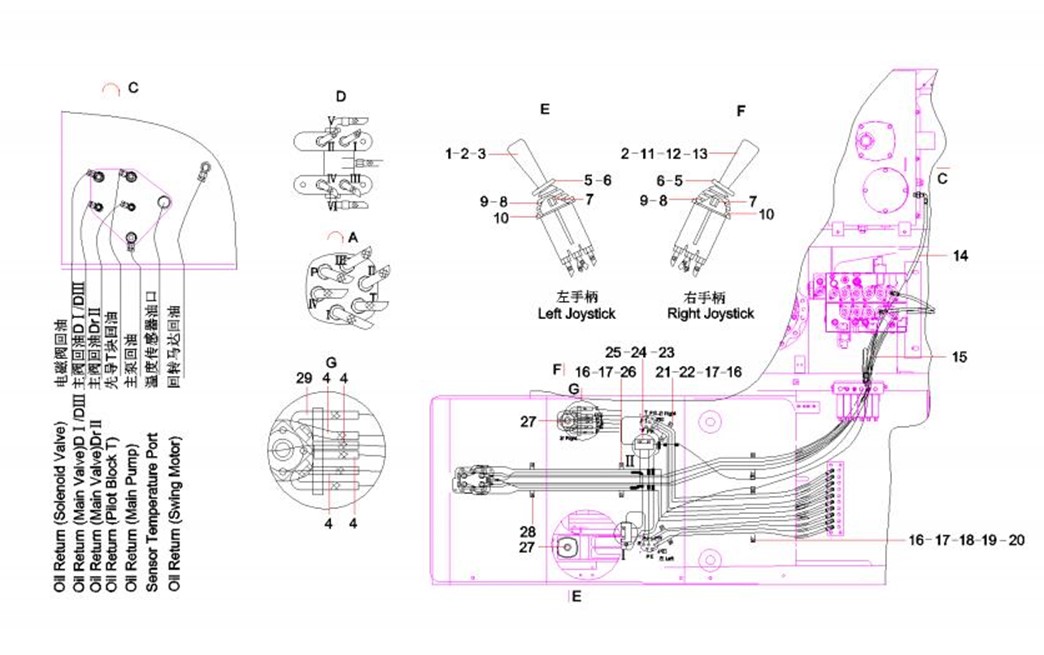

2-9-1

1

B229900001613

1

Joystick, left

2-9-2

2

A210264000022

2

Screw, self-tapping

2-9-3

3

60116344

1

Insertion piece

2-9-4

4

B230103001375

4

Hose

2-9-5

5

11050165

2

Handle, grip

2-9-6

6

A210308000006

2

Nut M12×1.25GB6171

2-9-7

7

A210307000025

2

Nut M14GB6170

2-9-8

8

A229900006446

2

Hood

2-9-9

9

A229900001028

2

Hood

2-9-10

10

A229900001027

2

Plate

2-9-11

11

B229900001614

1

Joystick, right

2-9-12

12

A241200000875

1

Switch

2-9-13

13

A229900006438

1

Insertion piece

2-9-14

14

B230103003202

1

Hose

2-9-15

15

B230103003282

1

Hose, rubber

2-9-16

16

A210111000342

10

Bolt M8×16GB5783 10.9

2-9-17

17

24000511

10

Washer

2-9-18

18

11243400

1

Plate, pressure

2-9-19

19

60086354

2

Clamp, harness

2-9-20

20

11602359

2

Gasket, rubber

IC

INDEX

PART NUMBER

QTY

PART NAME

2-11-21

21

11602348

2

Gasket, rubber

2-11-22

22

11243374

2

Plate, pressure

2-11-23

23

24000512

4

Washer

2-11-24

24

A820199000360

2

Block, PT

2-11-25

25

21005186

4

Bolt M10×40GB5783 10.9

2-11-26

26

11243372

2

Plate, pressure

2-11-27

27

B220401001302

2

Valve, pilot, manual

2-11-28

28

11602341

2

Gasket, rubber

2-11-29

29

B230103000982

1

Hose

IC

INDEX

PART NUMBER

QTY

PART NAME

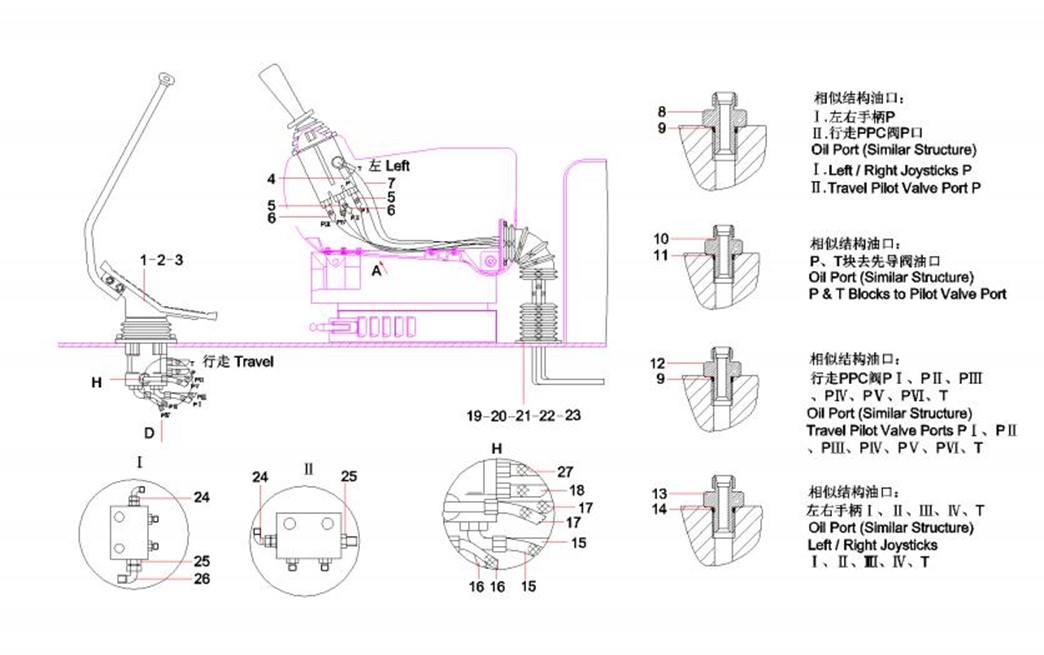

2-13-1

1

A210111000197

4

Bolt M10×25GB5783 10.9

2-13-2

2

60170604

1

Pilot-control Valve

2-13-3

3

24000637

4

Washer

2-13-4

4

A831211120000

1

Hose, rubber

2-13-5

5

B230103000985

3

Hose

2-13-6

6

60128281

2

Hose

2-13-7

7

B230103002263

1

Hose, rubber

2-13-8

8

60020078

3

Connector, filter

2-13-9

9

B230101000047

16

O-ring

2-13-10

10

A820205000839

6

Connector

2-13-11

11

B230101000047

16

O-ring

2-13-12

12

A820205000940

7

Connector

2-13-13

13

A820205000946

10

Connector

2-13-14

14

B230101000049

10

O-ring 13.8×2.4JISB2401

2-13-15

15

B230103002001

2

Hose

2-13-16

16

B230103002658

2

Hose

2-13-17

17

21020054

2

Hose,rubber

2-13-18

18

B230103004256

1

Hose

2-13-19

19

A820601990304

2

Flange

2-13-20

20

A820601990336

2

Bellows

IC

INDEX

PART NUMBER

QTY

PART NAME

2-15-21

21

A210111000079

8

Bolt M6×16GB5783

2-15-22

22

24000632

8

Washer

2-15-23

23

11243401

2

Sleeve, rubber

2-15-24

24

B210780000418

2

Connector, pipe

2-15-25

25

A820205000894

2

Connector

2-15-26

26

B210780000024

1

Elbow

2-15-27

27

A831211095000

1

Hose assembly

IC

INDEX

PART NUMBER

QTY

PART NAME

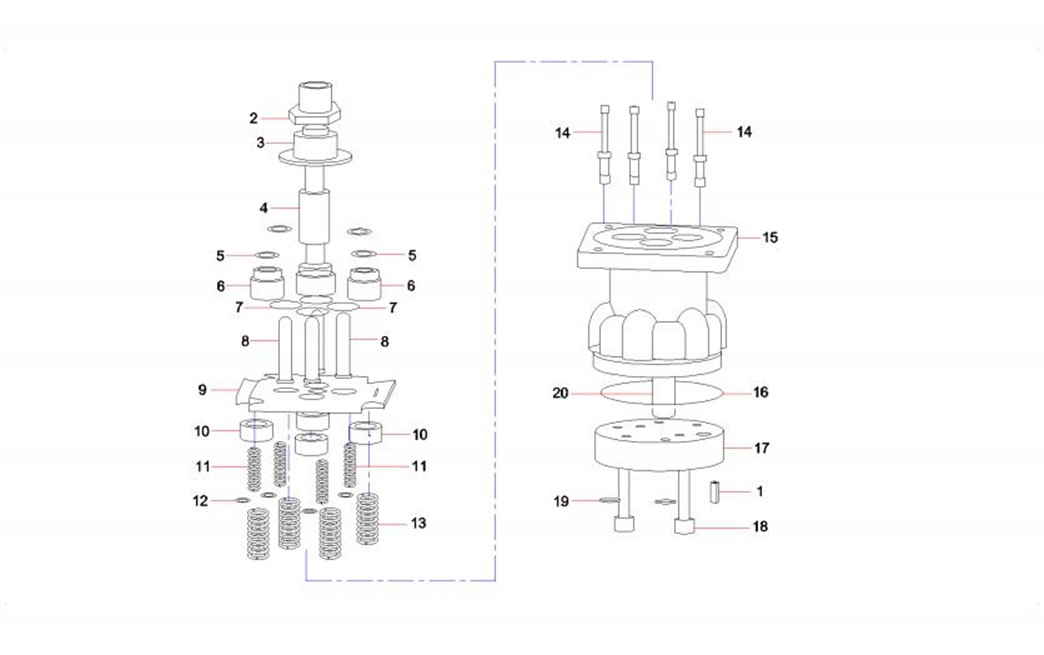

2-17-1

1

60008879

1

Pin, roll

2-17-2

2

60008604

1

Nut, adjusting

2-17-3

3

60008809

1

Plate, circular

2-17-4

4

60008602

1

Connector

2-17-5

5

60008603

4

Ring, seal

2-17-6

6

60008595

4

Plug

2-17-7

7

B230101000363

4

O-ring

2-17-8

8

60008599

4

Pushrod

2-17-9

9

60008811

1

Plate

2-17-10

10

60008758

4

Seat, spring

2-17-11

11

60008775

4

Spring

2-17-12

12

60008597

4

Washer

2-17-13

13

60008774

4

Spring

2-17-14

14

60008760

4

Spool

2-17-15

15

60008795

1

Housing

2-17-16

16

60008799

1

O-ring

2-17-17

17

60008810

1

Plate, connecting, oil port

2-17-18

18

60008786

2

Screw, socket head

2-17-19

19

60008598

2

Washer, seal

2-17-20

20

60008806

1

Sleeve
