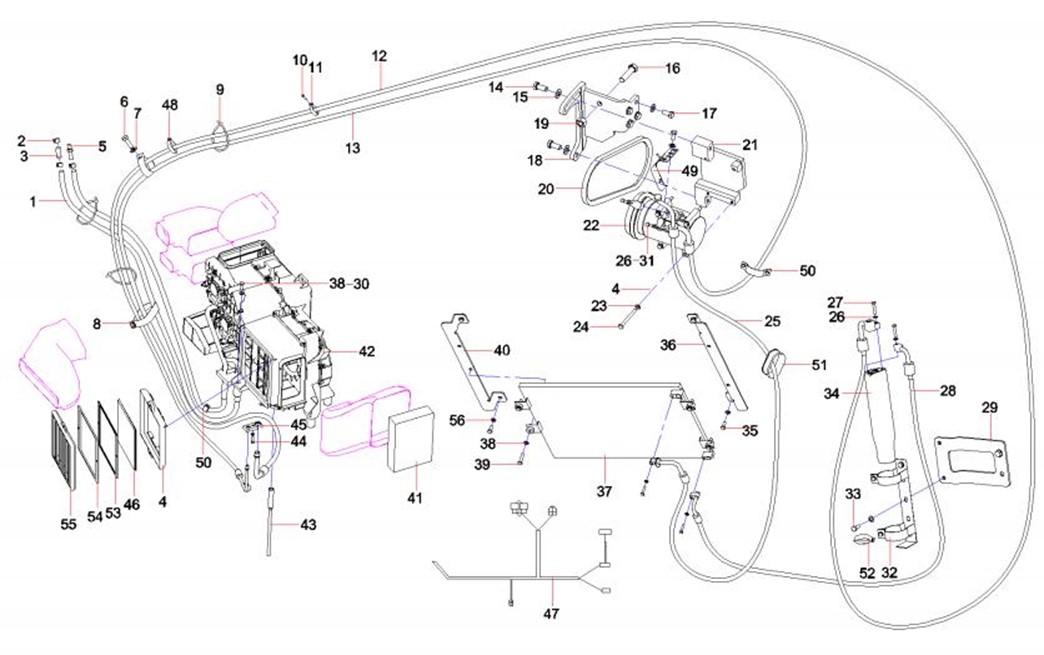

SANY SY220C SY220C9 SY220C9M2K EXCAVATOR parts catalog 13
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-109-1 |
1 |
12926943 |
1 |
Hose SY215C9M2K.1.8-10 |
2-109-2 |
2 |
60166495 |
1 |
Split Flow Gear Pump |
2-109-3 |
3 |
13133606 |
1 |
reducer tube SY215C9M2K.1.8-17 |
2-109-4 |
4 |
13626490 |
1 |
front cover plate SY215C9.1.8.29- |
2-109-5 |
5 |
10453599 |
1 |
Connector |
2-109-6 |
6 |
A210111000199 |
9 |
Bolt M12×20GB5783 10.9 |
2-109-7 |
7 |
24000639 |
13 |
Washer |
2-109-8 |
8 |
60086357 |
6 |
Harness clamp |
2-109-9 |
9 |
A239900000066 |
90 |
Tie, Cable |
2-109-10 |
10 |
A210111000079 |
1 |
Bolt M6×16GB5783 |
2-109-11 |
11 |
60086355 |
2 |
Clamp, harness |
2-109-11 |
11 |
Modification or other |
2 |
Clamp, harness |
2-109-12 |
12 |
Modification or other |
1 |
Hose, rubber, liquid |
2-109-12 |
12 |
60001239 |
1 |
Hose, rubber, liquid |
2-109-13 |
13 |
60224079 |
1 |
Suction rubber tube |
2-109-13 |
13 |
Modification or other |
1 |
Suction rubber tube |
2-109-14 |
14 |
A210204000343 |
2 |
Screw |
2-109-15 |
15 |
A210444000001 |
2 |
Washer 14(GB1230) |
2-109-16 |
16 |
A210111000054 |
1 |
Bolt M16×55GB5783 10.9 |
2-109-17 |
17 |
A210111000101 |
4 |
Bolt M12×25GB5783 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-111-18 |
18 |
11222274 |
1 |
Bracket, compressor |
2-111-19 |
19 |
A210307000028 |
1 |
Nut M16GB617010 |
2-111-20 |
20 |
A230106000321 |
1 |
V-belt |
2-111-21 |
21 |
12288075 |
1 |
Adjusting Plate SY205C6C2K.1.8.2 |
2-111-22 |
22 |
B220203000007 |
1 |
Compressor |
2-111-22 |
22 |
Modification or other |
1 |
Compressor |
2-111-23 |
23 |
24000633 |
6 |
Washer |
2-111-24 |
24 |
A210108000097 |
4 |
Bolt M8×80GB5782 |
2-111-24 |
24 |
Modification or other |
4 |
Bolt M8×80GB5782 |
2-111-25 |
25 |
Modification or other |
1 |
Exhaust hose |
2-111-25 |
25 |
60305507 |
1 |
Exhaust hose |
2-111-26 |
26 |
24000632 |
8 |
Washer |
2-111-27 |
27 |
A210111000081 |
4 |
Bolt M6×25GB5783 |
2-111-28 |
28 |
60167256 |
1 |
Liquid rubber hose |
2-111-28 |
28 |
Modification or other |
1 |
Liquid rubber hose |
2-111-29 |
29 |
10368409 |
1 |
Bracket, drying bottle |
2-111-30 |
30 |
A210111000323 |
7 |
Bolt M8×25GB5783 10.9 |
2-111-31 |
31 |
A210111000082 |
2 |
Bolt |
2-111-32 |
32 |
A229900008784 |
1 |
Support, container, liquid storage |
2-111-32 |
32 |
Modification or other |
1 |
Support, container, liquid storage |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-113-33 |
33 |
A210204000340 |
2 |
Screw M8×16GB70.1 10.9 |
2-113-34 |
34 |
B229900005141 |
1 |
Container, liquid storage |
2-113-34 |
34 |
Modification or other |
1 |
Container, liquid storage |
2-113-35 |
35 |
A210111000343 |
4 |
Bolt M8×20GB5783 10.9 |
2-113-36 |
36 |
10368407 |
1 |
Bracket, condenser |
2-113-37 |
37 |
A220700000028 |
1 |
Assembly, condenser |
2-113-37 |
37 |
Modification or other |
1 |
Assembly, condenser |
2-113-38 |
38 |
60060565 |
15 |
Washer |
2-113-39 |
39 |
A210111000092 |
4 |
Bolt M8×35GB5783 |
2-113-40 |
40 |
10368408 |
1 |
Bracket, condenser |
2-113-41 |
41 |
60250669 |
1 |
Filter |
2-113-41 |
41 |
Modification or other |
1 |
Filter |
2-113-42 |
42 |
Modification or other |
1 |
Assembly, air conditioner unit |
2-113-42 |
42 |
60168171 |
1 |
Assembly, air conditioner unit |
2-113-43 |
43 |
A229900009481 |
1 |
Pipe, drainage |
2-113-43 |
43 |
Modification or other |
1 |
Pipe, drainage |
2-113-44 |
44 |
A210204000132 |
1 |
Screw M6×25GB70.1 |
2-113-45 |
45 |
60250668 |
1 |
Connected plate |
2-113-45 |
45 |
Modification or other |
1 |
Connected plate |
2-113-46 |
46 |
Modification or other |
1 |
Filter, air, inner |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-115-46 |
46 |
B222100000711 |
1 |
Filter, air, inner |
2-115-47 |
47 |
10473304 |
1 |
Electrical system, air conditioner |
2-115-47 |
47 |
Modification or other |
1 |
Electrical system, air conditioner |
2-115-48 |
48 |
60166393 |
3 |
Clamp, pipe |
2-115-49 |
49 |
12049464 |
1 |
The fixed bracket for the |
2-115-50 |
50 |
60149606 |
3 |
Harness clamp |
2-115-51 |
51 |
11779657 |
1 |
Sleeve, rubber |
2-115-52 |
52 |
A230200000170 |
2 |
Clamp |
2-115-53 |
53 |
13626481 |
1 |
rear cover plate component |
2-115-53 |
53 |
Modification or other |
1 |
rear cover plate component |
2-115-54 |
54 |
11908118 |
1 |
Combined seal pad of Air filter core |
2-115-55 |
55 |
11907017 |
1 |
Filter core cover plate |
2-115-56 |
56 |
24000511 |
4 |
Washer |

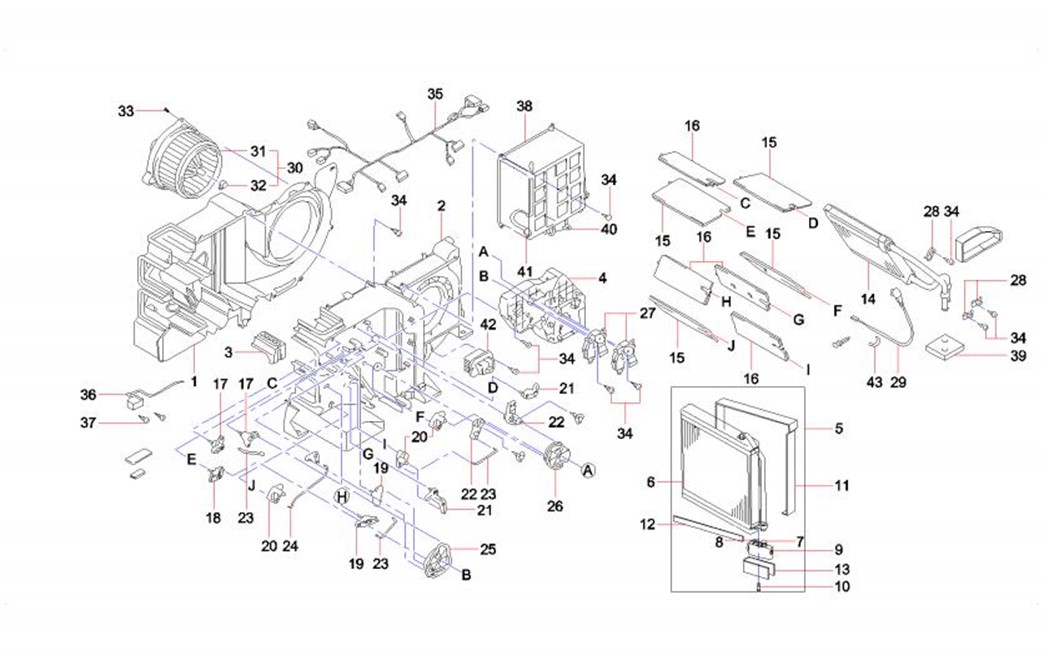

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-117-1 |
1 |
60153212 |
1 |
Outer shell, cooling motor group |
2-117-2 |
2 |
60153213 |
1 |
Outer shell, cooling motor group |
2-117-3 |
3 |
60153195 |
1 |
Plate |
2-117-4 |
4 |
60153196 |
1 |
Plate |
2-117-5 |
5 |
60153202 |
1 |
Evaporator assembly with parts |
2-117-6 |
6 |
60153218 |
1 |
Evaporator sub-assembly |
2-117-7 |
7 |
60153192 |
1 |
O-type ring |
2-117-8 |
8 |
60153193 |
1 |
O-type ring |
2-117-9 |
9 |
60153197 |
1 |
Valve, expansion |
2-117-10 |
10 |
60153215 |
2 |
Bolt |
2-117-11 |
11 |
60153203 |
1 |
Seal, insulation |
2-117-12 |
12 |
60153205 |
3 |
Seal, insulation |
2-117-13 |
13 |
60153204 |
1 |
Seal, insulation |
2-117-14 |
14 |
60153242 |
1 |
Core SUB, heater |
2-117-15 |
15 |
60049962 |
4 |
Door SUB |
2-117-16 |
16 |
60153216 |
4 |
Door SUB |
2-117-17 |
17 |
60049956 |
2 |
Rod SUB, connecting |
2-117-18 |
18 |
60049957 |
1 |
Rod SUB, connecting |
2-117-19 |
19 |
60049958 |
2 |
Rod SUB, connecting |
2-117-20 |
20 |
60049959 |
3 |
Rod SUB, connecting |
