识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-47-38

38

60286709

1

弹簧

spring

2-47-39

39

60286710

22

弹簧座

spring seat

2-47-40

40

60286711

11

间距螺栓

spacer bolt

2-47-41

41

60286712

11

挡块

stopper

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

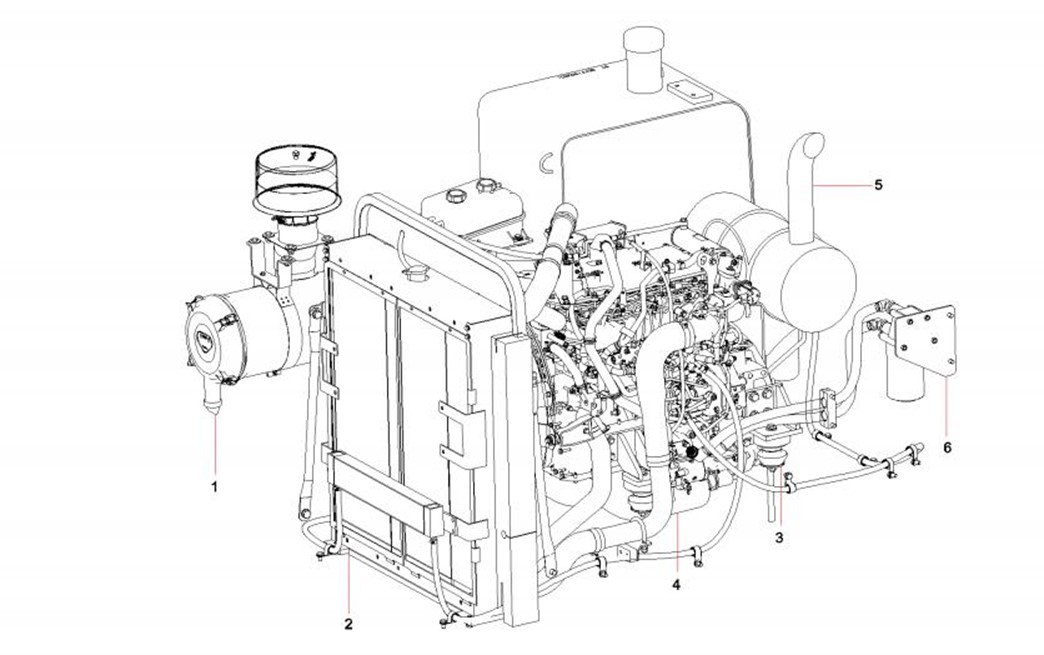

2-49-1

1

13346364

1

进气系统

intake system SY150W9I3K.1.3.4

2-49-2

2

13346468

1

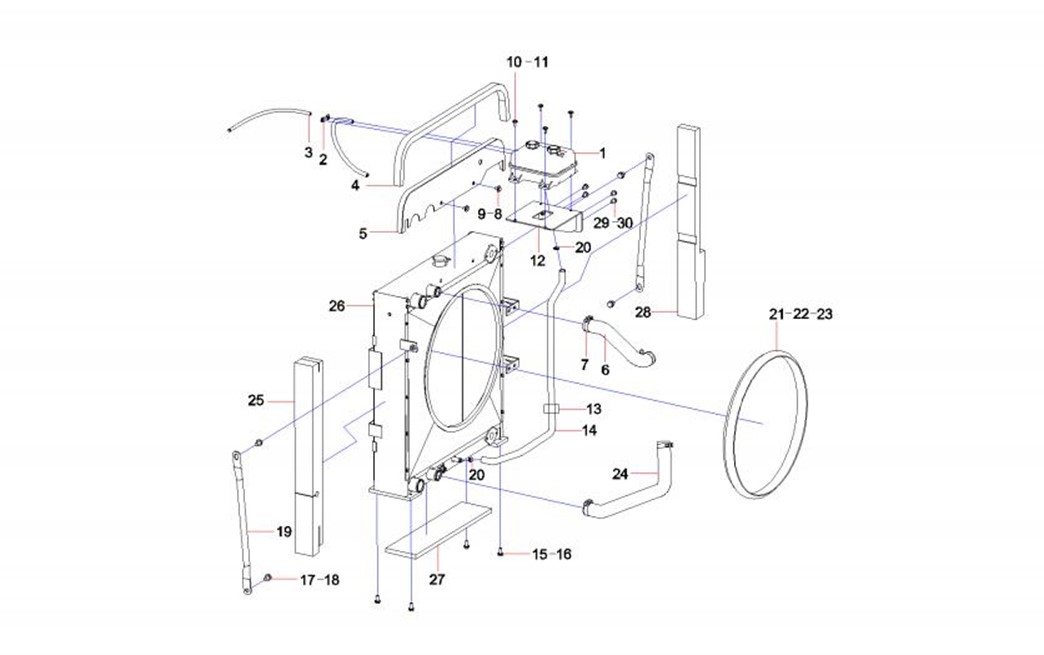

冷却系统

cooling system SY150W9I3K.1.3.3

2-49-3

3

13342910

1

减震与传动系统

Transmission & shock mitigation

2-49-4

4

60253521

1

发动机

Engine

2-49-5

5

13345098

1

排气系统

Exhaust system

2-49-6

6

13347026

1

燃油及润滑系统

Fuel and lubricating system

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

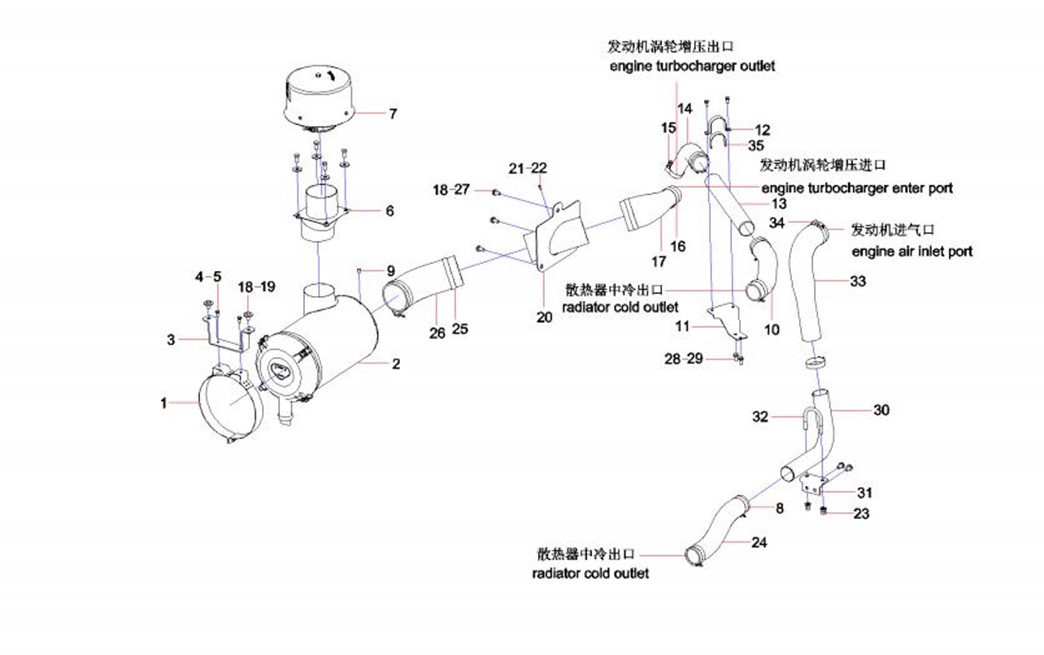

2-51-1

1

13346114

1

空滤抱箍

Air cleaner anchor ear

2-51-2

2

A222100000413

1

空气滤清器

Air filter

2-51-3

3

13346220

1

安装支架

Installation support

2-51-4

4

A210111000343

5

螺栓M8×20GB5783 10.9级

Bolt M8×20GB5783 10.9

2-51-5

5

60060565

5

垫圈8GB96.1 达克锈

Washer

2-51-6

6

13345726

1

进气钢管总成

air intake steel tube assembly

2-51-7

7

60255419

1

空气预滤器

Air precleaner

2-51-8

8

B229900001059

6

T型抱箍

Anchor ear, T-type

2-51-9

9

60148482

1

空滤传感器

Sensor, air cleaner

2-51-10

10

13346313

1

中冷进气胶管

intercooled air-intake hose

2-51-11

11

13777865

1

支架总成

bracket assem

2-51-12

12

13722058

1

支架

bracket SY135C9I3K.1.3.2-15

2-51-13

13

13346316

1

中冷进气钢管

steel tube SY150W9I3K.1.3.4-6

2-51-14

14

13346315

1

中冷进气胶管

intercooled air-intake hose

2-51-15

15

A229900002031

1

T型抱箍

Clamp

2-51-16

16

A229900003104

1

T型抱箍

Clamp

2-51-17

17

13346312

1

进气管

air intake tube SY150W9I3K.1.3.4-

2-51-18

18

A210111000101

11

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9

2-51-19

19

24000639

7

垫圈12GB97.1 达克锈

Washer

2-51-20

20

13345811

1

进气钢管总成

air intake steel tube assembly

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-53-21

21

A210204000115

1

螺钉

Screw M5×12GB70.1

2-53-22

22

24000630

1

垫圈 达克锈

Washer

2-53-23

23

A210307000031

4

螺母M12GB6170 10级

Nut M12GB6170 10

2-53-24

24

13424325

1

中冷出气管

intercooled exhaust pipe

2-53-25

25

A229900003293

3

T型抱箍

Clamp, T-Bolt

2-53-26

26

13346314

1

进气管

air intake tube SY150W9I3K.1.3.4-

2-53-27

27

60060548

6

垫圈12GB96.1 达克锈

Washer 12GB96.1

2-53-28

28

A210111000197

2

螺栓

Bolt M10×25GB5783 10.9

2-53-29

29

24000637

2

垫圈10GB97.1 达克锈

Washer

2-53-30

30

13424324

1

进气钢管

air-intake hose SY150W9I3K.1.3.4

2-53-31

31

13424868

1

支架

pallet SY150W9I3K.1.3.4-10

2-53-32

32

13424869

1

U型螺栓

U type bolt SY150W9I3K.1.3.4-11

2-53-33

33

13346311

1

中冷出气胶管

intercooled exhaust hose

2-53-34

34

A210855000052

1

T型抱箍

Anchor ear, T-type

2-53-35

35

13688163

1

护套

Protective sleeve

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

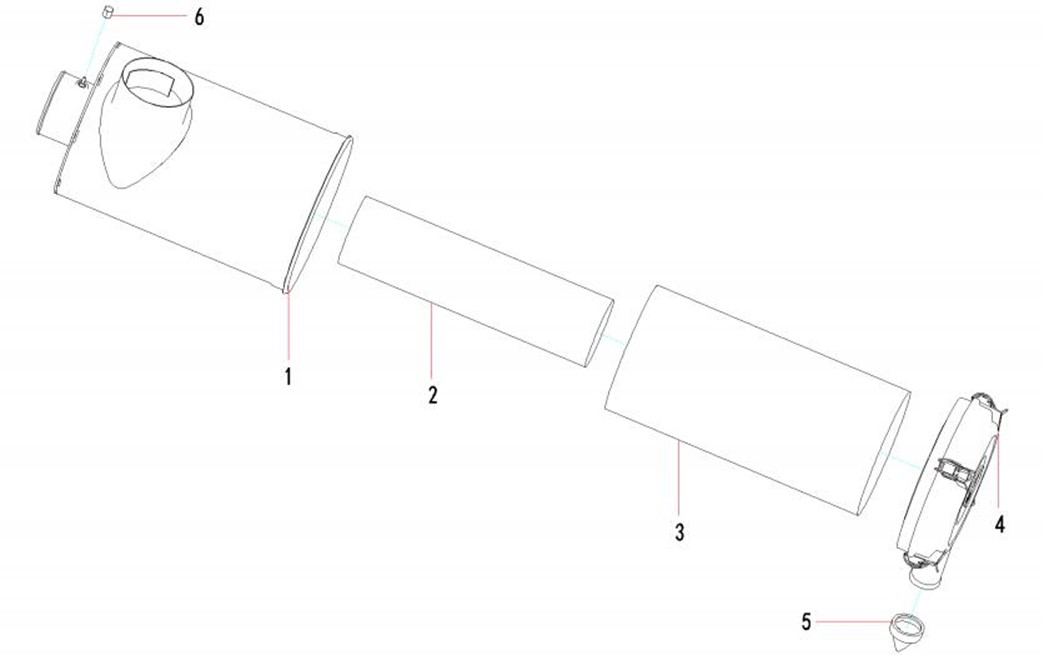

2-55-1

1

60278793

1

壳体总成

body assembly

2-55-2

2

A222100000429

1

空气滤清器安全滤芯

Safety cartridge,air filter

2-55-3

3

A222100000430

1

空气滤清器主滤芯

Main cartridge,air filter

2-55-4

4

60278794

1

后盖总成

cover assembly

2-55-5

5

60213978

1

集尘嘴

Collector, dust

2-55-6

6

60176026

1

堵头

Plug
