SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 05
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-31-21 |
21 |
13534131 |
1 |
left side beam sealant strip |
2-31-22 |
22 |
13458165 |
1 |
hydraulic valve installation plate |
2-31-23 |
23 |
13458166 |
1 |
bulldozing shovel valve installation |
2-31-24 |
24 |
A210111000088 |
44 |
Bolt M8×16GB5783 |
2-31-25 |
25 |
A210405000006 |
4 |
Washer 6GB97.1 |
2-31-26 |
26 |
13526615 |
1 |
fuel outlet protective sleeve |

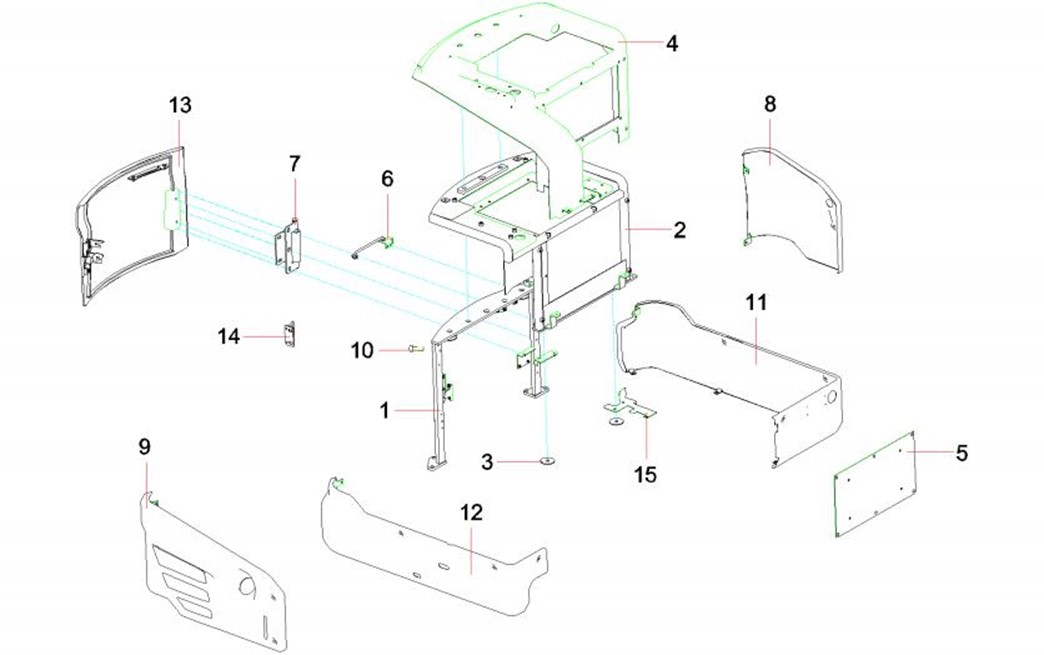

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-33-1 |
1 |
13003719 |
1 |
Covering parts support |
2-33-2 |
2 |
13549530 |
1 |
engine compartment framework |
2-33-3 |
3 |
13004265 |
4 |
Damper lower backup plate |
2-33-4 |
4 |
13549521 |
1 |
out cover plate components |
2-33-5 |
5 |
13004372 |
1 |
Engine compartment front cover |
2-33-6 |
6 |
13003635 |
1 |
Wind hook installation component |
2-33-7 |
7 |
13004387 |
1 |
Long hinge component |
2-33-8 |
8 |
13004758 |
1 |
Left covering parts component |
2-33-9 |
9 |
13004767 |
1 |
Right-hand covering parts |
2-33-10 |
10 |
A810502019056 |
2 |
Setscrew |
2-33-11 |
11 |
13004771 |
1 |
Left side beam component |
2-33-12 |
12 |
13004774 |
1 |
Right side beam component |
2-33-13 |
13 |
13004787 |
1 |
Rear hood component |
2-33-14 |
14 |
13004790 |
1 |
Lock component |
2-33-15 |
15 |
13004793 |
1 |
Platform clapboard |

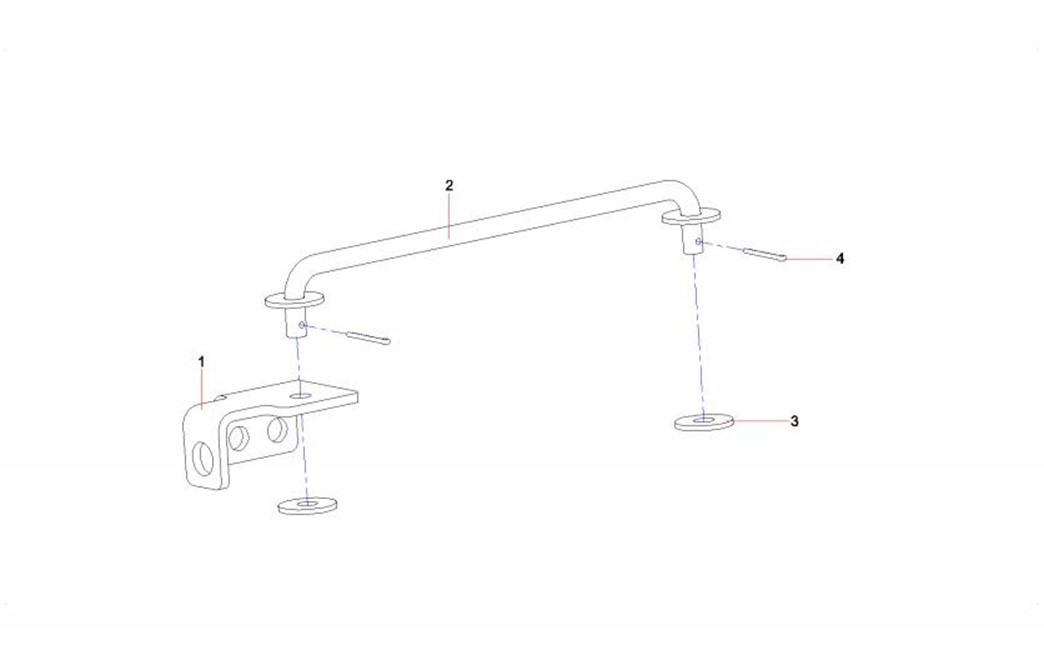

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-35-1 |
1 |
13003634 |
1 |
Limit mounting plate |
2-35-2 |
2 |
13003583 |
1 |
Catch |
2-35-3 |
3 |
A210404000005 |
2 |
Washer 8GB96.1 |
2-35-4 |
4 |
A210491000010 |
2 |
Pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-37-1 |
1 |
13004374 |
1 |
fixed plate for hinge |
2-37-2 |
2 |
13004380 |
1 |
hinge revolving plate |
2-37-3 |
3 |
13004386 |
1 |
Hinge axle |
2-37-4 |
4 |
A210405000001 |
3 |
Washer 12GB97.1 |
2-37-5 |
5 |
A210491000007 |
1 |
Pin 2.5×20GB91 |

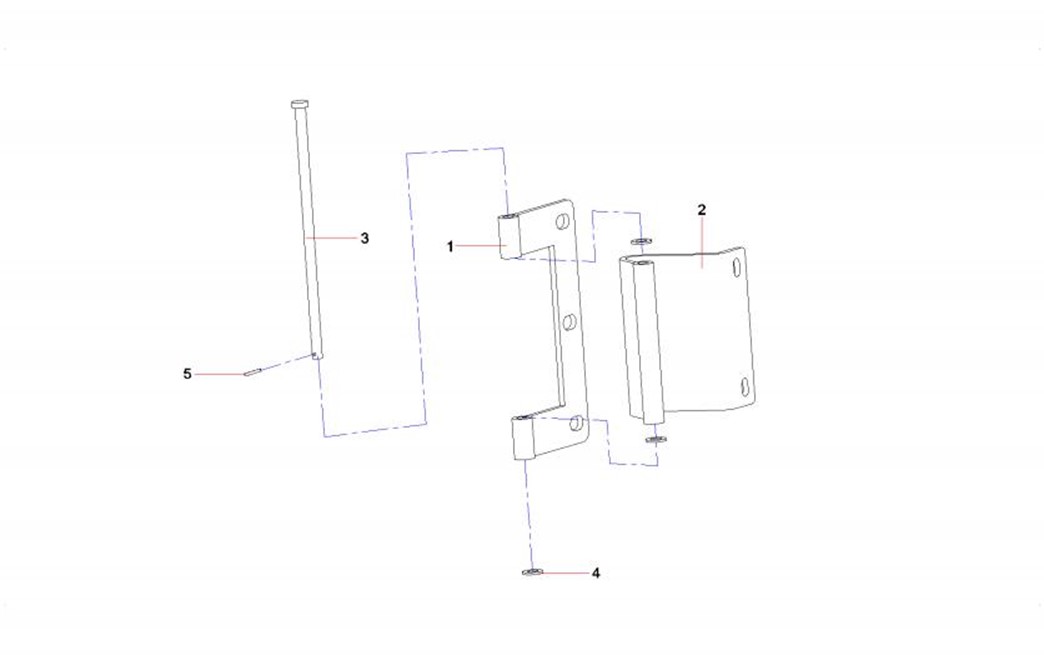

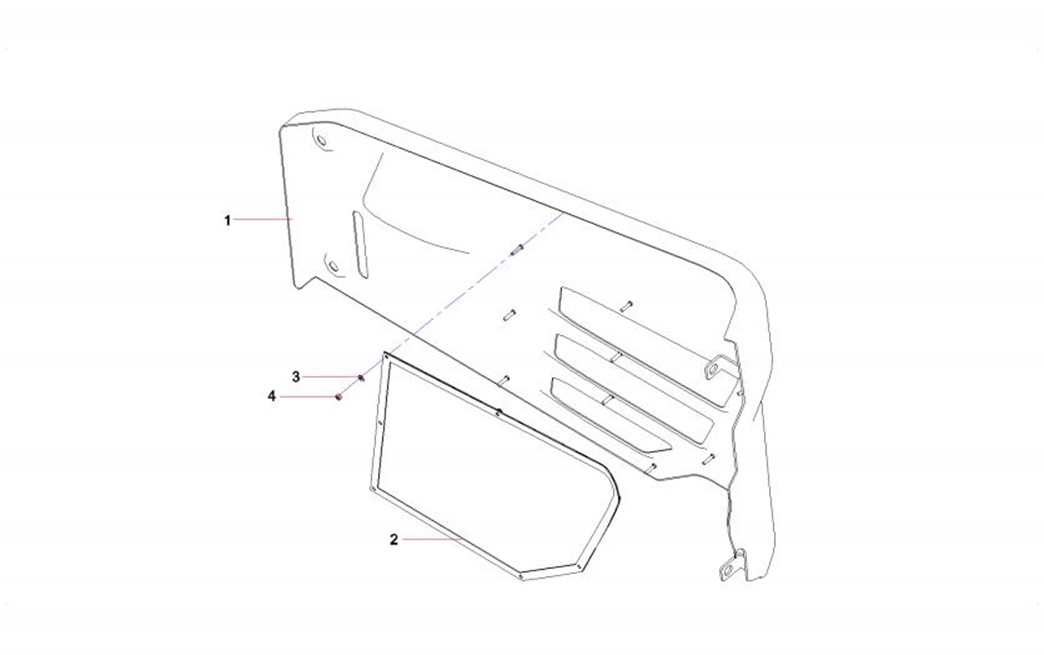

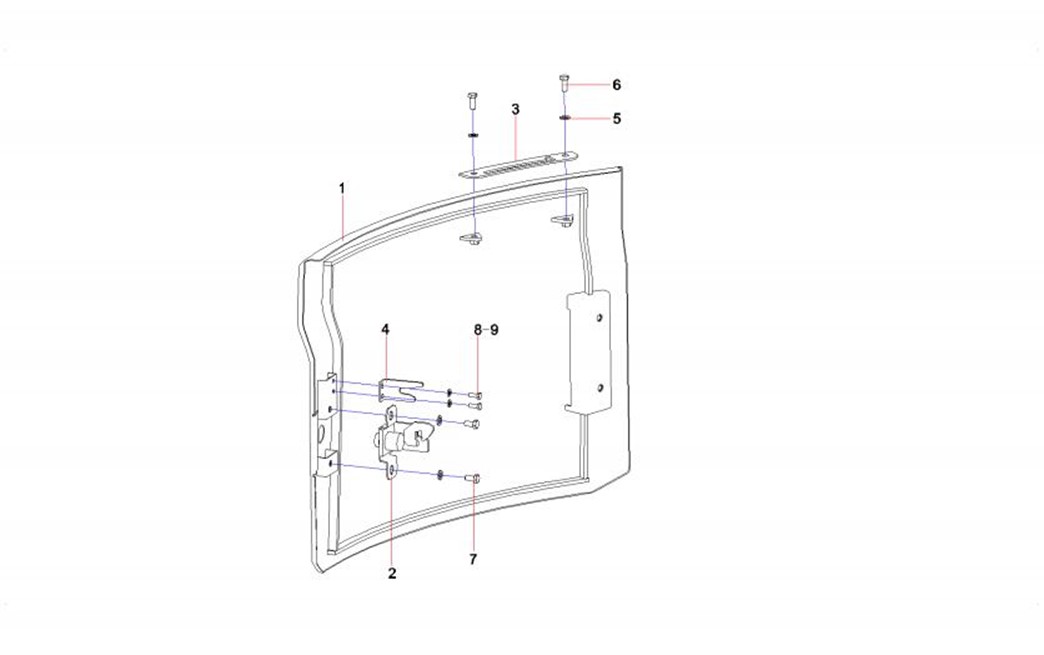

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-39-1 |
1 |
13004763 |
1 |
Right-hand covering parts |
2-39-2 |
2 |
13004766 |
1 |
Dust-proof net component |
2-39-3 |
3 |
A210405000004 |
9 |
Washer 4GB97.1 |
2-39-4 |
4 |
A210307000014 |
9 |
Nut M4GB6170 |
