SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 06
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-41-1 |
1 |
13004786 |
1 |
Rear hood component |
2-41-2 |
2 |
60225215 |
1 |
Bonnet Lock |
2-41-3 |
3 |
13106122 |
1 |
Wind hook sliding chute |
2-41-4 |
4 |
13088477 |
1 |
Limit mounting plate |
2-41-5 |
5 |
A210405000007 |
4 |
Washer 8GB97.1 |
2-41-6 |
6 |
A210111000089 |
2 |
Bolt M8×20GB5783 |
2-41-7 |
7 |
A210111000088 |
2 |
Bolt M8×16GB5783 |
2-41-8 |
8 |
A210405000006 |
2 |
Washer 6GB97.1 |
2-41-9 |
9 |
A210111000079 |
2 |
Bolt M6×16GB5783 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

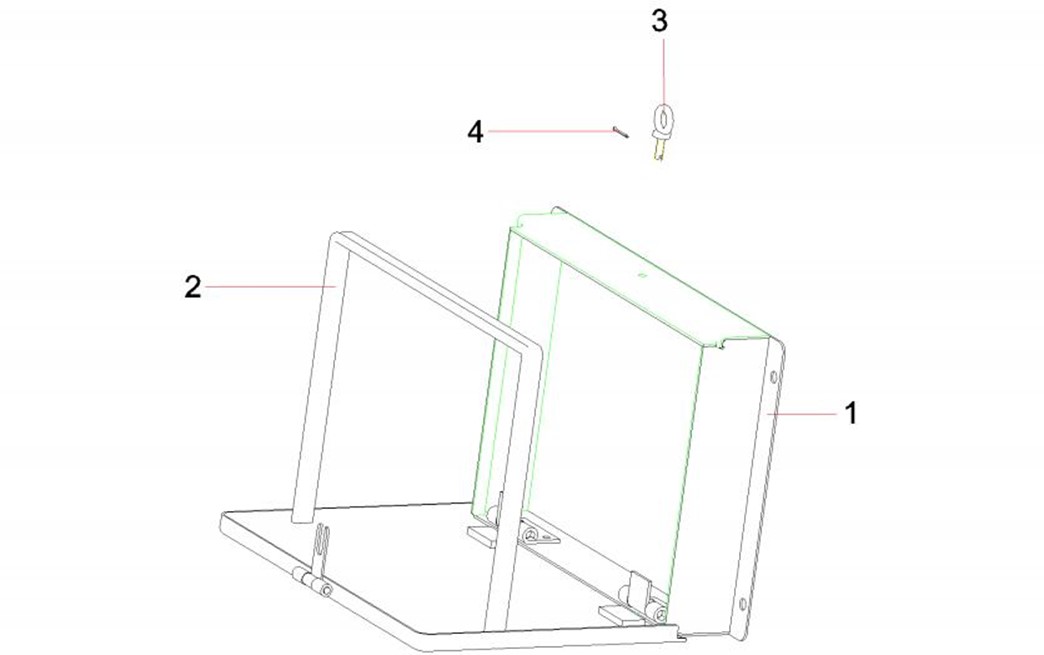

2-43-1 |
1 |
13400544 |
1 |
file case main body |
2-43-2 |
2 |
13400542 |
1 |
file case sealant strip |
2-43-3 |
3 |
13452425 |
1 |
batterfly anchor |
2-43-4 |
4 |
A210491000009 |
1 |
Pin 2×16GB91 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-45-1 |
1 |
12995053 |
1 |
Battery fixed plate |
2-45-2 |
2 |
12995054 |
2 |
Guide screw |
2-45-3 |
3 |
A210404000003 |
2 |
Washer 10GB96.1 |
2-45-4 |
4 |
A210307000017 |
2 |
Nut M10GB6170 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

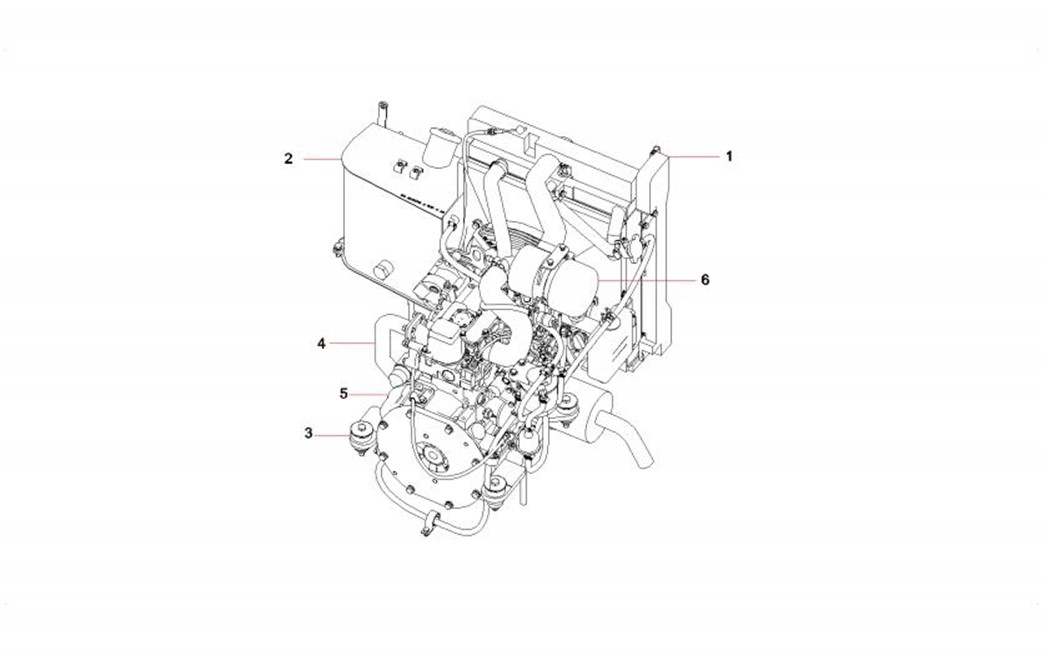

2-47-1 |
1 |
13015535 |
1 |
Cooling system |
2-47-2 |
2 |
13016440 |
1 |
Fuel system |
2-47-3 |
3 |
13014703 |
1 |
Transmission & shock mitigation |
2-47-4 |
4 |
13014918 |
1 |
Exhaust system |
2-47-5 |
5 |
60229006 |
1 |
Engine |
2-47-6 |
6 |
13016040 |
1 |
Intake System |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

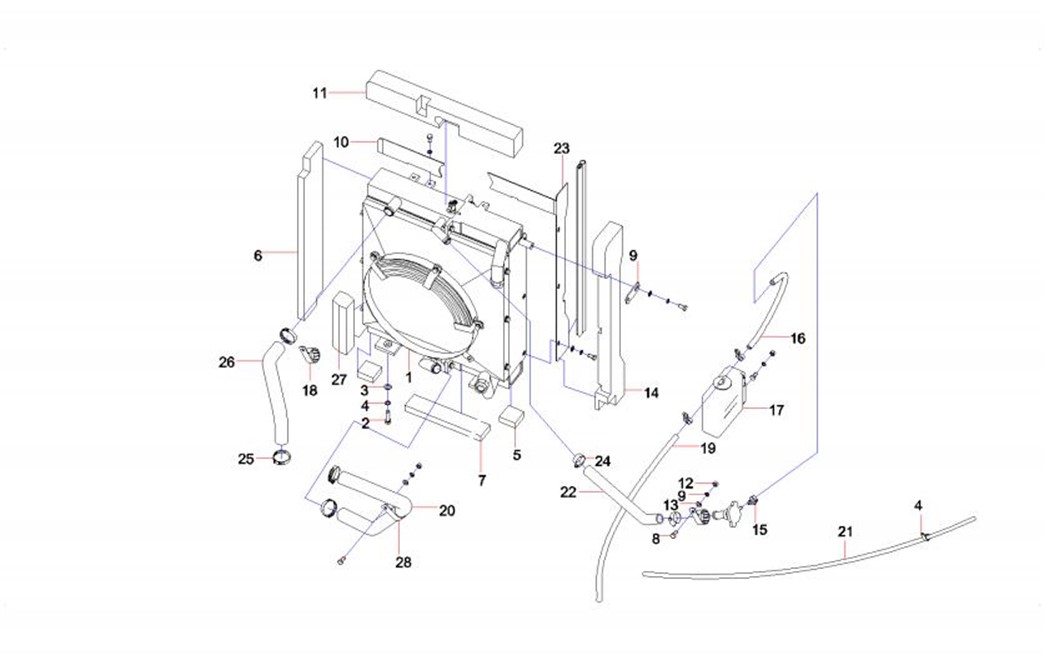

2-49-1 |
1 |
60225037 |
1 |
Radiator |
2-49-2 |
2 |
A210111000026 |
4 |
Bolt M10×35GB5783 10.9 |
2-49-3 |
3 |
24000637 |
4 |
Washer |
2-49-4 |
4 |
60208141 |
1 |
the fixity of line |
2-49-5 |
5 |
13106217 |
2 |
Sealing sponge |
2-49-6 |
6 |
12999700 |
1 |
Sealing sponge |
2-49-7 |
7 |
13106228 |
1 |
Sealing sponge |
2-49-8 |
8 |
A210111000342 |
15 |
Bolt M8×16GB5783 10.9 |
2-49-9 |
9 |
13106220 |
1 |
Plate |
2-49-10 |
10 |
13106225 |
1 |
Up seal plate |
2-49-11 |
11 |
13106227 |
1 |
Sealing sponge |
2-49-12 |
12 |
A210307000012 |
1 |
Nut M8GB6170 |
2-49-13 |
13 |
24000633 |
15 |
Washer |
2-49-14 |
14 |
13106226 |
1 |
Sealing sponge |
2-49-15 |
15 |
A229900001345 |
5 |
Clamp, hose |
2-49-16 |
16 |
13106223 |
1 |
Recruit water pipe |
2-49-17 |
17 |
60115933 |
1 |
Tank GP, reserve |
2-49-18 |
18 |
60086355 |
1 |
Clamp, harness |
2-49-19 |
19 |
13106224 |
1 |
Linking air pipe |
2-49-20 |
20 |
13106221 |
1 |
Sewer tube |
