SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 07
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-51-21 |
21 |
13204397 |
1 |
linking pipe SY16C3Y4W.1.3.3-15 |
2-51-22 |
22 |
13106222 |
1 |
Watering pipe |
2-51-23 |
23 |
13106244 |
1 |
Back seal plate assy |
2-51-24 |
24 |
A210855000008 |
2 |
Hoop |
2-51-25 |
25 |
21004575 |
4 |
Hose ring hoop |
2-51-26 |
26 |
13106216 |
1 |
Upper water pipe |
2-51-27 |
27 |
13106218 |
1 |
Sealing sponge |
2-51-28 |
28 |
60086357 |
1 |
Clamp, harness |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

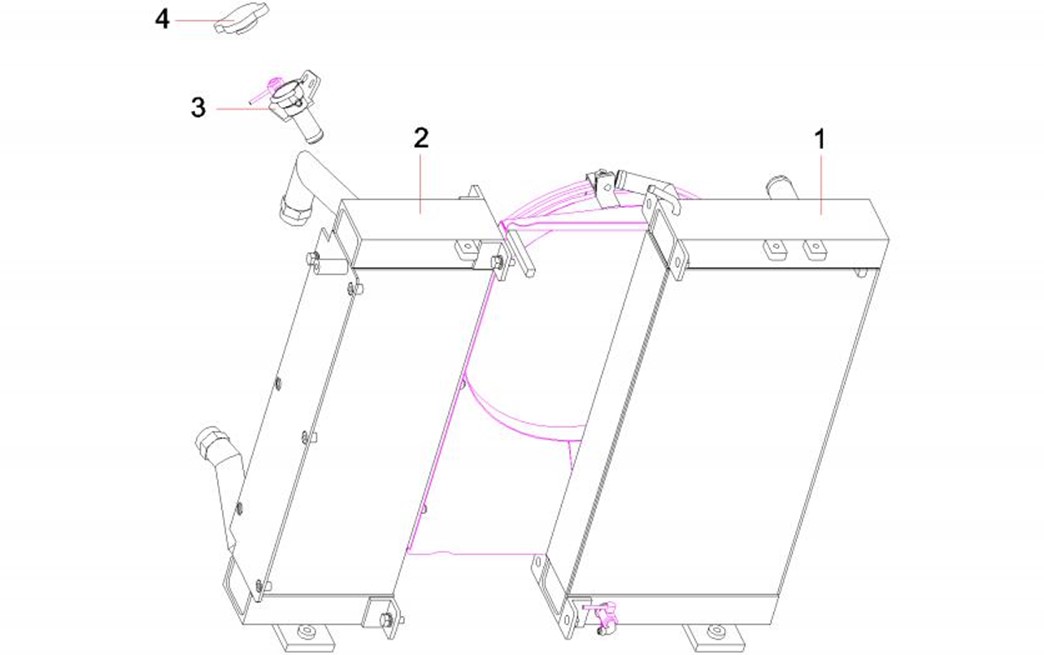

2-53-1 |
1 |
60257621 |
1 |
coolant radiator |
2-53-2 |
2 |
60257622 |
1 |
oil radiator |
2-53-3 |
3 |
60282647 |
1 |
micro seat |
2-53-4 |
4 |
60282648 |
1 |
pressure cover |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

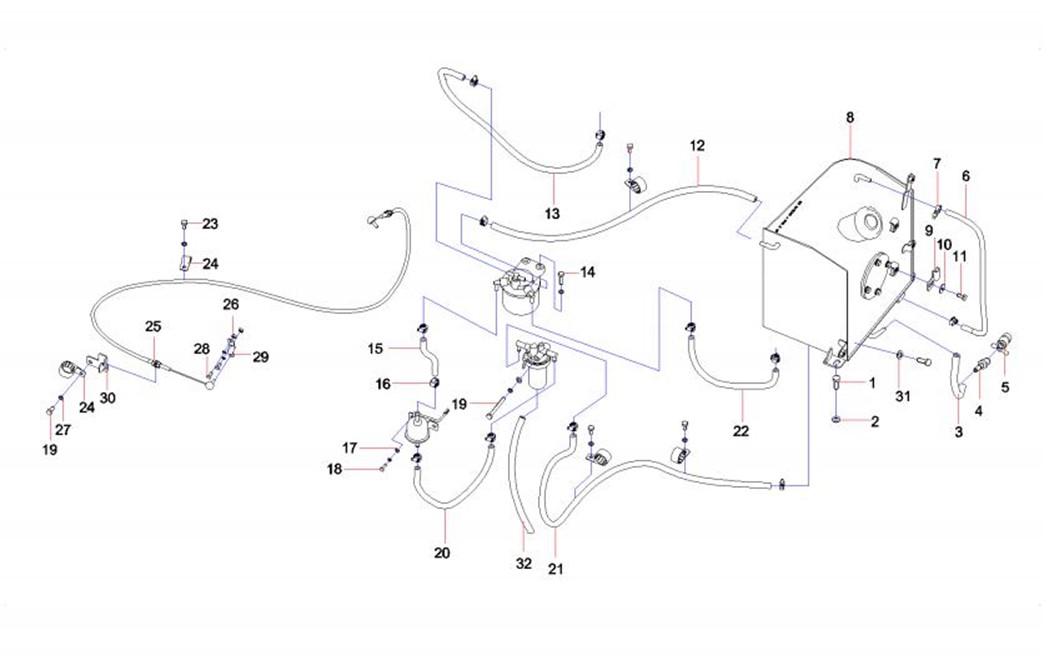

2-55-1 |
1 |
A210111000024 |
4 |
Bolt M10×30GB5783 10.9 |
2-55-2 |
2 |
24000637 |
3 |
Washer |
2-55-3 |
3 |
13473697 |
1 |
fuel tank drainage tube |
2-55-4 |
4 |
13055186 |
1 |
Water_out_joint |
2-55-5 |
5 |
A229900000882 |
1 |
Valve |
2-55-6 |
6 |
13101497 |
1 |
Fuel pipe |
2-55-7 |
7 |
A229900001345 |
3 |
Clamp, hose |
2-55-8 |
8 |
13100642 |
1 |
Fuel tank assy |
2-55-9 |
9 |
13216590 |
2 |
fixed nipSY16C3Y4W.1.3.5-14 |
2-55-10 |
10 |
60060565 |
2 |
Washer |
2-55-11 |
11 |
A210111000342 |
5 |
Bolt M8×16GB5783 10.9 |
2-55-12 |
12 |
13101498 |
1 |
Fuel pipe |
2-55-13 |
13 |
13101503 |
1 |
Fuel pipe |
2-55-14 |
14 |
A210111000293 |
2 |
Bolt M8×30GB5783 10.9 |
2-55-15 |
15 |
13101502 |
1 |
Fuel pipe |
2-55-16 |
16 |
21053360 |
14 |
Hose ring hoop |
2-55-17 |
17 |
24000632 |
4 |
Washer |
2-55-18 |
18 |
A210111000079 |
2 |
Bolt M6×16GB5783 |
2-55-19 |
19 |
A210111000096 |
1 |
Bolt M8×70GB5783 |
2-55-20 |
20 |
13101501 |
1 |
Fuel pipe |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-57-21 |
21 |
13101500 |
1 |
Fuel pipe |
2-57-22 |
22 |
13204398 |
1 |
fuel pipeSY16C3Y4W.1.3.5-13 |
2-57-23 |
23 |
A210111000012 |
1 |
Bolt M10×20GB5783 10.9 |
2-57-24 |
24 |
60086355 |
2 |
Clamp, harness |
2-57-25 |
25 |
60275558 |
1 |
throttle guy assembly |
2-57-26 |
26 |
A210307000016 |
2 |
Nut M6GB6170 |
2-57-27 |
27 |
24000633 |
6 |
Washer |
2-57-28 |
28 |
A210111000078 |
2 |
Bolt M6×12GB5783 |
2-57-29 |
29 |
13101496 |
1 |
Accelerator rocker |
2-57-30 |
30 |
13101499 |
1 |
Accelerator support |
2-57-31 |
31 |
60060546 |
1 |
Washer 10GB96.1 |
2-57-32 |
32 |
13303621 |
1 |
filter drainage tube |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

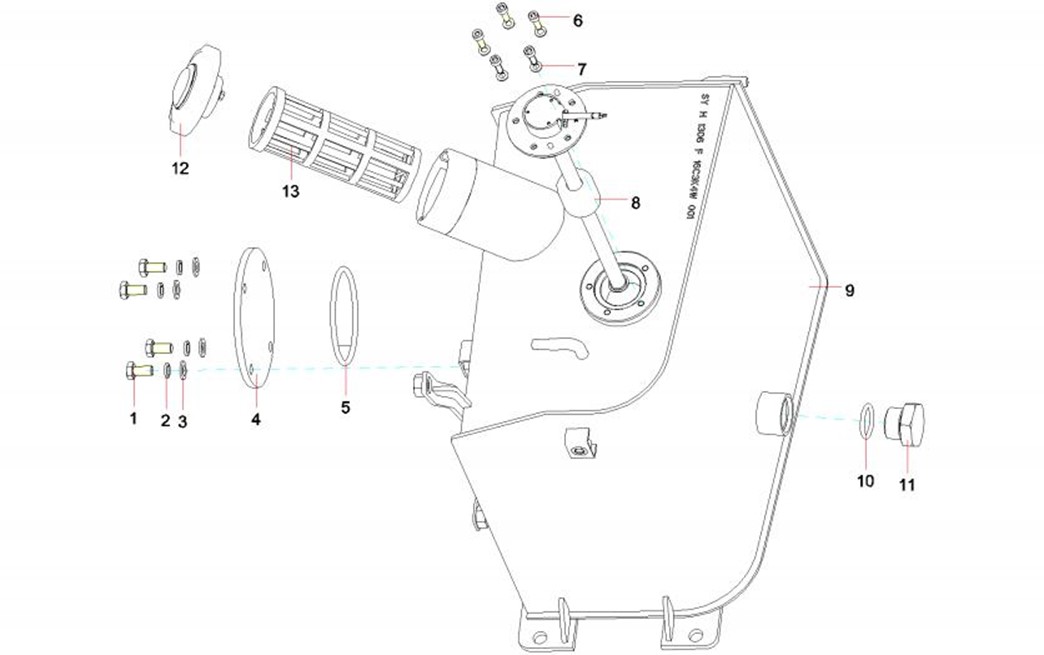

2-59-1 |
1 |
A210111000088 |
4 |
Bolt M8×16GB5783 |
2-59-2 |
2 |
A210401000017 |
4 |
Washer 8GB93 |
2-59-3 |
3 |
A210405000007 |
4 |
Washer 8GB97.1 |
2-59-4 |
4 |
13100584 |
1 |
Cleaning flange cap |
2-59-5 |
5 |
A210609000273 |
1 |
O-ring 75×5.3GB3452.1 |
2-59-6 |
6 |
A210204000116 |
5 |
Screw M5×16GB70.1 |
2-59-7 |
7 |
A210405000005 |
5 |
Washer 5GB97.1 |
2-59-8 |
8 |
60206742 |
1 |
Fuel Sensor |
2-59-9 |
9 |
13100630 |
1 |
Fuel tank |
2-59-10 |
10 |
B230101000356 |
1 |
O-ring 23.7×3.5JISB2401 |
2-59-11 |
11 |
10514225 |
1 |
Plug |
2-59-12 |
12 |
60304920 |
1 |
cover of fuel tank |
2-59-13 |
13 |
60304921 |
1 |
filter net |
