识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-13-1

1

13048176

1

铲斗油缸

Bucket oil cylinder

4-13-2

2

A210401000017

2

垫圈

Washer

4-13-3

3

B210334000012

2

螺母

Nut

4-13-4

4

60025560

2

胶管

Rubber hose

4-13-5

5

B230103005171

2

胶管

Rubber hose 2SN12-DKOL-800

4-13-6

6

B210780000089

2

堵头

Plug

4-13-7

7

13131062

2

钢管总成

Steel tube

4-13-8

8

A210404000005

2

垫圈

Washer

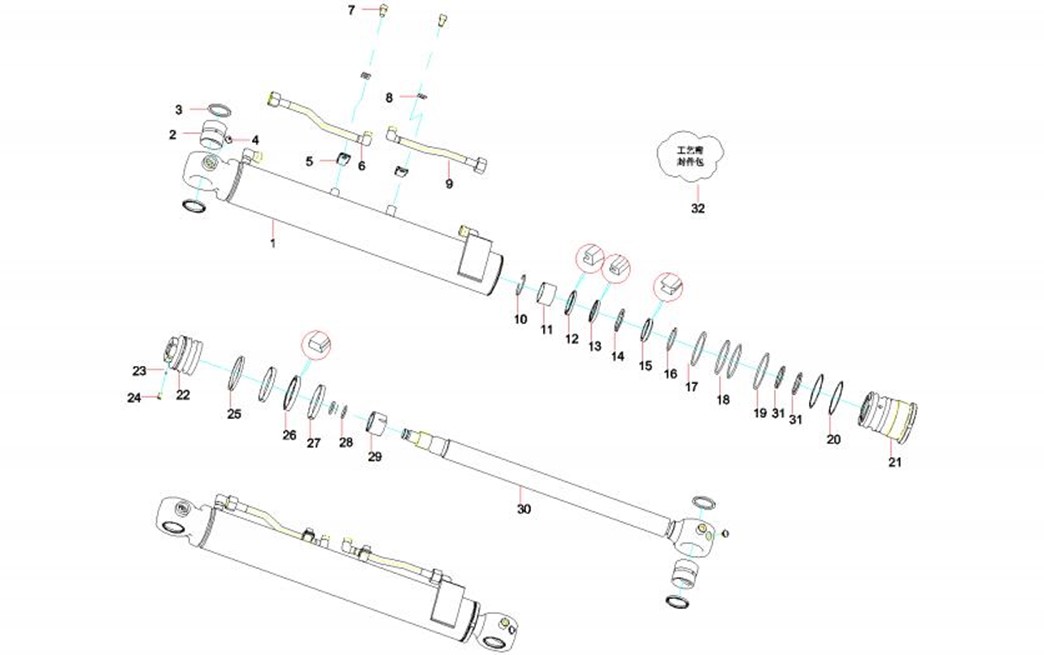

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-15-1

1

13047761

1

缸筒总成

Cylinder Assem. ZX35.3.1.2

4-15-2

2

13047577

2

衬套

Bush ZX35.3.1-6

4-15-3

3

60176726

4

DLI防尘圈

Dust Ring

4-15-4

4

A229900010158

2

油杯JB7940.1 不锈钢

Cup, oil

4-15-5

5

13046617

2

管夹

Pipe ClampZX35.3.2A-4

4-15-6

6

13047767

1

油管组件

Oil tube component ZX35.3.1.3

4-15-7

7

A210204000202

2

螺钉

Screw M10×16GB70.1

4-15-8

8

13039393

2

垫片

washerZX65.3.1B-13

4-15-9

9

13047769

1

油管组件二

Oil tube component II ZX35.3.1.4

4-15-10

10

60183946

1

挡圈

Retaining Ring

4-15-11

11

60180960

1

杯士45×50×30 日本大同

Bearing, oilless

4-15-12

12

60176730

1

HBY密封圈

Seal ring

4-15-13

13

60176732

1

IUH密封圈

Seal ring

4-15-14

14

60180968

1

BRT2支承环

4-15-15

15

60176723

1

DKBZ3防尘圈

Dust Ring

4-15-16

16

A210417000107

1

挡圈

Retaining ring

4-15-17

17

A210608000098

1

O形圈

O-ring 79.4×3.1JISB2401

4-15-18

18

B230101000709

2

O形圈

O-ring 78.97×3.53AS568-235

4-15-19

19

A210609000082

1

O形圈

O-ring 85×3.55GB3452.1

4-15-20

20

B229900001470

2

挡圈

Retaining ring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-17-21

21

13047573

1

导向套

guide sleeve ZX35.3.1-1

4-17-22

22

13047574

1

活塞

Piston ZX35.3.1-2

4-17-23

23

A210661000016

1

钢球

Ball, steel

4-17-24

24

A210206000004

1

螺钉

Screw M8×16GB77

4-17-25

25

60192119

1

UP防污圈

Anti-pollution loop

4-17-26

26

60184746

1

SPGW密封圈

Seal Ring

4-17-27

27

B230101001878

2

UP导向环

UP guide ring

4-17-28

28

B230101000580

2

O形圈

O-ring 24.99×3.53AS568-214

4-17-29

29

13047576

1

缓冲套

Bumper SleeveZX35.3.1-4

4-17-30

30

13047759

1

活塞杆

Piston Rod ZX35.3.1.1

4-17-31

31

B229900006227

2

挡圈

Ring,retainer

4-17-32

32

13048172

1

W31工艺密封件包

W31process sealer packageSS

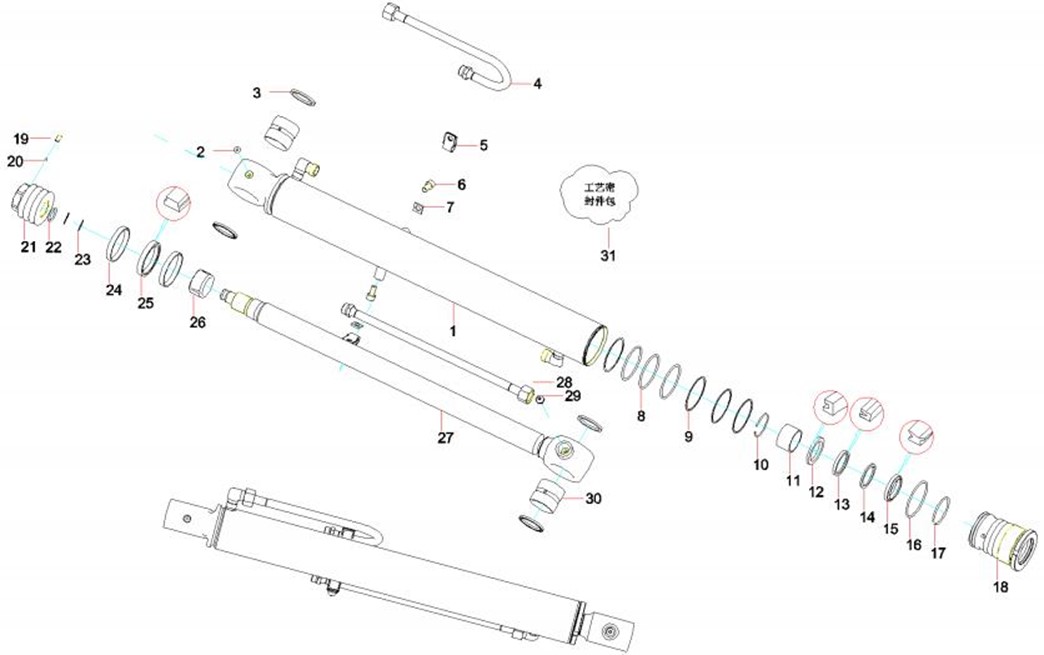

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-19-1

1

13048971

1

缸筒总成

Cylinder Assem. ZX35.3.2A.2

4-19-2

2

11261296

1

导套

Bushing, guide

4-19-3

3

60176726

4

DLI防尘圈

Dust Ring

4-19-4

4

13048308

1

油管组件

Oil Pipe Component ZX35.3.2A.4

4-19-5

5

13046617

2

管夹

Pipe ClampZX35.3.2A-4

4-19-6

6

A210204000196

2

螺钉

Screw

4-19-7

7

13039393

2

垫片

washerZX65.3.1B-13

4-19-8

8

B230101000414

3

O形圈

O-ring 69.44×3.53AS568-232

4-19-9

9

B229900001477

4

挡圈

Retaining ring

4-19-10

10

60183946

1

挡圈

Retaining Ring

4-19-11

11

60180960

1

杯士45×50×30 日本大同

Bearing, oilless

4-19-12

12

60176730

1

HBY密封圈

Seal ring

4-19-13

13

60176732

1

IUH密封圈

Seal ring

4-19-14

14

60180968

1

BRT2支承环

4-19-15

15

60176723

1

DKBZ3防尘圈

Dust Ring

4-19-16

16

A210609000135

1

O形 圈

O-ring 75×3.55GB3452.1

4-19-17

17

A210417000109

1

挡圈

Ring, retaining

4-19-18

18

13048966

1

导向套

Guide Sleeve ZX35.3.2A-1

4-19-19

19

A210206000004

1

螺钉

Screw M8×16GB77

4-19-20

20

A210661000016

1

钢球

Ball, steel

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-21-21

21

13048967

1

活塞

Piston ZX35.3.2A-2

4-21-22

22

A210609000155

1

O形圈

O-ring

4-21-23

23

24004190

2

挡圈

Ring,retainer

4-21-24

24

B230101001681

2

导向环

Ring, Wear

4-21-25

25

60035793

1

SPGW密封圈

Ring,seal

4-21-26

26

13048179

1

缓冲套

Bumper SleeveZX35.3.2A-3

4-21-27

27

13048970

1

活塞杆

Piston Rod ZX35.3.2A.1

4-21-28

28

13230055

1

油管组件一

Oil tube component I ZX35.3.2A.3

4-21-29

29

A229900010158

1

油杯JB7940.1 不锈钢

Cup, oil

4-21-30

30

13048180

1

衬套

Bush ZX35.3.2A-5

4-21-31

31

13059203

1

工艺密封件包

W32A process sealer
