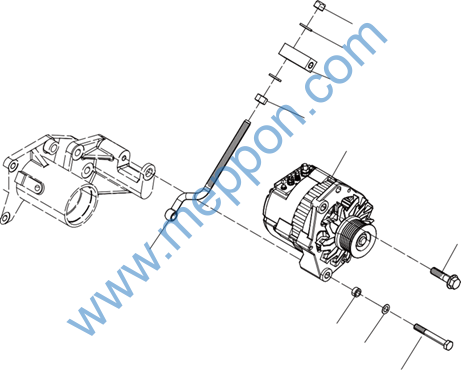

860167843 ALTERNATOR GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860131205    1    HEXAGON LOCK NUT

2 860529236    2    WASHER

3 860137115    1    TENSION BLOCK

4 860131199    1    NUT

5 860512137    1    ALTERNATOR

6 860137562    1    HEXAGON FLANGE BOLT

7 860137438    1    HEXAGON BOLT

8 860123510    1    SPRING WASHER

9 860144793    1    PRESSING BLOCK

10 860137118    1    SLEEVE,SCREW,&NUT SUB-ASSY METRIC

4

3

2

1

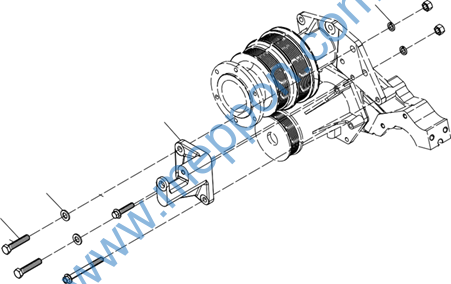

860167844 ALTERNATOR BRACKET GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860131743    2    HEXAGON BOLT

2 860501269    2    FLAT WASHER

3 860148112    1    ALTERNATOR BRACKET

4 860123287    2    SPRING WASHER

5

1

4

2

3

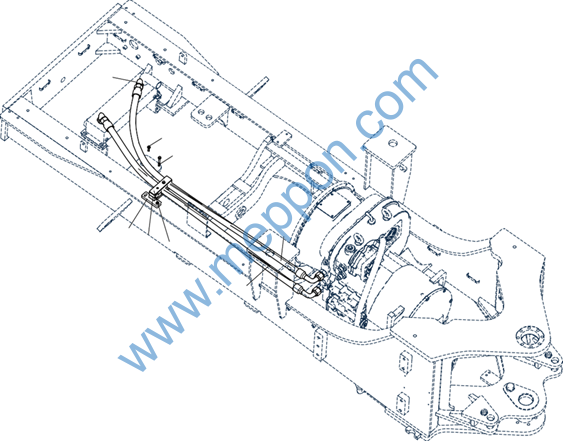

251809000 HYDRAULIC OIL RADIATOR PIPELINE

251810699 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803300172    5    FERRULE Φ30    TJBC

2 805047997    5    BOLT M8×12(DACROMET)    GB/T16674.1-2004

3 803169547    1    HOSE ASSEMBLY

4 803166749    2    SPLICE

5 252101225    1    HOSE ASSEMBLY

1

8

7

6

2    3    4

5

251805633 DOUBLE VARIABLE OIL DISPERSION LINE

251810699 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803163650    2    EW28LOMDA3C ELBOW

2 251805634    1    MOUNTING PLATE

3 252904955    2    PIPE CLAMP I

4 252904825    1    CHECKING SHEET

5 252900989    1    HOSE ASSEMBLY

6 252900988    1    HOSE ASSEMBLY

7 805048003    2    BOLT M8×70(DACROMET)    GB/T16674.1-2004

8 805004760    2    BOLT M8×30(DACROMET)    GB/T16674.1-2004

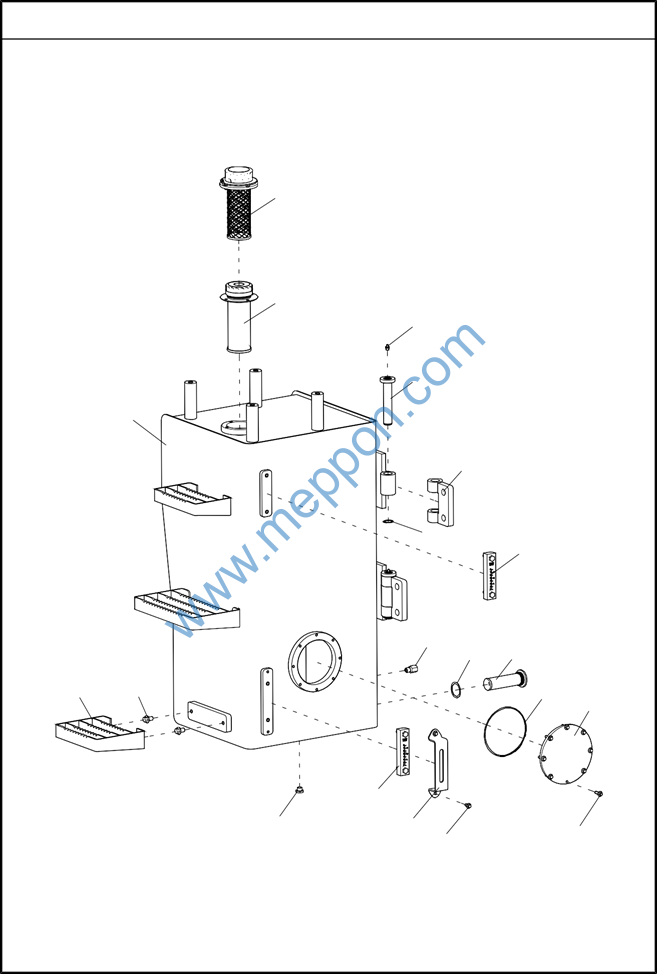

251808997 FUEL TANK INSTALLATION ASSY

251810699 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251808939    1    FUEL TANK ASSY    286

2 805048035    7    BOLT M16×50    GB/T16674.1-2004

3 805338273    7    SPRING WASHER 16    GB/T96.1-2002

4 803199328    4    FERRULE Φ24

5 805004755    3    BOLT M8×16 (DACROMET)    GB/T16674.1-2004
