251808939 FUEL TANK ASSY

251808997 FUEL TANK INSTALLATION ASSY

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

251807983

1

BODY OF THE OIL TANK



2

805047714

2

BOLT M12×20 (DACROMET)

GB/T16674.1-2004



3

251807994

1

LADDER



4

803184623

1

PLUG SCREW

QC/T385-1999



5

803164214

2

LIQUID LEVEL METER



6

251808811

1

SLEWING DETECT



7

805004755

2

BOLT M8×16 (DACROMET)

GB/T16674.1-2004



8

805004717

8

BOLT M8×25

GB/T16674.1-2004



9

251808558

1

COVER



10

803401168

1

ORING164.69×3.53

260N552-90



11

250200471

1

OIL FILTER ASSEMBLY



12

803164100

1

WASHER 45



13

252611372

1

SPLICE



14

805400049

2

SEPARATE BUSH 28

GB/T894.1-1986



15

251801072

2

HINGE



16

251801069

2

PIN



17

801100336

2

OIL CUP M10×1

JB/T7940.1-1995



18

803164217

1

OIL FILLER FILTER



19

803176572

1

AIR FILTER

















4





1





2





3





252100842 ACCELERATOR CONTROL

251810699 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803004130    1    ACCELERATOR CONTROL VALVE

2 805135720    2    NUT M6(DACROMET)    GB/T6177.1-2000

3 252100843    1    SOFT SHAFT BRACKET

4 805047993    5    BOLT M6×25 (DACROMET)    GB/T16674.1-2004





















1

16

15

14

13



12    11    2

10    3

9



8



7





6    5    4





251811326 CAB SYSTEM

251811519 WHEEL LOADER

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

251811309

1

CAB ASSEMBLY



292

2

801973967

1

SEAT



3

805004763

4

BOLT M10×25(DACROMET)

GB/T16674.1-2004



4

252919506

4

UNDERFRAME CROSSTIE PORT LID



5

252920317

1

FLOORING MAT



300

6

252911124

1

JOYSTICK HOLE COVER PLATE



7

805004699

4

BOLT M12×30

GB/T16674.1-2004



8

251808376

1

STEERING COLUMN ASSEMBLY



302

9

805004713

7

BOLT M6×20(DACROMET)

GB/T16674.1-2004



10

252914453

1

A/C COVER ASSEMBLY



11

805048016

1

BOLT M12×20 (DACROMET)

GB/T16674.1-2004



12

805048020

3

BOLT M12×50 (DACROMET)

GB/T16674.1-2004



13

252917034

1

CONTROL BOX BRACKET



14

252911920

1

OPERATOR BOX ASSY



15

805100273

7

SCREW M5×12

GB/T818-2000



16

252919763

1

BAFFLE PLATE








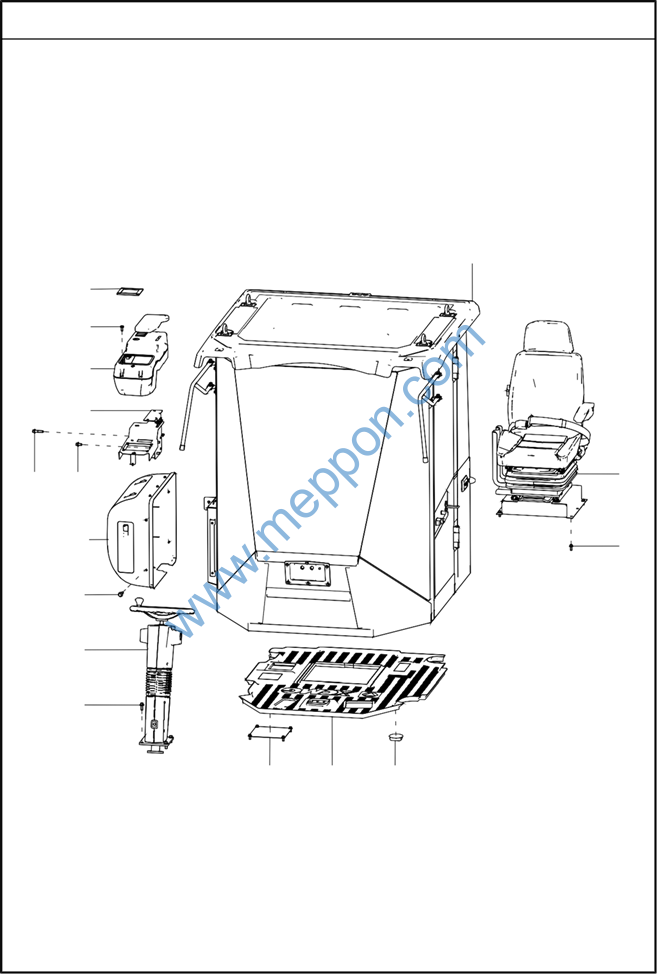

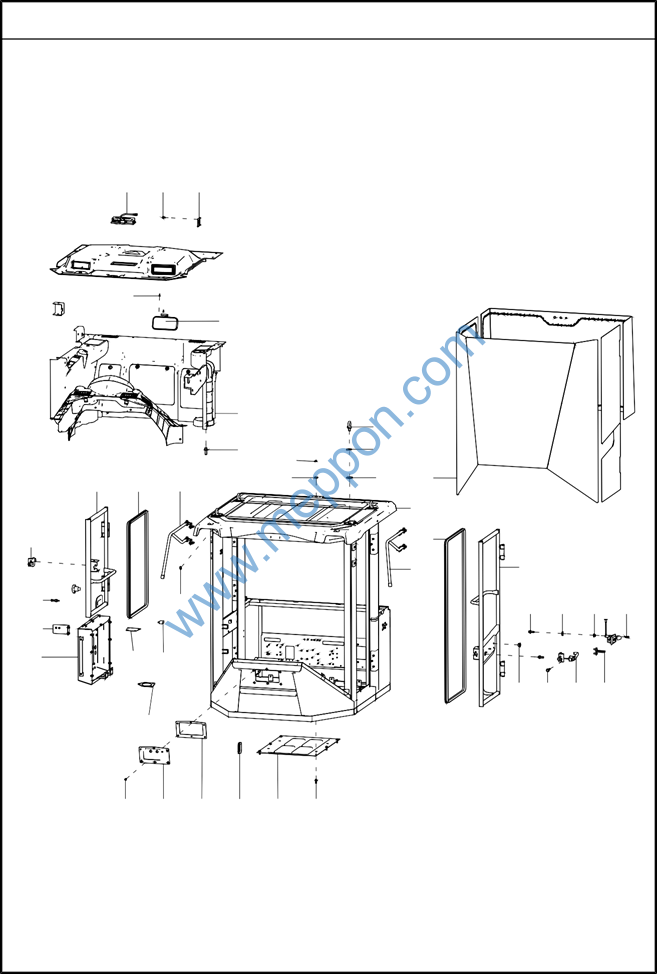

251811309 CAB ASSEMBLY











3    4    5







2

1









35    36    37

34



33    38

32

31    40 39

6

7    42

8

11

10

9    12

13

14

15







16

17 18









19 20



24 23 22 21

41





30    29    28    27    26    25





251811309 CAB ASSEMBLY

251811326 CAB SYSTEM

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

252608605

1

SPHERICAL REARVIEW MIRROR ASSEMBLY



2

805101871

2

SCREW M5×16

GB/T6560-1986



3

253401276

1

TOP LAMP



4

805101907

4

BOLT

GB/T845-1985



5

269901790

1

LABEL



6

252919319

1

INNER SETS



296

7

805004756

15

BOLT M8×20 (DACROMET)

GB/T16674.1-2004



8

252919092

2

RUBBER COVER



9

252919401

4

FLYING RING SEALING PAD



10

805338273

4

SPRING WASHER 16

GB/T96.1-2002



11

805140648

4

SCREW M16

GB/T825-1988



12

252919318

1

GLASS ASSY



298

13

251811327

1

WELDING ASSEMBLY OF THE CAB



14

252919320

1

MFJT-GR180SEALED LINE



15

252919035

1

LEFT REARVIEW MIRROR BRACKET



16

252919264

1

LEFT DOOR ASSY



17

805004709

15

BOLT M6×16(DACROMET)

GB/T16674.1-2004



18

805300083

4

GASKET 6

GB/T96.1-2002



19

805135720

7

NUT M6(DACROMET)

GB/T6177.1-2000



20

227100142

4

SCREW ST4.2×16-C-H

GB/T845-1985



21

252910835

1

LEFT SPRING LOCK ASSEMBLY



22

252910833

1

LEFT LOCK



23

805047993

7

BOLT M6×25 (DACROMET)

GB/T16674.1-2004



24

805203166

3

NUT M8

GB/T6177.1-2000



25

805004763

14

BOLT M10×25(DACROMET)

GB/T16674.1-2004



26

252919390

1

SEAT COVER PLATE



27

252911139

1

JT-07-02 ELECTRIC DEVICE TRIM BAR (0.3M)

500KV.10.1.7-5



28

252910832

1

ID SEAL








251811309 CAB ASSEMBLY











3    4    5







2

1









35    36    37

34



33    38

32

31    40 39

6

7    42

8

11

10

9    12

13

14

15







16

17 18









19 20



24 23 22 21

41





30    29    28    27    26    25





251811309 CAB ASSEMBLY

251811326 CAB SYSTEM

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

29

252911131

1

WIPER PANEL ASSEMBLY



30

805004755

15

BOLT M8×16 (DACROMET)

GB/T16674.1-2004



31

252914439

1

A/C FIXING PLATE ASSEMBLY



32

252914430

1

MOUNTING BRACKET ASSEMBLY



33

802156214

1

RIGHT LOCATING LOCK



34

252911669

1

RIGHT WINDOW LOCK ASSEMBLY



35

252919265

1

RIGHT WINDOW ASSEMBLY



36

252919322

1

MFJT-GR180R WINDOW SEAL



37

252919034

1

RIGHT REARVIEW MIRROR BRACKET



38

251807000

2

HARNESS PROTECTIVE SLEEVE



39

801541541

1

ENGINEERING VEHICLE LOCK



40

252116706

1

COVER



41

251811411

1

BASE PLATE



42

801938303

1

RUBBER COVER







252919319 INNER SETS









1











15



14

13    2





3





4

5

6





12

11    8    7



10    9





252919319 INNER SETS

251811309 CAB ASSEMBLY

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

252919720

1

COVER ASSEMBLY



2

252911926

1

RADIO/AUDIO PLAYER PANEL



3

252911924

1

LEFT DOOR LOCK BOX



4

252911923

1

LEFT SIDE WALL ASSEMBLY



5

252911930

1

REAR ASSEMBLY



6

252911921

1

RIGHT SIDE WALL ASSEMBLY



7

252911927

1

LEFT GUARD PLATE



8

252911931

1

FRONT COAMING ASSEMBLY



9

252914604

1

RIGHT FRONT AIR DUCT



10

252911929

1

RIGHT GUARD PLATE



11

252914567

1

RIGHT MAIN DUCT



12

252914568

1

RIGHT REAR DUCT



13

252919321

1

RIGHT REAR LOCK BOX



14

252911928

1

RIGHT WINDOW LOCK BOX



15

802157618

1

HOOK
