XCMG ZL50GN WHEEL LOADER PARTS MANUAL 25
|
860523188 VALVE NECHNISM PART 800152539 ENGINE |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
860137690 |
1 |
O-RING |
||
|
2 |
860137679 |
1 |
VALVE NECHNISM PART |
||
|
3 |
860137456 |
12 |
ROD PART |
||
|
4 |
860137457 |
12 |
VALVE LIFTER |
||
|
5 |
860137682 |
6 |
SWING ARM PART |
||
|
6 |
860137683 |
6 |
SWING ARM PART |
||
|
7 |
860137681 |
5 |
SPRING |
||
|
8 |
860137684 |
2 |
FLAT WASHER |
||
|
9 |
860137685 |
2 |
SPRING |
||
|
10 |
860137686 |
2 |
CHECK RING A TYPE |
||
|
11 |
860137680 |
2 |
BULKHEAD |
||
|
12 |
860522771 |
2 |
NUT |
||
|

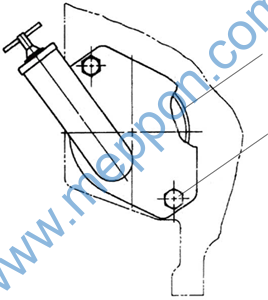

860523189 FILLER PART |
|
2
4 5 |
|
860523189 FILLER PART 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860136698 1 O-RING |
|
2 860137662 2 SCREW |
|
3 860117746 1 COVER PART |
|
4 860137414 1 CIRCLIP |
|
5 860137412 1 SUPPLY TUBE ASSY |

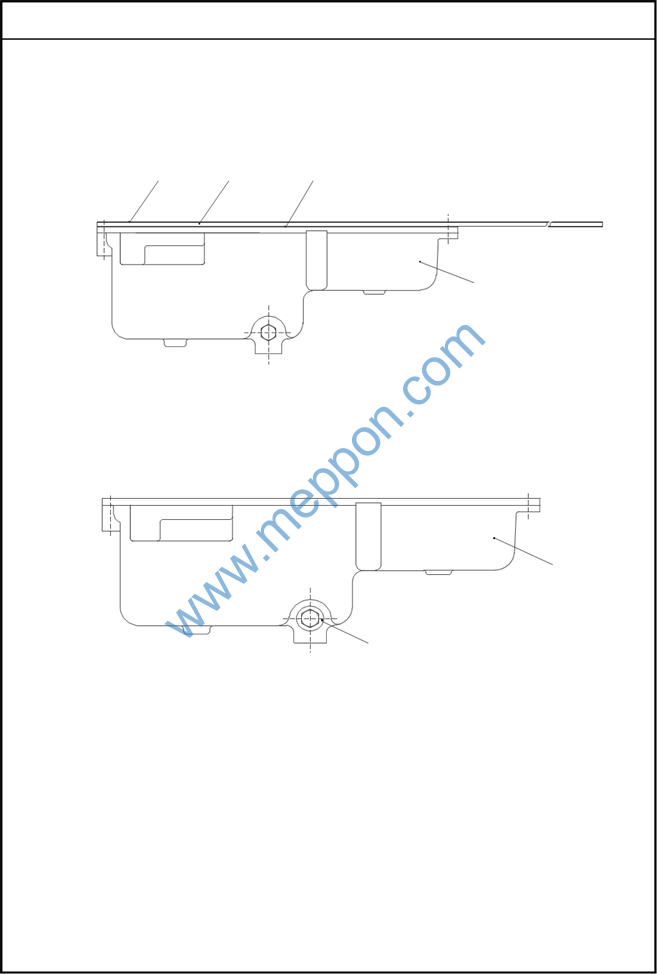

860523190 OIL SUMP ASSY
1 2 3
4
5
6
|
860523190 OIL SUMP ASSY 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860113001 1 GASKET |
|
2 860137501 1 WELDING PART |
|
3 860113002 1 SPACER |
|
4 860137502 1 OIL PAN PART |
|
5 860522772 1 OIL PAN |
|
6 860522773 1 OIL DRAINAGE PLUG |

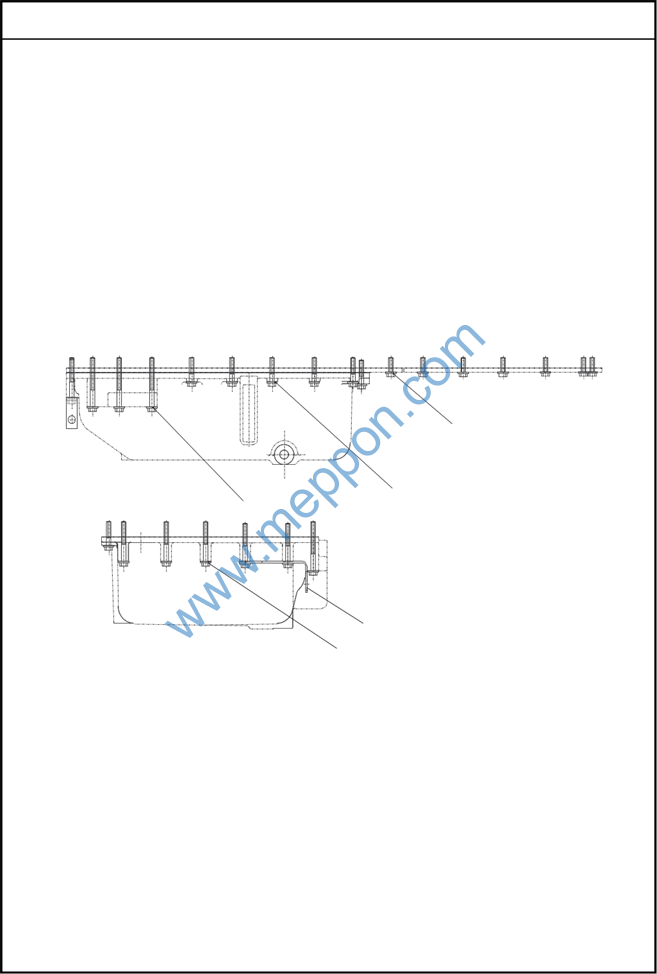

860523191 TIGHTENING PART
4
1, 2 3
5
6
|
860523191 TIGHTENING PART 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860137505 3 HEXAGON BOLT |
|
2 800150237 46 FLAT WASHER |
|
3 860137506 20 HEXAGON BOLT |
|
4 860137504 18 HEXAGON FLANGE NUT |
|
5 860137202 1 FIXING CLAMP |
|
6 860137507 5 HEXAGON BOLT |
|

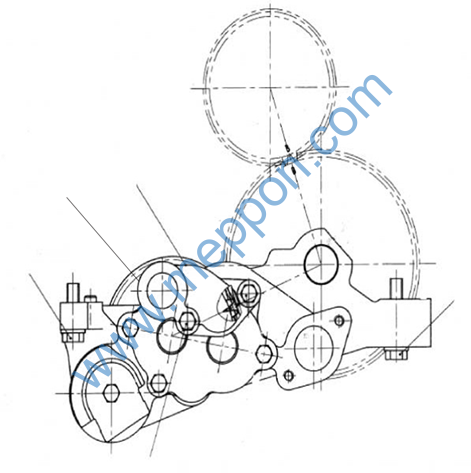

860523192 PUMP 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 800150237 4 FLAT WASHER |
|
2 860137559 2 SLEEVE,SCREW,&NUT SUB-ASSY METRIC |
|
3 860137278 1 SPACER |
|
4 860137279 1 ASSY-SUCTION TUBE |
|
5 860137561 3 HEXAGON BOLT |
|
6 860137562 1 HEXAGON FLANGE BOLT |
|
7 860138034 1 PUMP ASM |
|

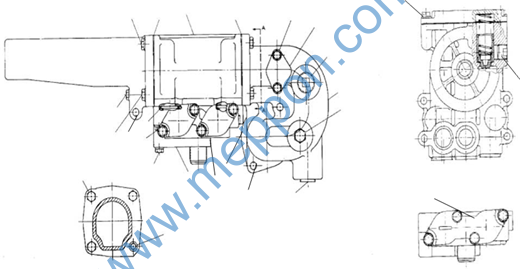

860523193 FILTER PART |
|
10,11 13 20 18 3 , 6 9 15 6 ,2281 ,25 22 7,25 21 4 5 2,6 14 19 23 |
