252120372 AIR CONDITIONING SYSTEM

252116885 50GNV(I) WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252914776    1    EVAPORATOR ASSY    312

2 252117723    1    COMPRESSOR ASSY    316

3 252917032    1    CONDENSER SUBASSEMBLY    318

4 252117722    1    AIR-CONDITIONING ELECTRICAL GROUP    322

5 252120369    1    JOINT AND PIPE    324

252914776 EVAPORATOR ASSY

3    1

2

252914776 EVAPORATOR ASSY

252120372 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

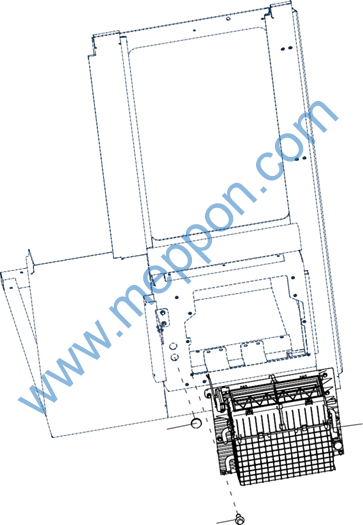

1 803595430    1    HVACASSY    314

2 805004756    8    BOLT M8×20 (DACROMET)    GB/T16674.1-2004

3 253200690    1    RUBBER COVER

803595430 HVACASSY

8

7

6    2

1

5

4

9    3

2

10

803595430 HVACASSY

252914776 EVAPORATOR ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

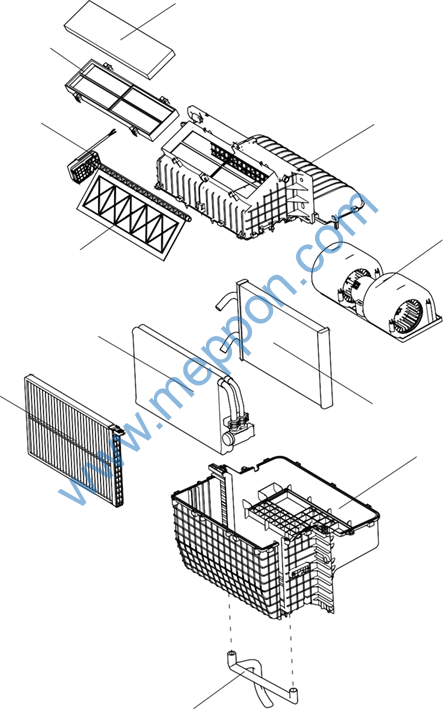

1 860152443    1    EVAPORATING MACHINE

2 860152441    1    ASSEMBLY OF SHELL

3 860152442    1    THE HEATER CORE BODY

4 860152439    1    EVAPORATIVE CORE

5 860152445    1    NEW WIND GATE

6 860152444    1    ELECTRIC MACHINERY

7 860152440    1    FIXED PLATE

8 860152446    1    AIR FILTER

9 860152447    1    FILTER

10 803595429    1    DRAIN

252117723 COMPRESSOR ASSY

6

3

7    4    2

8    5    1

6

9

12    10

11

252117723 COMPRESSOR ASSY

252120372 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

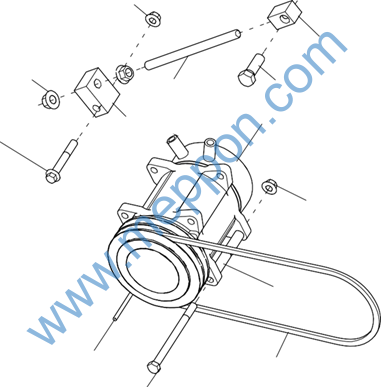

1 803588834    1    COMPRESSOR ASSY

2 252300413    1    FIXED BLOCK

3 252300412    1    BAFFLE

4 252300411    1    ADJUSTMENT BLOCK

5 252300414    2    SPACER

6 805048012    1    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×70    GB/T16674.1-2004

7 805238533    2    NUT 10    GB/T6177.1-2000

8 805204006    2    NUT 12    GB/T6177.1-2000

9 805006415    1    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M14×40    GB/T5783-2000

10 805001934    1    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×130    GB/T5782-2000

11 803590339    1    BELT A17-400

12 252914021    1    LINE

252917032 CONDENSER SUBASSEMBLY

4    3    1

2

252917032 CONDENSER SUBASSEMBLY

252120372 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

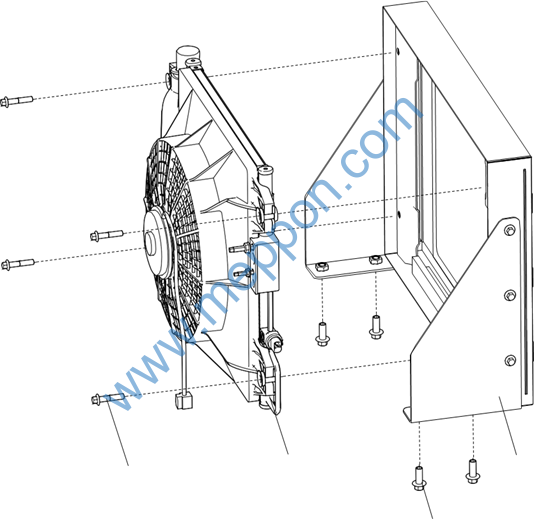

1 252916974    1    CONDENSER BRACKET

2 805004763    4    BOLT M10×25(DACROMET)    GB/T16674.1-2004

3 803594843    1    AIR-CONDITION CONDENSER    320

4 805047999    4    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M8×40    GB/T16674.1-2004

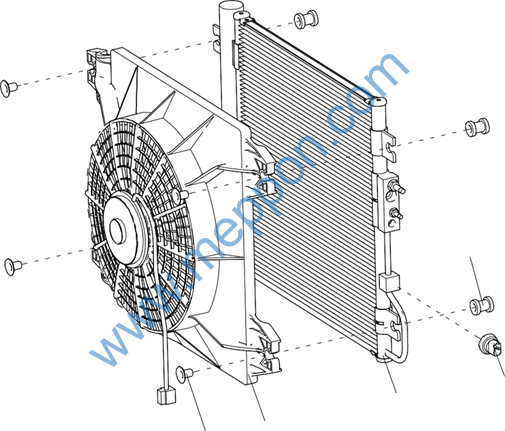

803594843 AIR-CONDITION CONDENSER

4

1    3

5    2
