XCMG ZL50GN WHEEL LOADER PARTS MANUAL 56
|

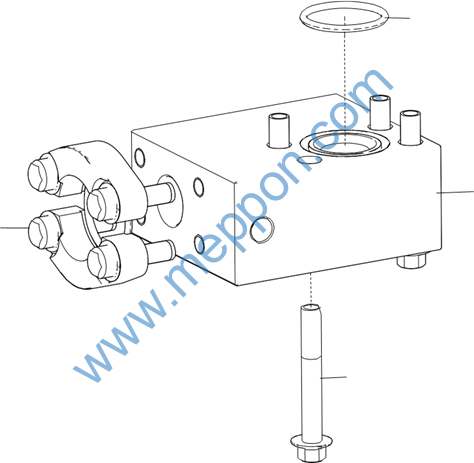

252115395 DISTRIBUTION VALVE OIL INLET BLOCK ASSY 253008147 DISTRIBUTION VALVE OIL INLET BLOCK INSTALLATION ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
BE115×100×85-F24- 1 252115396 1 JOINT BLOCK F20-M33×2-(F24) |
|
2 803164756 1 SPLICE |
|
252911080 FLANGE |
|
1
2 |
|
252911080 FLANGE 252911981 STEERING PUMP OIL OUTLET BLOCK ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803164828 1 FLANGE |
|
2 803401130 1 ORING37.69×3.53 222N552-90 |
|
3 805048007 4 BOLT M10×35 GB/T16674.1-2004 |
|
252909967 PIPE CLIP ASSEMBLY |
|
4
2
1 |
|

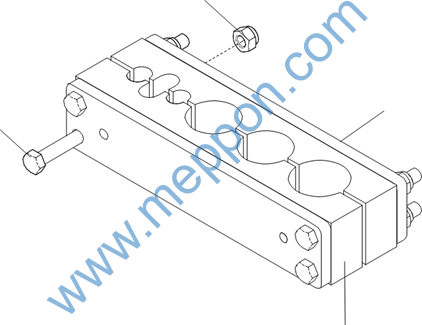

252909967 PIPE CLIP ASSEMBLY 252116539 ARTICULATED PIPELINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252113739 2 RUBBER PRESSING PLATE |
|
2 252909547 2 RETAINER FLEX-PLATE |
|
3 805000674 4 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×110 GB/T5782-2000 |
|
4 805200080 4 NUT M10 GB/T889.1-2000 |
|
252911981 STEERING PUMP OIL OUTLET BLOCK ASSY |
|
2
1
3 |
|

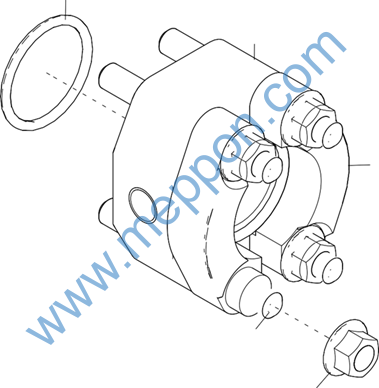

252911981 STEERING PUMP OIL OUTLET BLOCK ASSY 252116539 ARTICULATED PIPELINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252910043 1 BLOCK |
|
2 803401130 1 ORING37.69×3.53 222N552-90 |
|
3 805048012 4 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×70 GB/T16674.1-2004 |
|
252911080 FLANGE |
|
1
2 |
|

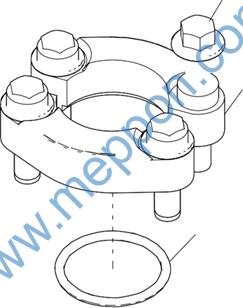

252911080 FLANGE 252911981 STEERING PUMP OIL OUTLET BLOCK ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803164828 1 FLANGE |
|
2 803401130 1 ORING37.69×3.53 222N552-90 |
|
3 805048007 4 BOLT M10×35 GB/T16674.1-2004 |
|
252911986 WORKING PUMP OIL OUTLET BLOCK ASSY |
|
1
2
4
5 |
