252911986 WORKING PUMP OIL OUTLET BLOCK ASSY

252116539 ARTICULATED PIPELINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 269901947    1    PRESSURE MEASUREMENT FLANGE

2 803164828    1    FLANGE

3 803401130    2    ORING37.69×3.53    222N552-90

4 805002828    4    SCREW M10×85    GB/T901-1988

5 805238533    4    NUT 10    GB/T6177.1-2000

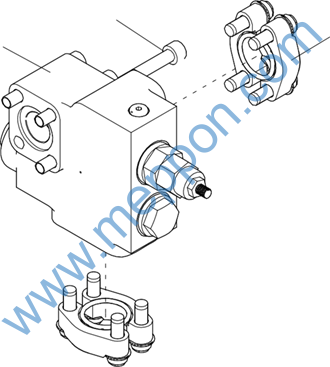

252913180 UNLOADING VALVE

3

1    2

252913180 UNLOADING VALVE

252116539 ARTICULATED PIPELINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803089320    1    UNLOADING VALVE

2 252911069    2    FLANGE    564

3 805100088    4    SCREW    GB/T70.1-2000

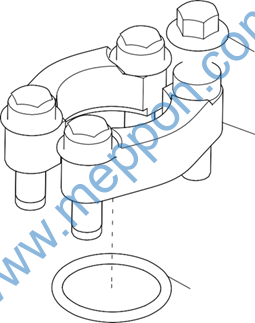

252911069 FLANGE

2

1

3

252911069 FLANGE

252913180 UNLOADING VALVE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803164234    1    FLANGE

2 805048006    4    BOLT M10×30    GB/T16674.1-2004

3 803401127    1    ORING32.92×3.53    219N552-90

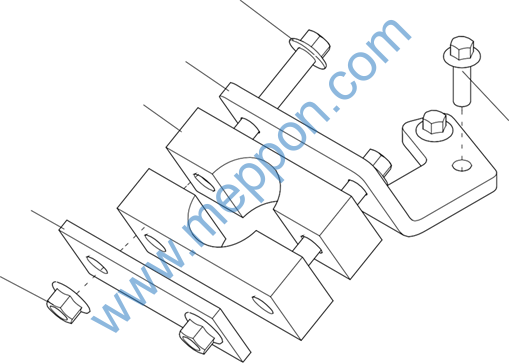

252909514 CLAMP ASSEMBLY

4

1

2

5

3

6

252909514 CLAMP ASSEMBLY

252116539 ARTICULATED PIPELINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252908371    1    BRACKET

2 250500112    2    PLATE

3 250500111    1    RETAINER FLEX-PLATE

4 805048013    2    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×75    GB/T16674.1-2004

5 805004717    2    BOLT M8×25    GB/T16674.1-2004

6 805238533    2    NUT 10    GB/T6177.1-2000

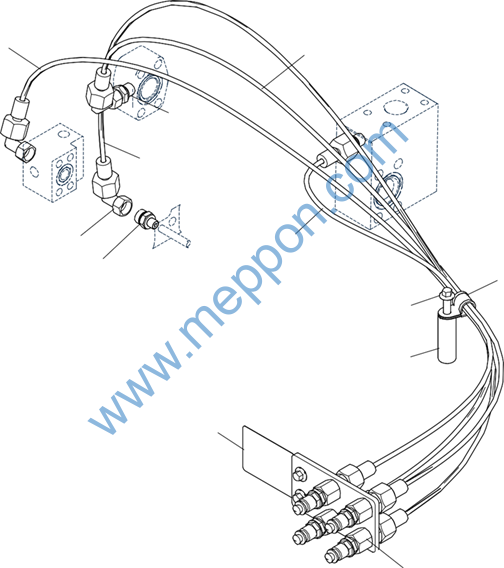

252116540 CENTRAL PRESSURE MEASUREMENT SYSTEM

11    10

2

12

3    9

1    6

7

5

8

4

252116540 CENTRAL PRESSURE MEASUREMENT SYSTEM

252116536 HYDRAULIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803166753    1    SPLICE

2 803103341    3    SPLICE

3 803103351    3    SPLICE

4 253007929    1    PRESSURE GAUGE ADAPTOR INSTALLATION ASSEMBLY    570

5 252912358    1    HOLLOW COLUMN

6 803199325    1    FERRULE Φ16    TJBC

7 805048004    1    BOLT M8×75    GB/T16674.1-2004

8 253101078    1    PRESSURE MEASUREMENT IDENTIFICATION

9 252110315    1    PRESSUREMEASURE HOSE

10 252110317    1    PRESSUREMEASURE HOSE

11 252906068    1    500K.7III.3.1 PRESSUREMEASURE HOSE-1050

12 252110316    1    PRESSUREMEASURE HOSE

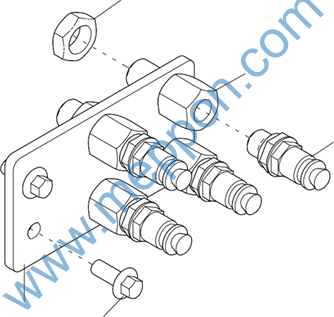

253007929 PRESSURE GAUGE ADAPTOR INSTALLATION ASSEMBLY

3

2

4

1    5
