LAIDONG KM385BT DIESEL ENGINE SPARE PARTS CATALOGUE E

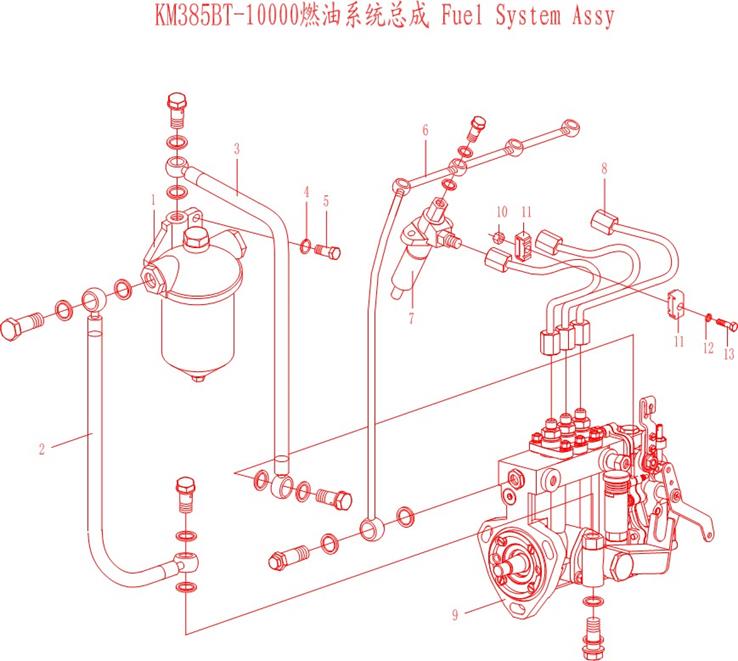

KM385BT 燃油系统总成 Fuel System Assy
|
序号 Ser No |
图号 Parts No |
名称 Name of Parts |
数量 Qty |
备注 Remarks |
|
|
1 |
L375-10500-1 |
燃油滤清器部件 |
Fuel filter |
1 |
|
|
2 |
KM385T-10700 |
输油泵至然油滤清器油管 |
Line from feed pumpto filter |
1 |
|
|
3 |
LL380-10600 |
燃油滤清器至喷油泵油管 |
Line from filter to injection pump |
1 |
|
|
4 |
GB93-87 |
垫圈 8 |
Washer 8 |
1 |
|
|
5 |
GB5783-86 |
螺栓 M8×25 |
Bolt M8×25 |
1 |
|
|
6 |
KM385T-10400 |
回油管部件 |
Fuel return pipe |
1 |
|
|
7 |
KM385T-10300 |
喷油器总成 |
Fuel injector |
3 |
|
|
8 |
KM385T-10200 |
高压油管部件 |
Fuel injection pipe |
1 |
|
|
9 |
KM385BT-10100（3I344） |
三缸 I 号喷油泵总成 |
Three cylinder BQ type injection pump assy |
1 |
|
|
10 |
GB6170-86 |
螺母 M6 |
Nut M6 |
2 |
|
|
11 |
D495QB-10600 |
高压油管锁夹合件 |
Fuel injection pipe clamp |
4 |
|
|
12 |
GB93-87 |
垫圈 6 |
Washer 6 |
2 |
|
|
13 |
GB65-85 |
螺钉 M6×30 |
Screw M6×30 |
2 |
|

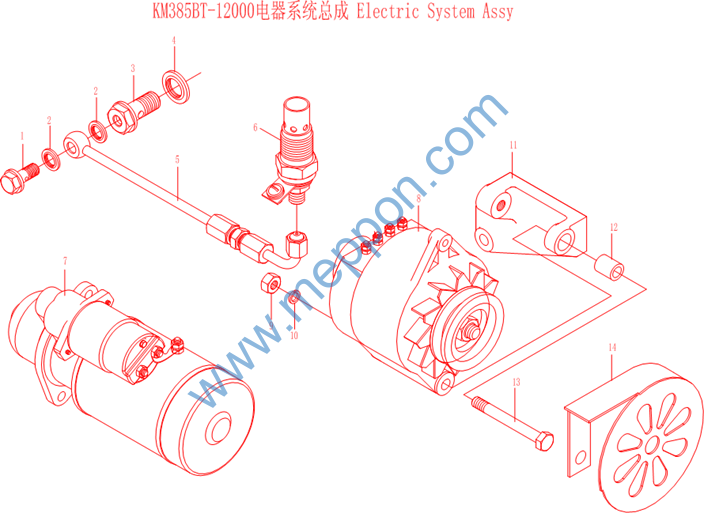

KM385BT 电器系统总成 Electric System Assy
|
序号 Ser No |
图号 Parts No |
名称 |
Name of Parts |
数量 Qty |
备注 Remarks |
|
1 |
KM485QB-12603 |
M8 铰接螺栓 |
Screw M8 |
1 |
|
|
2 |
L375-03017 |
防漏垫圈 |
Antileak washer |
2 |
|
|
3 |
KM485QB-12602 |
M12 铰接螺栓 |
Bolt M12 |
1 |
|
|
4 |
KM485QB-12607 |
φ12 组合垫圈 |
Washerφ12 |
1 |
|
|
5 |
KM485QB-12604-1 |
预热塞输油管 |
Preheat plug oil pipe |
1 |
|
|
6 |
KM485QB-12601 |
预热塞 |
Preheat plug |
1 |
|
|
KM485QB-12600-3 |
预热塞总成 |
Preheat plug assy |
|||
|
7 |
KM385T-12300J |
减速起动电机 |
Starting motor unit |
1 |
|
|
8 |
KM385T-12100-2 |
发电机成 |
Alternator |
1 |
|
|
9 |
GB6170-86 |
螺母 M10 |
Nut M10 |
1 |
|
|
10 |
GB93-87 |
垫圈 10 |
Washer 10 |
1 |
|
|
11 |
KM385T-01028 |
发电机固定支架 |
Alternator fasten support |
1 |
|
|
12 |
L375-01031 |
发电机支架垫套 |
Alternator fasten support bush |
1 |
|
|
13 |
GB5782-86 |
螺栓 M10×100 |
Bolt M8×100 |
1 |
|
|
14 |
KM385T-12110（KM385BT-37 不带） |
发电机安全护罩 |
Alternator safty cover |
1 |
目 录
Cylinder Block Assy(One) 机体总成（一） 1
Cylinder Block Assy(Two) 机体总成（二） 4
Cylinder Block Assy(Three) 机体总成（三） 7
Cylinder Block Assy(Four) 机体总成（三） 9
Cylinder Block Assy(Five) 机体总成（三） 11
Timing Gear and Camshaft Assy 凸轮轴总成 13
Cylinder Head Assy 气缸盖总成 15
Piston-connecting Rod Assy 活塞连杆总成 18
Crankshaft-fly wheel Assy 曲轴飞轮总成 20
Cooling System Assy 冷却系统总成 22
Intake Manifold Assy 进气管总成 24
Exhaust Manifold Assy 排气管总成 26

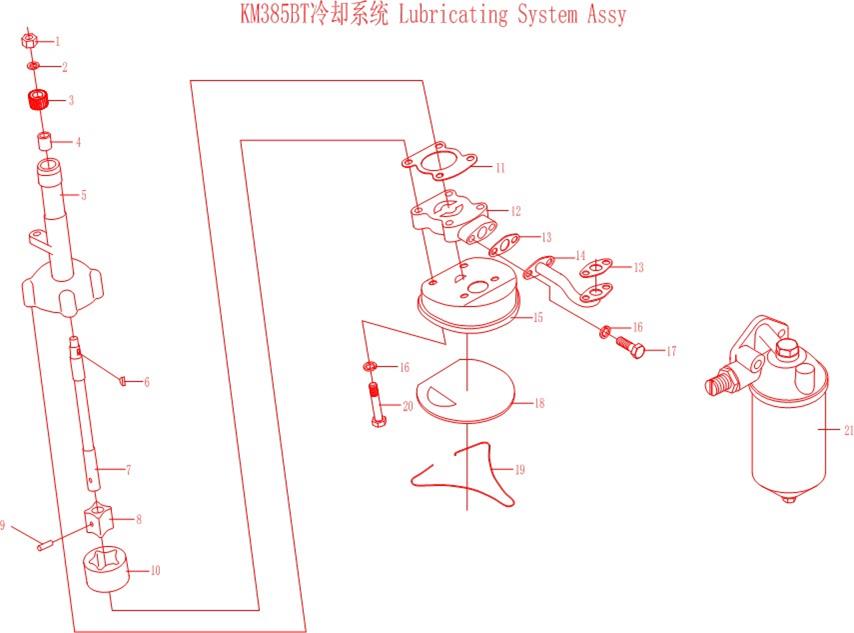

Lubricating System Assy 润滑系统总成 28
Fuel System Assy 燃油系统总成 30
Electric System Assy 电器系统总成 32
编 制 说 明
一、本图册主要供用户订购山东华源莱动内燃机有限公司生产的 KM385BT 柴油机零部件时了解部分结构和装配关系以及件号、型号等，以便准确定货。
二、为了满足用户的不同要求，我公司系列柴油机品种将不断增加，结构也会有些局部改进，因而本图册反映的零部件结构可能会与实物不符,只能等再版时加以改进。改进前不另行通知，望用户见谅。
三、本图册在编制时，由于受时间及水平的限制，因而错误之处在所难免，热情欢迎各位指导错误之处。
INTRODUCTION
This book serves the users as a reference for ordering 7SHLL1.53LDE parts required .In order to make a right supply.please state the name and type of the machine .the date and facturer number of ex-work, and state the name of the part .parts number according to this book when ordering.
It is necessory to improve or revise the construction for meeting the needs of users and reqirements for developing market.The parts in the book are subject to change without notice or may different form country to country.please check with your distributor at the time of placing your order.
If there are some place not very clear or correct . please inform us.
