SINOMACH CHANGLIN ZL75H wheel loader parts catalog 02

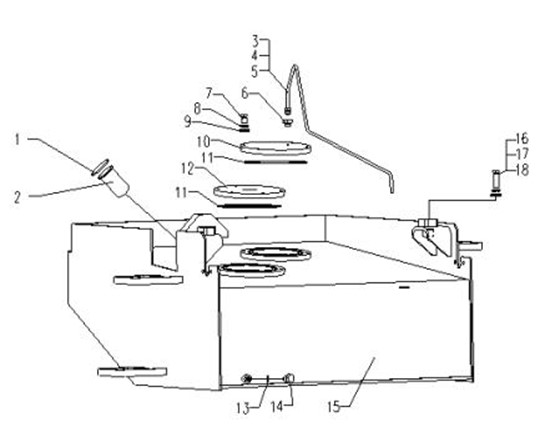

Z75H.1.1 柴油箱总成 Fuel Tank
Z75H.1.1 柴油箱总成 Fuel Tank
|
序号 |
零件代号 |
名 称 |
数量 |
|
|
NO. |
Part No. |
Part Name |
Q’ty |
|
|
1 |
W-02-00034 |
带锁(暗锁)加油口盖|CA-10 Cover |
1 |
|
|
2 |
W-15-00084 |
粗滤器|07056-18416 Filter |
1 |
|
|
3 |
Z75H.1.1.2 |
通气管 |
Hose |
1 |
|
4 |
B-Q020050-00017 |
线夹 A12×40 |
Gripper |
2 |
|
5 |
B-G057830-00003 |
螺拴 M10×20 ZnD Bolt |
2 |
|
|
6 |
Z50B.1-4 |
接头体 |
Joint |
1 |
|
7 |
B-G057830-00006 |
螺拴 M10×25 ZnD Bolt |
12 |
|
|
8 |
B-G000930-00001 |
垫圈 10 |
Gasket |
14 |
|
9 |
B-G00097B-00002 |
垫圈 10ZnD |
Gasket |
14 |
|
10 |
Z75H.1.1-1 |
盖 |
Cover |
1 |
|
11 |
B-Q020710-00123 |
O 形圈 210×5.7 O-ring |
2 |
|
|
12 |
Z75H.1.1-2 |
盖 |
Cover |
1 |
|
13 |
B-J07757B-00001 |
O 形密封圈 S10(26501600) O-ring |
1 |
|
|
14 |
Z50B.1-14 |
螺塞 |
Plug |
1 |
|
15 |
Z75H.1.1.1 |
油箱 |
Tank |
1 |
|
16 |
B-G057850-00051 |
螺栓 M24×2×140-10.9ZnD Bolt |
3 |
|
|
17 |
B-Q020490-00015 |
垫圈 24 |
Gasket |
3 |
|
18 |
B-G000930-00010 |
垫圈 24 |
Gasket |
3 |

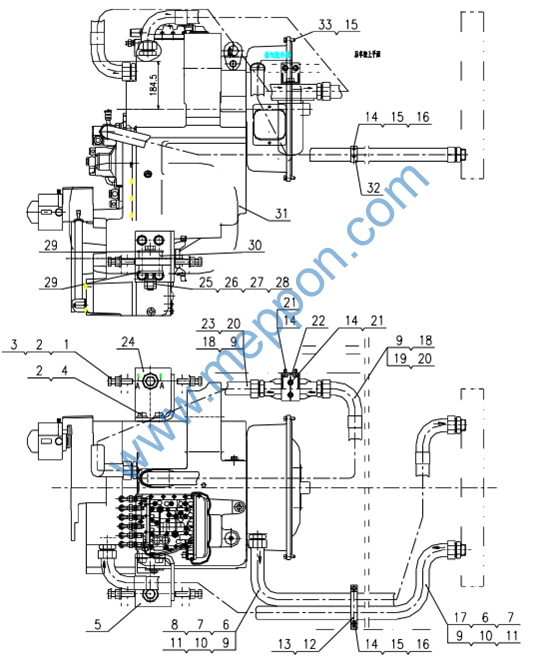

Z75H.4 变速器系统 Transmission System
Z75H.4 变速器系统 Transmission System
|
序号 |
零件代号 |
名称 |
数量 |
|
|
No. |
Part No. |
Part Name |
Q’ty |
|
|
1 |
B-G057830-00178 |
螺栓 M20×90-10.9ZnD Bolt |
4 |
|
|
2 |
B-Q020490-00011 |
垫圈 20 |
Spacer |
12 |
|
3 |
B-G061700-00018 |
螺母 M20ZnD |
Nut |
4 |
|
4 |
B-G057830-00188 |
螺栓 M20×50-10.9ZnD Bolt |
8 |
|
|
5 |
Z75H.4.2 |
左支架 |
L. Bracket |
1 |
|
6 |
Z75H.4.6-1 |
接头体 |
Joint |
2 |
|
7 |
Z75H.4.6-2 |
接头体 |
Joint |
2 |
|
8 |
Z75H.4.7.1 |
胶管接头 |
Hosejoint |
1 |
|
9 |
Z75H.4.4-2 |
O 形圈 38×2.5 O-ring |
6 |
|
|
10 |
B-Q020710-00051 |
O 形圈 32×3.1 O-ring |
4 |
|
|
11 |
B-J010020-00011 |
垫圈 33 |
Spacer |
2 |
|
12 |
Z75H.4-1 |
压板 |
Plate |
1 |
|
13 |
Z75H.4-2 |
橡胶垫 |
Plate |
1 |
|
14 |
B-G057830-00006 |
螺栓 M10×25ZnD Bolt |
8 |
|
|
15 |
B-G000930-00001 |
垫圈 10 |
Spacer |
16 |
|
16 |
B-G00097B-00002 |
垫圈 10ZnD |
Spacer |
4 |
|
17 |
Z75H.4.6.1 |
胶管接头 |
Hosejoint |
1 |
|
18 |
Z75H.4.4-1 |
接头体 |
Joint |
4 |
|
19 |
Z75H.4.5.1 |
胶管接头 |
Hosejoint |
1 |
|
20 |
B-Q020710-00040 |
O 形圈 24×2.4 O-ring |
4 |
|
|
21 |
B-Q020490-00001 |
垫圈 10 |
Spacer |
4 |
|
22 |
Z75H.4.3 |
精滤器支架 |
Bracket |
1 |
|
23 |
Z75H.4.4.1 |
胶管接头 |
Hosejoint |
1 |
|
24 |
Z75H.4.1 |
右支架 |
R.Bracket |
1 |
|
25 |
B-G057850-00036 |
螺栓 M22×1.5×140-10.9ZnD Bolt |
2 |
|
|
26 |
B-Q020490-00013 |
垫圈 22 |
Spacer |
2 |
|
27 |
B-G061710-00017 |
螺母 M22×1.5-10ZnD Nut |
2 |
|
|
28 |
B-G061730-00020 |
螺母 M22×1.5-10ZnD Nut |
2 |
|
|
29 |
Z75H.1-5 |
垫圈 |
Spacer |
4 |
|
30 |
Z75H.1.18 |
缓冲橡胶垫 |
Spacer |
2 |
|
31 |
W-03-00090 |
变速器 4WG308 Transission |
1 |
|
|
32 |
Z75H.4-3 |
支板 |
Bracket |
1 |

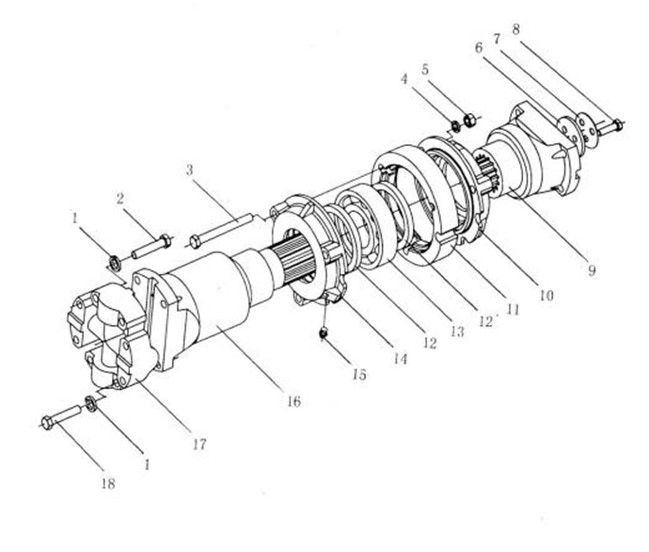

Z75H.5 前传动轴(一) Front Drive Shaft(1)
|
|
Z75H.5 前传动轴(一) Front Drive Shaft(1)
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
|
|
1 |
Z60F.5-5 |
垫圈 |
Washer |
8 |
|
2 |
Z60F.5-1 |
螺栓 |
Bolt |
4 |
|
3 |
B-G057850-00005 |
螺栓 M12×1.5×110 Bolt |
3 |
|
|
4 |
B-G000930-00003 |
垫圈 12 |
Washer |
3 |
|
5 |
B-G061710-00005 |
螺母 M12×1.5 Nut |
3 |
|
|
6 |
85Z.01.3-6 |
垫板 |
Plate |
1 |
|
7 |
85Z.01.3-5 |
锁板 |
Lock spacer |
1 |
|
8 |
B-G057830-00012 |
螺栓 M10×35 Bolt |
3 |
|
|
9 |
花键套叉 Spline spacer |
1 |
||
|
10 |
Z60F.5-4 |
后盖 |
Rear cover |
1 |
|
11 |
Z60F.5-3 |
垫环 |
Ring |
1 |
|
12 |
B-G09877A-00010 |
密封圈 B85×110×12B Seal ring |
2 |
|
|
13 |
B-G002760-00033 |
轴承 6312 |
Bearing |
2 |
|
14 |
Z60F.5-2 |
前盖 |
Front cover |
1 |
|
15 |
B-J07940A-00001 |
油杯 M10×1 Crease fitting |
1 |
|
|
16 |
花键轴叉 Spline shaft |
1 |
||
|
17 |
2V7153 |
万向节总成 Cross shaft ass‘y |
1 |
|
|
18 |
Y2-20VNF-2A |
螺栓 |
Bolt |
4 |
