识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

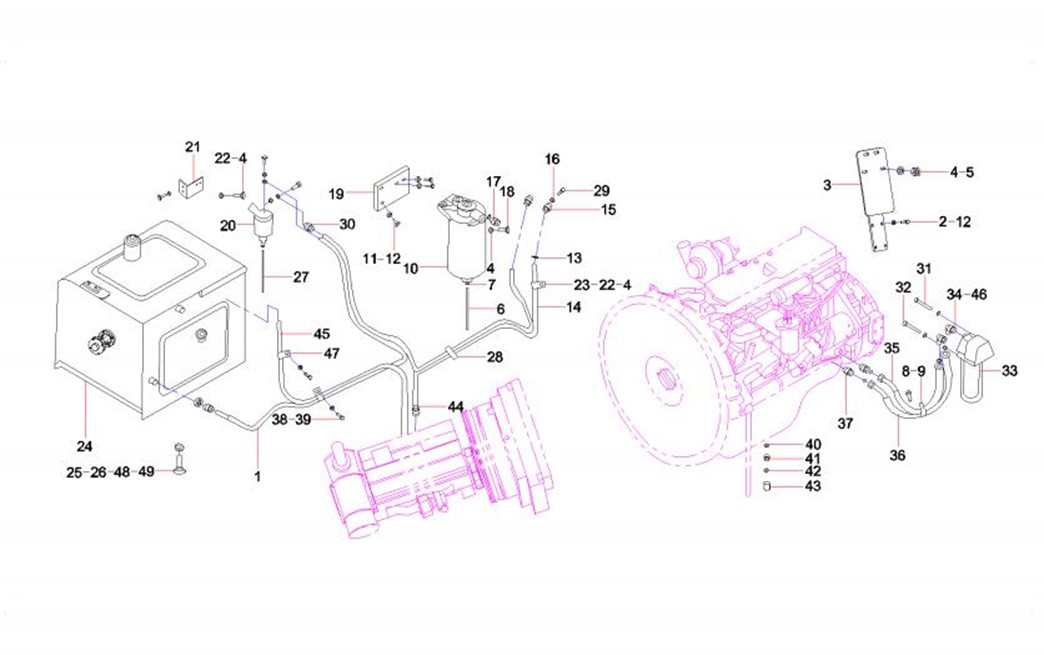

2-25-1

1

12346260

2

燃油胶管

Fuel rubber tube

2-25-2

2

A210111000039

4

螺栓

Bolt

2-25-3

3

12599766

1

机滤支架

Oil filter

2-25-4

4

A210405000011

20

垫圈

Washer

2-25-5

5

A210307000017

4

螺母

Nut

2-25-6

6

10949800

1

放水管

Hose

2-25-7

7

60202895

2

软管环箍φ8- φ16 进口

Clamp, hose

2-25-8

8

12020025

2

管夹

Clamp, pipe

2-25-9

9

A210111000036

4

螺栓

Bolt M12×20(GB5783)

2-25-10

10

60164119

1

柴油滤清器

Filter, diesel fuel

2-25-11

11

A210111000038

9

螺栓

Bolt

2-25-12

12

A210405000001

13

垫圈

Washer

2-25-13

13

60202896

8

软管环箍

Clamp, hose

2-25-14

14

12346261

1

燃油胶管

Fuel rubber tube

2-25-15

15

12264312

4

管接头

Pipe

2-25-16

16

A210434000008

8

垫圈

Washer 16JB982

2-25-17

17

12518432

2

变径接头

Reducer Joint

2-25-18

18

A210111000023

6

螺栓

Bolt

2-25-19

19

12599621

1

柴滤支架

diesel filter

2-25-20

20

B222100000728

1

柴油滤清器

Filter, fuel

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-27-21

21

12680856

1

柴滤支架

Diesel filter bracket

2-27-22

22

A210111000012

10

螺栓 M10×20GB5783 10.9级

Bolt

2-27-23

23

A230200000178

7

线夹

Clamp

2-27-24

24

12079172

1

燃油箱总成

Fuel Tank Assy.

2-27-25

25

A210204000198

6

螺钉M16×35GB70.1 10.9级

Bolt M20×130GB70.1

2-27-26

26

A210491000118

6

垫圈

Washer

2-27-27

27

11127565

1

放水管

Tube, water drain

2-27-28

28

A239900000066

3

尼龙扎带

Strap, nylon (black)

2-27-29

29

A210199000016

4

铰接螺栓

Bolt, articulated

2-27-30

30

12518431

2

变径接头

Reducer

2-27-31

31

A210204000443

2

螺钉

Screw

2-27-32

32

A210204000007

2

螺钉

Bolt

2-27-33

33

B222100000398

1

机油滤清器

Filter, engine oil

2-27-34

34

B210780000028

2

管接头

Pipe connector

2-27-35

35

60190299

1

机油胶管

Hose, engine oil

2-27-36

36

60071652

1

机油胶管1SN20-DKOL-DKOL90-

Hose, engine oil

2-27-37

37

12329107

2

管接头

Pipe connector

2-27-38

38

A210111000089

1

螺栓

Bolt

2-27-39

39

A210405000007

1

垫圈

Washer

2-27-40

40

60006362

1

铜垫圈

Washer, copper

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-29-41

41

11604207

1

放油阀接头

Connector, valve, oil drain

2-29-42

42

60006360

1

铜垫圈

Washer, copper

2-29-43

43

B220401000916

1

放油阀

Valve AS, shut off, engine oil

2-29-44

44

12264311

1

管接头

Pipe connector

2-29-45

45

12346262

1

燃油胶管

Fuel rubber tube

2-29-46

46

A820205000942

2

接头

Connector

2-29-47

47

60086355

1

线束固定夹

Clamp, harness

2-29-48

48

13226723

6

垫片

spacer SY365CCI2KH.1.3.5-16

2-29-49

49

13204251

6

垫片

spacerSY365CCI2KH.1.3.5-15

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

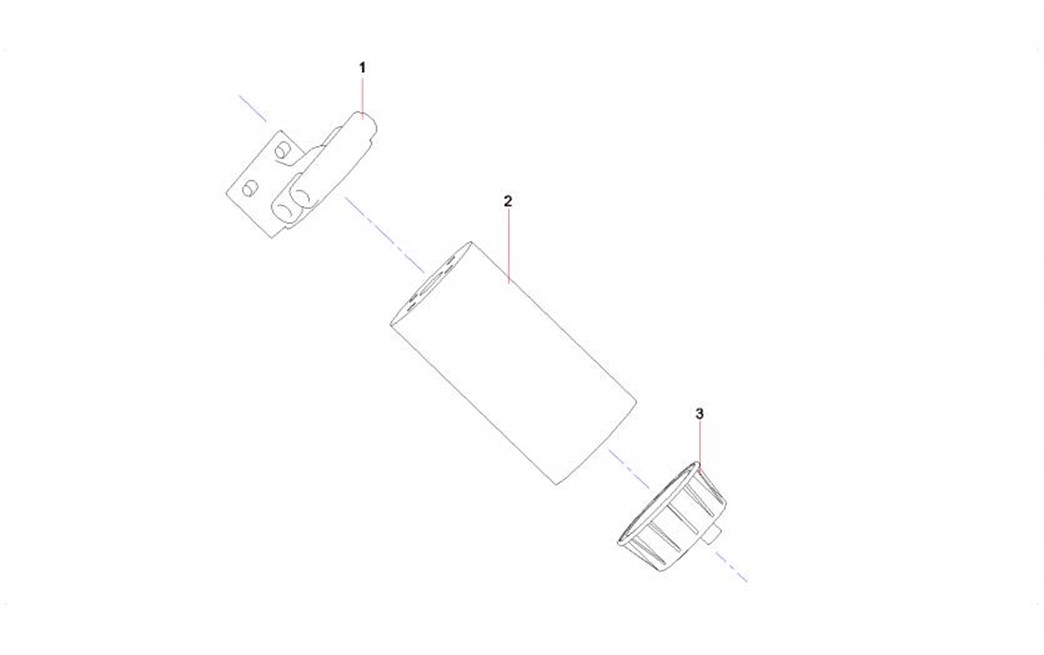

2-31-1

1

60176276

1

安装座

Seat, mounting

2-31-2

2

B222100000766

1

柴油滤清器

Filter, diesel

2-31-3

3

60176266

1

集水杯

Cup

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

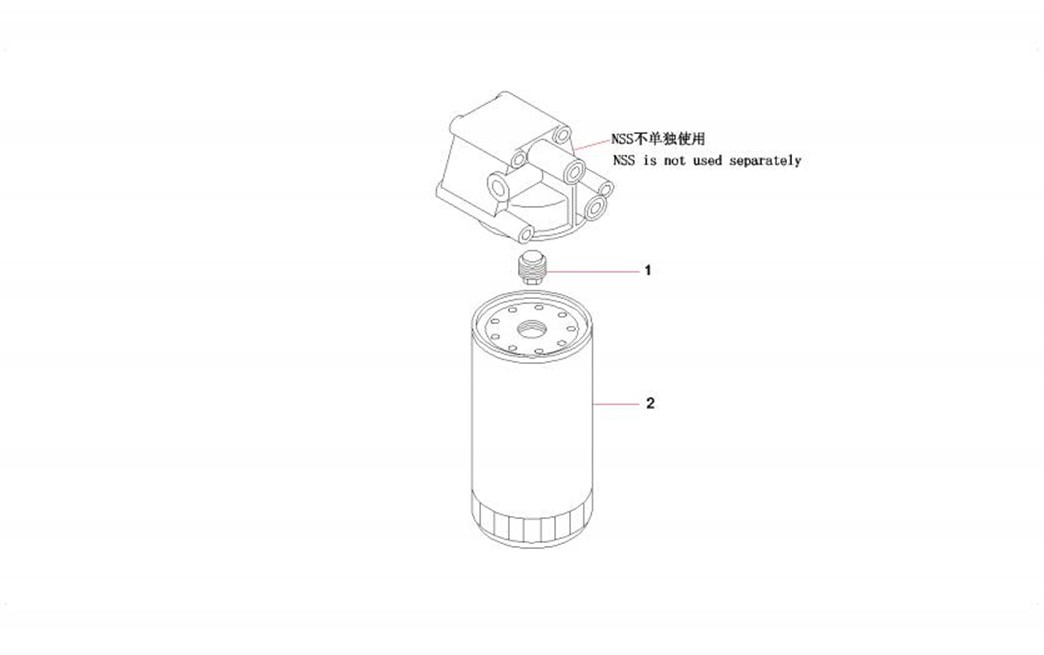

2-33-1

1

B222100000729

1

柴油滤清器

Filter, fuel

2-33-2

2

60134597

1

支架组件

support component

2-33-3

3

60176265

1

集水杯

Cup, water collection

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

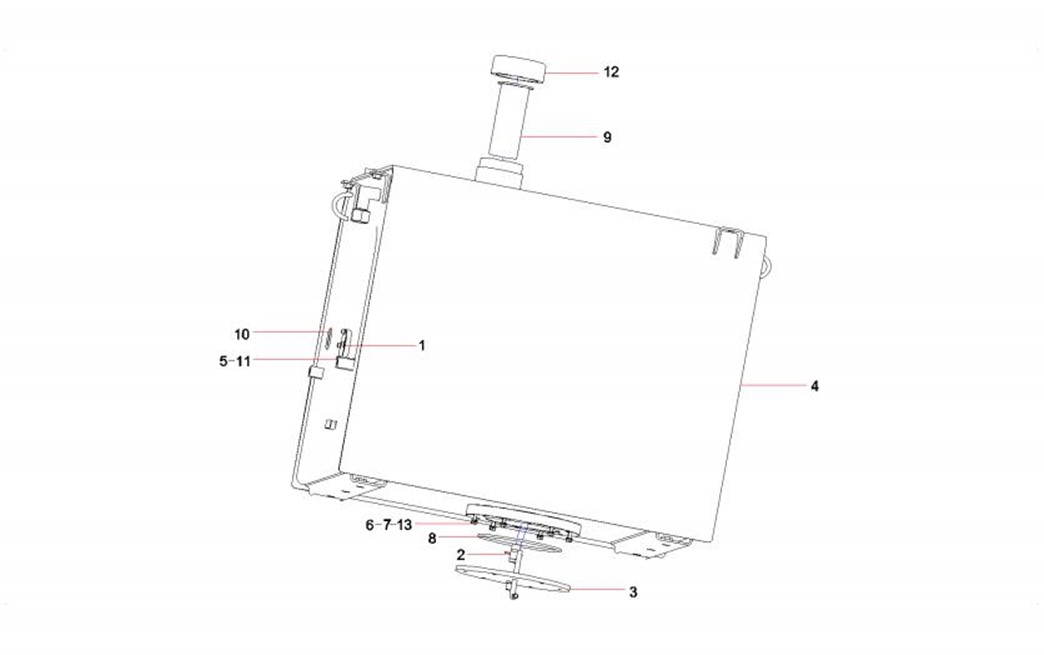

2-35-1

1

60029642

1

液位传感器

Sensor GP, fuel level

2-35-2

2

A229900000882

1

阀

Valve

2-35-3

3

12254116

1

底盖总成

Bottom Cap

2-35-4

4

12079168

1

燃油箱

Fuel tank

2-35-5

5

A210405000006

4

垫圈

Washer

2-35-6

6

A210401000017

6

垫圈

Washer

2-35-7

7

A210405000007

6

垫圈

Washer

2-35-8

8

A210609000025

1

O形圈

O-ring

2-35-9

9

60117826

1

燃油箱滤网

Strainer AS, fuel (float gauge)

2-35-10

10

B230101000457

1

O形圈

O-ring

2-35-11

11

A210204000129

4

螺钉

Screw

2-35-12

12

A290000002193

1

燃油箱锁盖

Lock cover，fuel tank

2-35-13

13

A210111000090

6

螺栓

Bolt
